06E103148M Cylinder Head Gasket
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

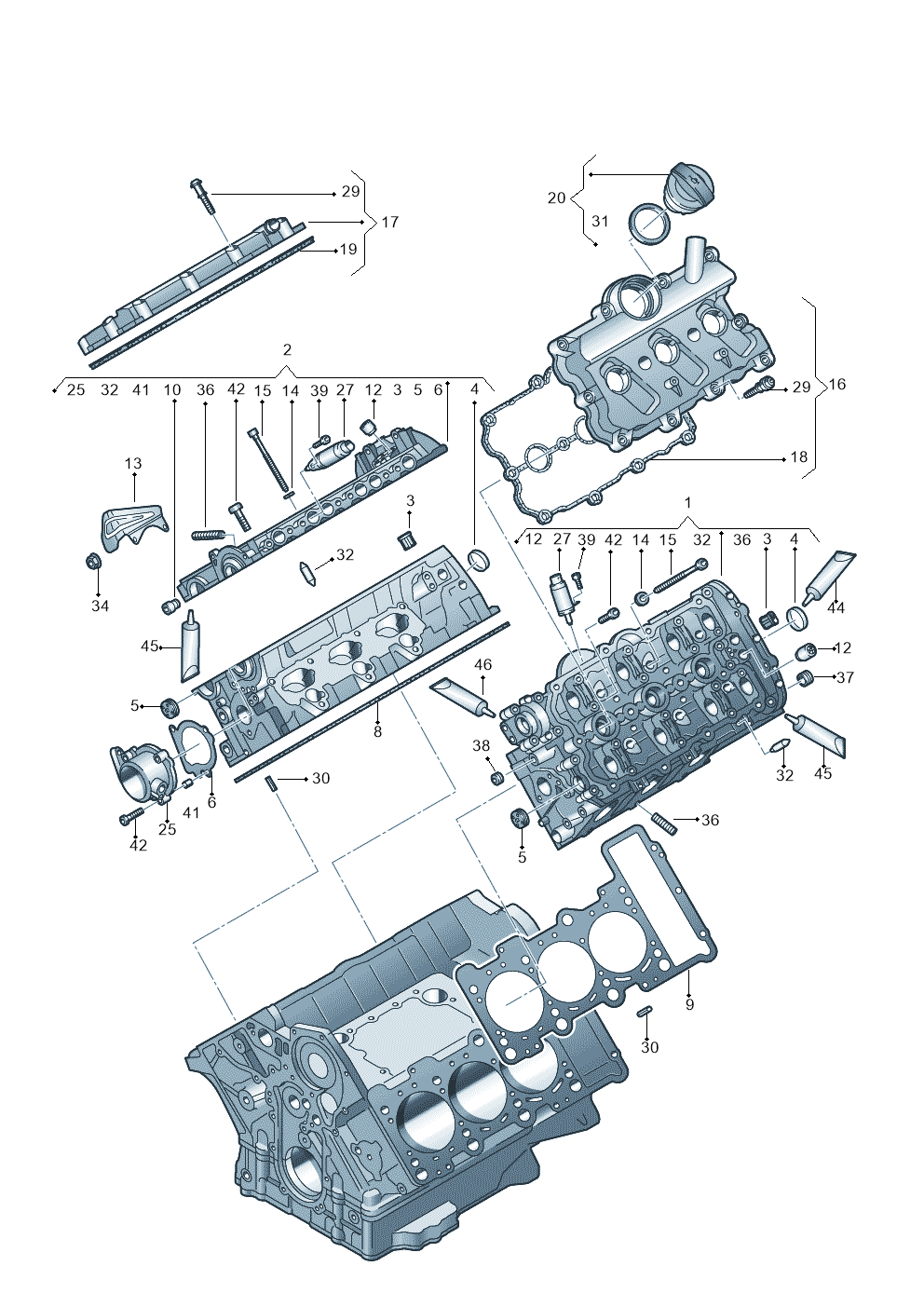

11 vehiclesCylinder Head Gasket — locate Cylinder Head Gasket in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Cylinder Head 06E103903BX
- 1Cylinder Head 06E103067AE
- 2Cylinder Head 06E103904BX
- 2Cylinder Head 06E103068AE
- 3Strainer 06C103081
- 4Cover 036103113A
- 5Cover 06B103113C
- 9Seal 06E103149M
- 10Nozzle 06E103154C
- 14Washer 06D103377
- 15Bolt 06E103385
- 16Cover 06E103471P
- 17Cover 06E103472N
- 18Seal 06E103483P
- 19Seal 06E103484N
- 20Cover 06C103485N
- 25Housing 06E103535A
- 27Adjuster 06E103697G
- 29Bolt 06B103831J
- 30Part 055105277
- 31Seal 036115111B
- 36Bolt N0145555
- 39Screw N10622502
- 41Sleeve N91020801
- 42Stud WHT003269
- 42Bolt N91127602
- 45Seal D174003A2
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A7 Sportback | 2010-2015 | 8 | 1 | D05 |
| audi a6 2.0 tdi | 2010-2015 | 8 | 1 | D05 |
| Audi A6 2.7 TDI | 2008-2011 | 8, 5 | 1 | DB2 |
| Audi A8/S8/qu. lang 08> | 2007- | 8, 5 | 1 | DB5 |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 5 | 1 | D2G |
| AUDI A6 QU.ALLROAD 07> | 2006- | 5 | 1 | D2G |
| Audi A4/S4/Av./qu. 05> | 2005- | 5 | 1 | D2G |
| Audi A6/S6/Avant/qu. 05> | 2004- | 8, 5 | 1 | D5C |
| Audi A8/S8/qu. lang | 2003-2007 | 5 | 1 | D62 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 L 2.0 | 2011-2013 | 8 | 1 | DB3 |
| AUDI A6L "CN"05> | 2005- | 8, 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head Gasket is fitted on: Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A6 2.7 TDI 2008-2011; Audi A8/S8/qu. lang 08> 2007-; Audi A4/S4 Cabrio./qu. 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007; Audi A6 L 2.0 2011-2013; AUDI A6L "CN"05> 2005-.
