06E109623 Valve Spring
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

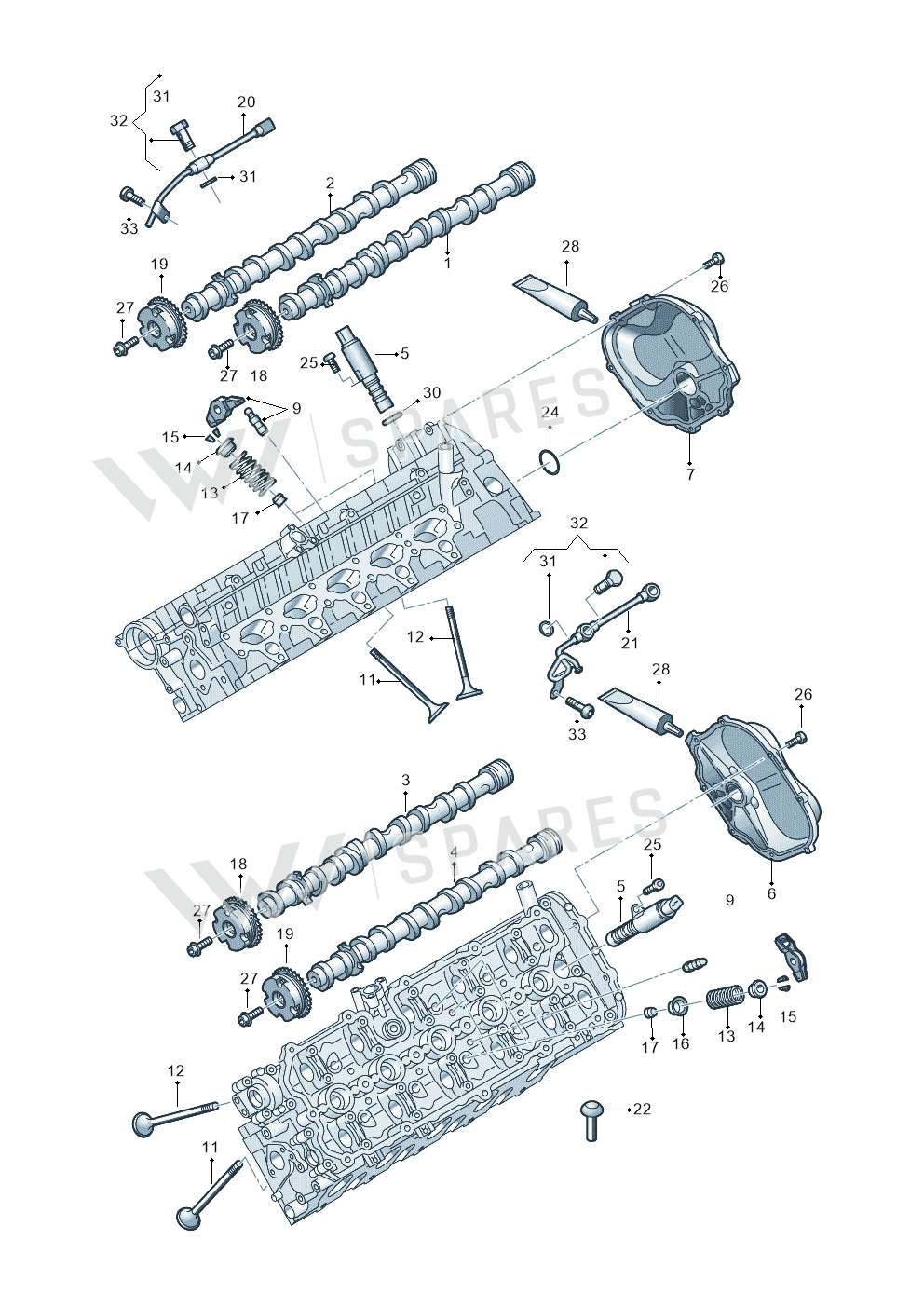

14 vehiclesValve Spring — locate Valve Spring in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Camshaft 07L109101BQ
- 1Camshaft 07L109101BS
- 2Camshaft 07L109102AN
- 2Camshaft 07L109102AT
- 3Camshaft 07L109103AP
- 3Camshaft 07L109103AR
- 4Camshaft 07L109104AB
- 4Camshaft 07L109104Q
- 5Valve 07L109257
- 6CoverLeft07L109285K
- 7CoverRight07L109286M
- 9Roller Roc 079109409B
- 9Roller Roc 07L109409B
- 9Roller Roc 07L109409C
- 11Valve 079109601E
- 11Valve 07L109601H
- 11Valve 07L109601K
- 12Part 07L109611D
- 12Valve 07L109611E
- 12Part 07L109611H
- 13Spring 06E109623AH
- 13Spring 07L109623J
- 14Springseat 06E109641A
- 14Springseat 07L109641G
- 15Cotter Pin 036109651
- 15Cotter Pin 07L109651
- 16Support 07L109629A
- 16Support 07L109629F
- 17Seal 057109675
- 18Adjuster 07L109083F
- 18Adjuster 07L109083H
- 19Adjuster 07L109084E
- 19Adjuster 07L109084G
- 20Water PipeRight07L121455L
- 21Water PipeLeft07L121455J
- 25Bolt N91068201
- 26Bolt N91068001
- 27Bolt N91042802
- 28Seal D176501A1
- 30Seal Ring WHT002789
- 31Seal Ring N0138063
- 32Screw N0210756
- 33Bolt WHT005227
Vehicle fitment table14
Europe (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi R8 Spyder | 2015-2024 | 13 | 40 | CS | |
| Leon ST Stylance | 2012-2016 | 7 | 8 | ||
| Audi RS4 Av. qu. 4.2 | 2012-2015 | 27 | 32 | D59 | |
| Audi R8 qu. 5.2 | 2012-2015 | 27, 13 | 32 | DH6 | |
| Audi RS5 Cabrio | 2012-2015 | 27 | 32 | D59 | |
| Audi RS5 Coupe | 2010-2015 | 27 | 32 | D59 | |
| Audi A6 2.7 TDI | 2008-2011 | 13 | 40 | D75 | |
| Audi RS4 Cabrio qu. 08> | 2007- | 27 | 32 | D0W | |
| Audi R8 08> | 2007- | 27, 13 | 32 | D0W | |
| Audi A8/S8/qu. lang 08> | 2007- | 13 | 40 | D5W | |
| Audi RS4 qu. 07> | 2006- | 27 | 32 | D0W | |
| Audi Q7 07> | 2006- | 27 | 32 | MN5 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 13 | 40 | D75 | |
| Audi A8/S8/qu. lang | 2003-2007 | 13 | 40 | D5W |
Diagrams & fitment data powered by oemdiagrams.com
Valve Spring is fitted on: Audi R8 Spyder 2015-2024; Leon ST Stylance 2012-2016; Audi RS4 Av. qu. 4.2 2012-2015; Audi R8 qu. 5.2 2012-2015; Audi RS5 Cabrio 2012-2015; Audi RS5 Coupe 2010-2015; Audi A6 2.7 TDI 2008-2011; Audi RS4 Cabrio qu. 08> 2007-; Audi R8 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; Audi RS4 qu. 07> 2006-; Audi Q7 07> 2006-; Audi A6/S6/Avant/qu. 05> 2004-; Audi A8/S8/qu. lang 2003-2007.
