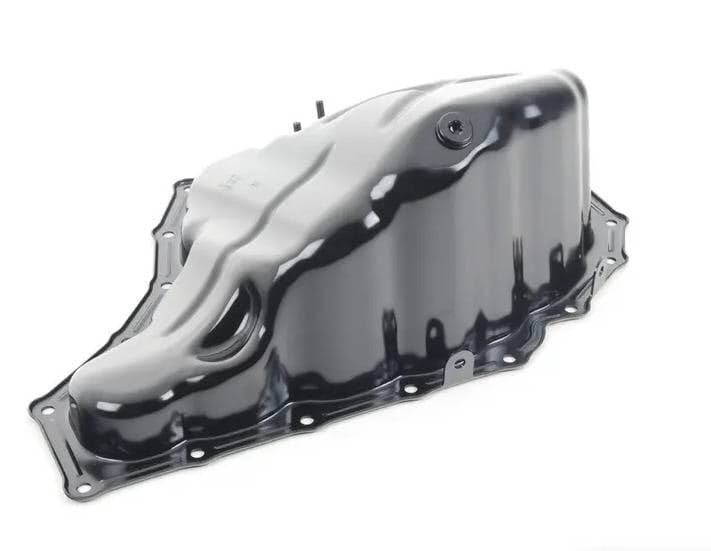

Genuine OEM Audi Engine Oil Pan, part number 06H103600AA. This essential component serves as a reservoir for the engine's lubricating oil, collecting it after it circulates through the engine. It is mounted at the bottom of the engine block. Weighing approximately 1.8 kg, it is typically made from stamped steel or cast aluminum. A genuine OEM oil pan ensures a perfect seal, proper oil capacity, and the correct baffling to prevent oil starvation during vehicle operation.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 30 × 18 cm
- Shipping weight
- 1.8 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesOil Sump-lower Part — locate 06H103600AA Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Crankcase 06H103011AN
- 1Crankcase 06H103011H
- 2Seal 06H103085G
- 3Part 026103139
- 4Vent 06J103154B
- 4Vent 06J103154
- 5Flange 06H103171F
- 6Cover 06H103113
- 7Sleeve 022103139B
- 8Oil Sump 06H103600R
- 9Oil Sump 06H103603S
- 10Cover 038103647AB
- 11Insert 06H103138D
- 11Insert 06H103138E
- 12Valve 06H103156
- 13Seal 06J103147
- 14Bolt N91096701
- 15Case 06H109210Q
- 16Bungs 06H115418D
- 17Tube 06H115610B
- 17Tube 06H115610E
- 18Chn Sprckt 06H103319Q
- 19Shaft 06H103559
- 19Shaft 06H103559A
- 23Seal 06H103085J
- 24Separator 06H103464L
- 25Seal 06H103517D
- 26Pipe 06H103199K
- 27Repair Kit 06H198205E
- 30Pulley 06H103731F
- 31Protection 06H109121G
- 33Seal Ring WHT001905
- 40Screw N10544904
- 45Cover N0119104
- 46Cover N01190110
- 46Cover N0119019
- 47Cover N0119078
- 48Collar Nut N01508213
- 50Part N10617101
- 51Bolt N10156206
- 52Bolt N10124304
- 52Bolt N10196103
- 53Cover N90982902
- 54Screw N91048802
- 55Screw N91050601
- 56Seal Ring N91056801
- 56Seal Ring WHT003463
- 57Screw N91187501
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8L qu. 3.0 TDI | 2013-2018 | 8 | 1 | D69 |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 1, 8 | 1 | D2D |
| Audi A5 Sportback | 2011-2017 | 1 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 1 | ||
| audi a4 av. 2.0 tdi | 2011-2015 | 1 | 1 | D2S |
| audi a6 2.0 tdi | 2010-2015 | 8 | 1 | |
| Audi A8L qu. 3.0 TDI | 2009-2014 | 8 | 1 | D69 |
| Audi A4 Av. Allroad | 2008-2016 | 8, 1 | 1 | D2D |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 8 | 1 | |
| Audi A5 Cabrio 2.0 | 2008-2012 | 8 | 1 | D67 |
| Audi A5/S5 Coupe 08> | 2007- | 8 | 1 | D6J |
| AUDI A4 08> | 2007- | 8 | 1 | D2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 L 2.0 | 2011-2013 | 1 | 1 | D64 |
Diagrams & fitment data powered by oemdiagrams.com
06H103600AA Audi Engine Oil Pan | Genuine OEM is fitted on: Audi A8L qu. 3.0 TDI 2013-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi A4 Av. Allroad 2008-2016; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A6 L 2.0 2011-2013.
