06K145778AE Oil Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

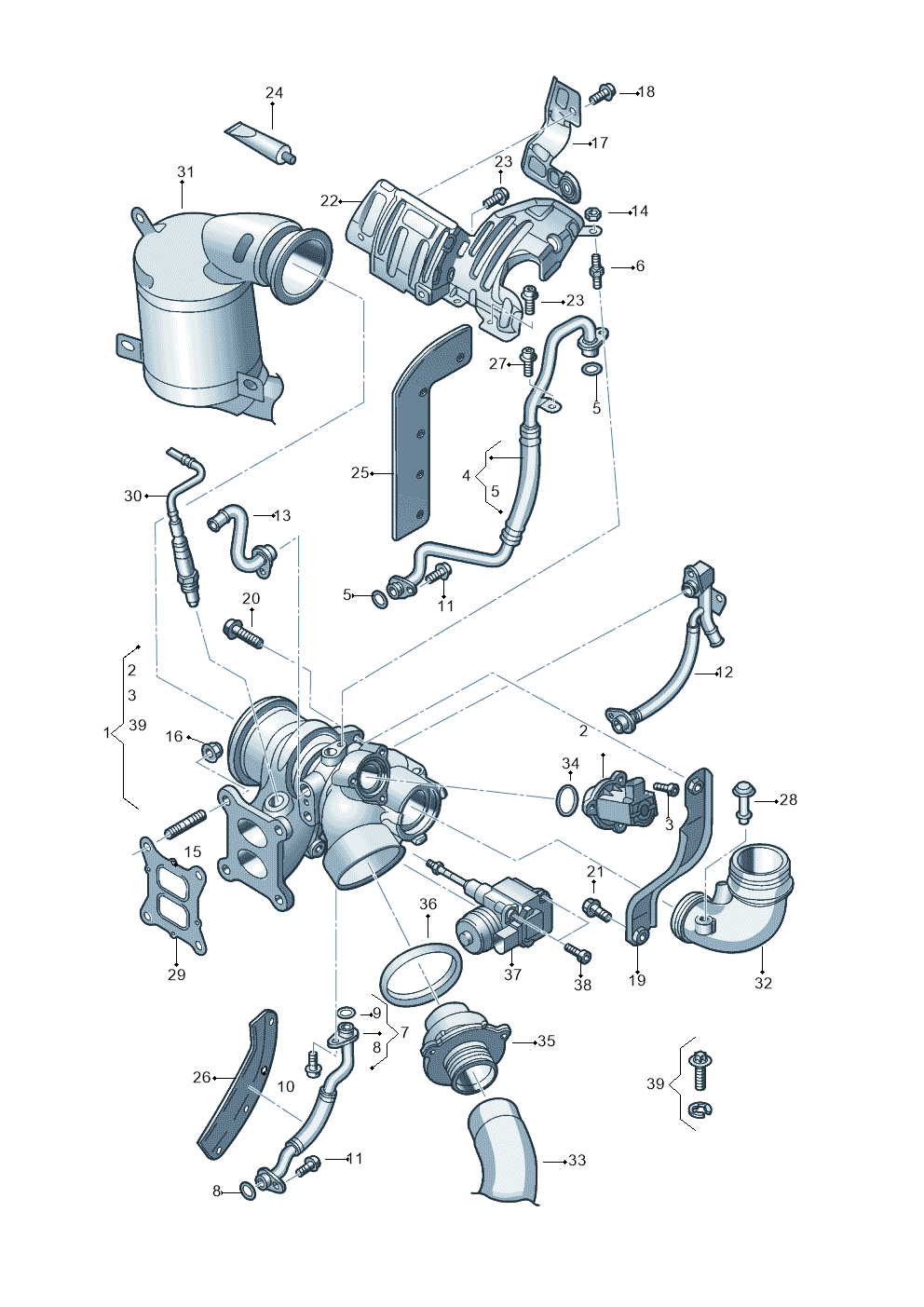

30 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Turbo 06K145654M
- 1Turbo 06K145654Q
- 1Turbo 06K145654L
- 1Turbo 06K145654LX
- 2Valve 06H145710C
- 2Valve 06H145710J
- 3Bolt N10546404
- 5Seal Ring N90067202
- 6Bolt N91044801
- 6Bolt N91044802
- 7Oil Line 06K145735T
- 8Seal Ring WHT006112
- 9Seal Ring WHT006113
- 10Screw N10619201
- 14Collar Nut N01508210
- 15Bolt N91231701
- 16Part WHT007210
- 17Cover 06K129598B
- 17Cover 06K129598J
- 19Support 06K145536A
- 20Bolt WHT008385
- 21Screw N91104901
- 22Heat Sh 06K129596C
- 22Cover 06K129597N
- 23Screw N10114806
- 24Paste G052112A3
- 25Heat Insul 06K133833BL
- 26Heat Insul 06K133833CA
- 28Bolt WHT008373A
- 29Seal 06L253039
- 34Seal Ring 06E145117A
Vehicle fitment table30
Europe (25)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A1 sportback 1.0 | 2018- | 4 | 1 |
| Tarraco FR | 2018-2024 | 4 | 1 |
| Kodiaq | 2018-2022 | 4 | 1 |
| Audi Q3 quattro | 2018-2019 | 4 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 4 | 1 |
| Polo 1.0 BlueMotion | 2017-2024 | 4 | 1 |
| Arteon | 2017-2023 | 4 | 1 |
| Karoq | 2017-2022 | 4 | 1 |
| Octavia | 2017-2020 | 4 | 1 |
| Ateca Style | 2016- | 4 | 1 |
| Kodiaq | 2016-2024 | 4 | 1 |
| golf 2.0 | 2016-2020 | 4 | 1 |
| Audi A3 Sportback | 2016-2020 | 4 | |
| Audi A3 Cabrio | 2016-2020 | 4 | 1 |
| Leon ST Stylance | 2016-2020 | 4 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 4 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 4 | 1 |
| Superb Combi | 2015-2024 | 4 | 1 |
| Sharan BlueMotion | 2015-2022 | 4 | 1 |
| Passat saloon | 2014-2024 | 4 | 1 |
| Audi TTS Coupe 2.0 | 2014-2023 | 4 | |
| Audi A1 Sportback | 2014-2018 | 4 | |
| Polo 1.4 BlueMotion | 2014-2017 | 4 | 1 |
| Golf Estate | 2013-2017 | 4 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 4 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 4 | 1 |
| Atlas | 2016-2023 | 4 | 1 |
| Tiguan 2.0 4Motion | 2016-2022 | 4 | 1 |
| Audi A3 Limousine 2.0 | 2015-2016 | 4 | 1 |
| POLO HATCH "ZA"06> | 2005- | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pipe is fitted on: Audi A1 sportback 1.0 2018-; Tarraco FR 2018-2024; Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Kodiaq 2016-2024; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Sharan BlueMotion 2015-2022; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023; Audi A1 Sportback 2014-2018; Polo 1.4 BlueMotion 2014-2017; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017; Jetta 1.4 2017-2024; Atlas 2016-2023; Tiguan 2.0 4Motion 2016-2022; Audi A3 Limousine 2.0 2015-2016; POLO HATCH "ZA"06> 2005-.
