06L109257D Control Valve
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

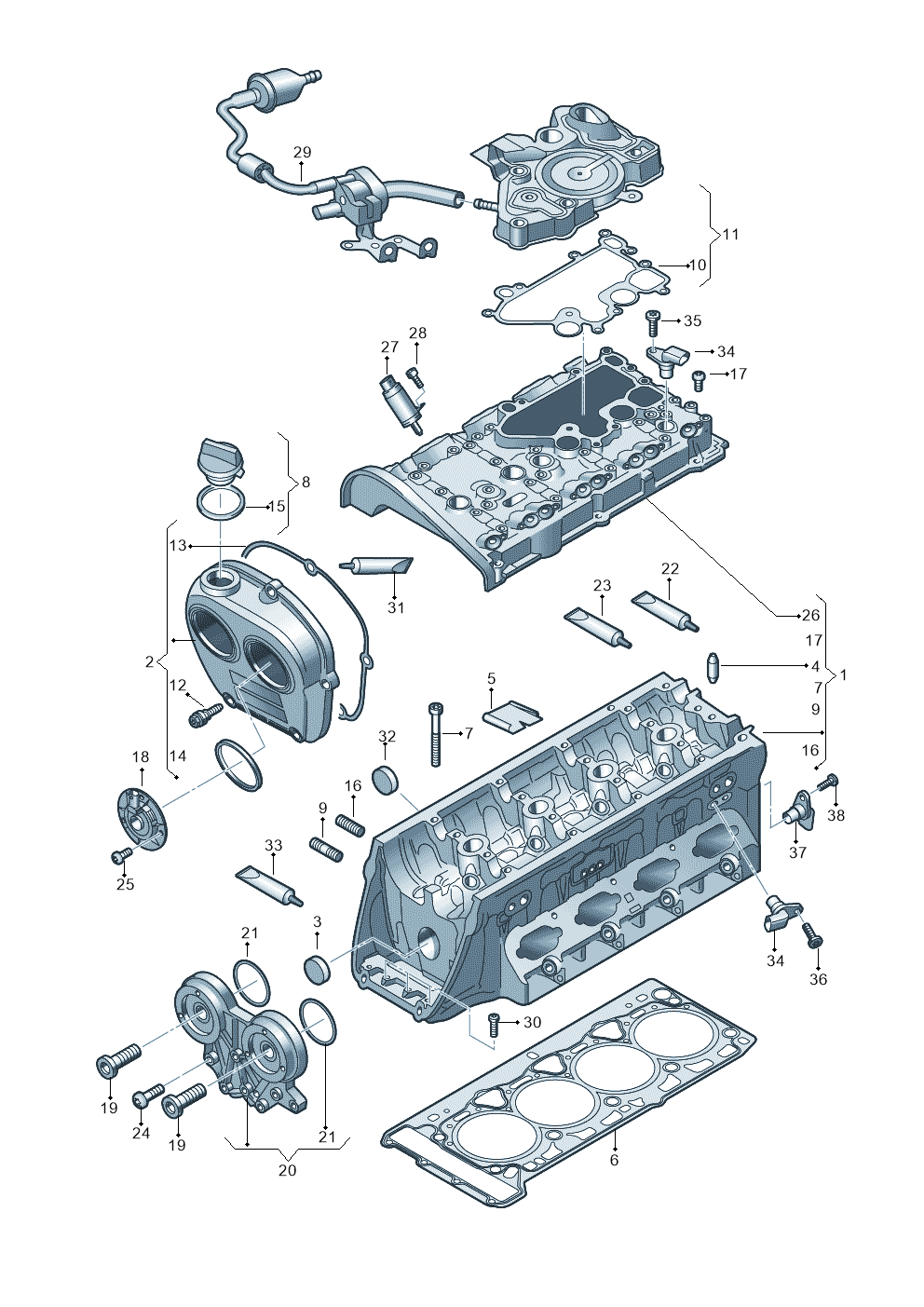

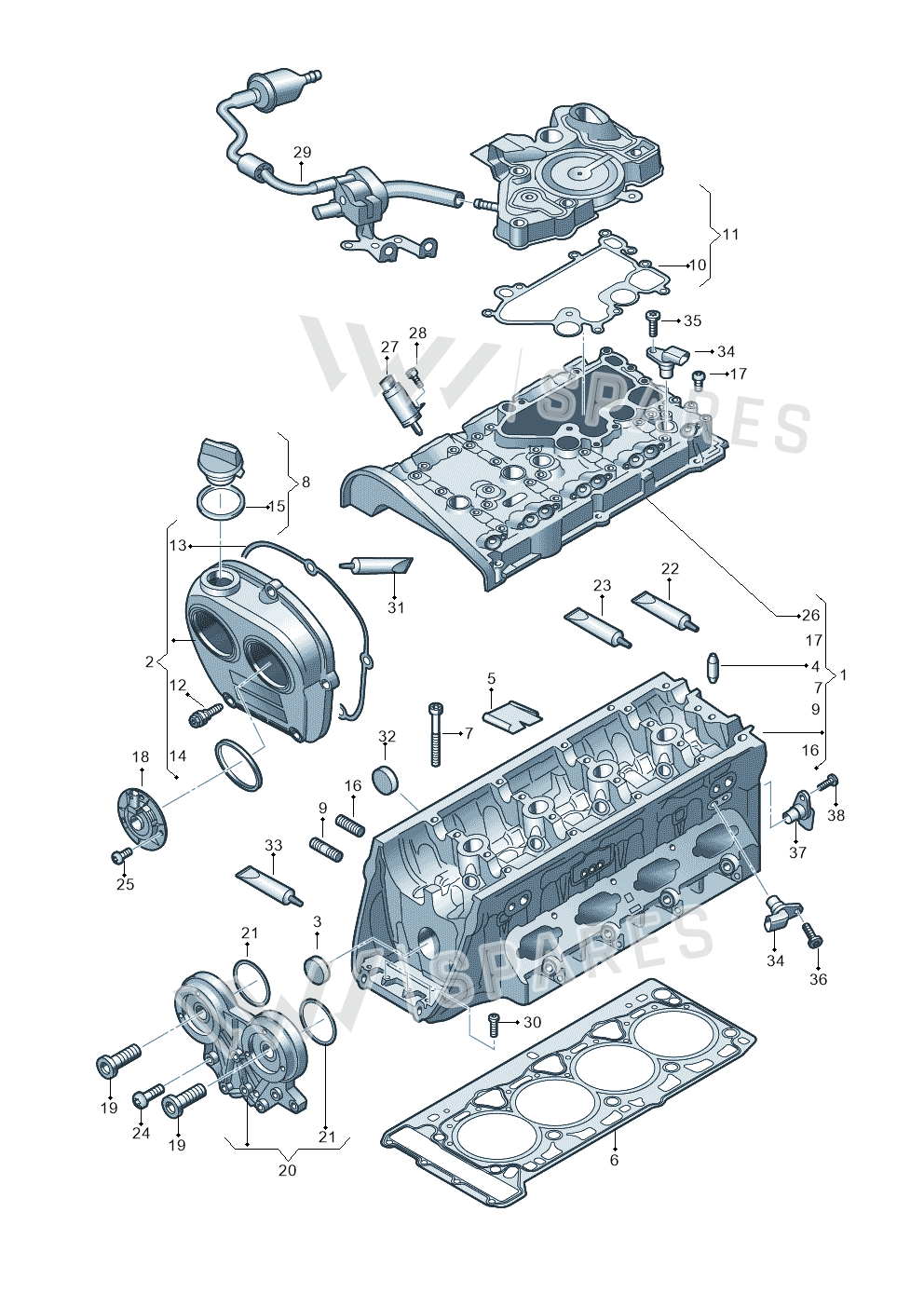

44 vehiclesControl Valve — locate Control Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Cylinder Head 06K103063CL
- 1Cylinder Head 06K103063CB
- 1Cylinder Head 06K103063AE
- 1Cylinder Head 06K103264EX
- 2Cover 06K103269F
- 3Cover 036103113A
- 3Cover WHT008983
- 4Part 06D103251
- 5Partition 06L103411A
- 5Partition 06L103411G
- 6Seal 06K103383K
- 7Bolt WHT005305B
- 7Bolt WHT009271
- 8Cover 06K103485C
- 8Cover 06K103485D
- 9Bolt N91145003
- 10Seal 06K103484F
- 11Separator 06K103495BL
- 12Bolt 06J103831
- 13Seal 06K103483
- 14Seal 06K103583
- 16Bolt N10770201
- 17Screw N10554005
- 18Magnet 06L109259D
- 19Valve 06L109257G
- 19Valve 06L109257H
- 20Bracket 06L103144H
- 20Bracket 06L103144K
- 21Seal Ring WHT007212B
- 21Seal Ring WHT007212
- 22Locking D000600A2
- 23Seal D176501A1
- 24Screw N91232801
- 25Bolt N10451405
- 25Bolt N10451409
- 27Adjuster 06E103697AE
- 27Adjuster 06E103697L
- 27Adjuster 06E103697Q
- 28Screw N10622502
- 30Bolt N10156206
- 30Bolt N10156207
- 31Seal D174003M2
- 32Cover N0119079
- 33Locking D200002A1
- 33Sealant D154108A2
- 34Part 04C907601
- 35Bolt N10654902
- 37Sensor 079919525M
Vehicle fitment table44
Europe (42)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| audi a6 2.0 | 2018- | 19 | 2 | |
| Audi A7 Sportback | 2018- | 19 | 2 | |
| Audi Q3 quattro | 2018-2019 | 19 | 2 | |
| touareg | 2017-2023 | 19 | 2 | |
| Arteon | 2017-2023 | 19 | 2 | |
| Octavia | 2017-2020 | 19 | 2 | |
| Ateca Style | 2016- | 19 | 2 | |
| Tiguan 2.0 4Motion | 2016-2024 | 19 | 2 | |
| Audi A3 Sportback | 2016-2020 | 19 | 2 | |
| Audi A3 Cabrio | 2016-2020 | 19 | 2 | |
| Audi A5 Sportback | 2016-2020 | 19 | 2 | |
| golf 2.0 | 2016-2020 | 19 | 2 | |
| Leon ST Stylance | 2016-2020 | 19 | 2 | |
| Audi Q2 2.0 TDI | 2016-2018 | 19 | 2 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 19 | 2 | |
| Ibiza Stylance | 2015- | 19 | 2 | |
| Touran 2,0 BlueMotion | 2015-2024 | 19 | 2 | |
| Superb Combi | 2015-2024 | 19 | 2 | |
| Sharan BlueMotion | 2015-2022 | 19 | 2 | |
| Alhambra Stylance | 2015-2022 | 19 | 2 | |
| audi a4 2.0 | 2015-2019 | 19 | 2 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 19 | 2 | |
| Passat saloon | 2014-2024 | 19 | 2 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 19 | 2 | |
| Audi Q3 2.0 TDI | 2014-2019 | 19 | 2 | |
| Audi A7 Sportback | 2014-2018 | 19 | 2 | |
| Audi A1 Sportback | 2014-2018 | 19 | 2 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 19 | 2 | |
| Polo 1.4 BlueMotion | 2014-2017 | 19 | 2 | |
| Scirocco 2.0 | 2014-2017 | 19 | 2 | |
| Audi A8L qu. 3.0 TDI | 2013-2018 | 19 | 2 | |
| Golf Estate | 2013-2017 | 19 | 2 | |
| Audi A3 Cab. 1.4 | 2013-2016 | 19 | 2 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 19 | 2 | |
| Golf 1.4 BlueMotion | 2012-2017 | 19 | 2 | |
| Octavia | 2012-2017 | 19 | 2 | |
| Audi A3 Sportback | 2012-2016 | 19 | 2 | DF4 |
| Leon ST Stylance | 2012-2016 | 19 | 2 | |
| Audi A5 Sportback | 2011-2017 | 19 | 2 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 19 | 2 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 19 | 2 | D6J |
| Audi A4 Av. Allroad | 2008-2016 | 19 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 19 | 2 | |
| Audi A3 Limousine 2.0 | 2015-2016 | 19 | 2 | D60 |
Diagrams & fitment data powered by oemdiagrams.com
Control Valve is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi Q3 quattro 2018-2019; touareg 2017-2023; Arteon 2017-2023; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi A5 Sportback 2016-2020; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Audi A5 Cabrio 2.0 2016-2018; Ibiza Stylance 2015-; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Audi A7 Sportback 2014-2018; Audi A1 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Polo 1.4 BlueMotion 2014-2017; Scirocco 2.0 2014-2017; Audi A8L qu. 3.0 TDI 2013-2018; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Audi Q5 qu. 2.0 TDI 2012-2017; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A4 Av. Allroad 2008-2016; Tiguan 2.0 4Motion 2016-2022; Audi A3 Limousine 2.0 2015-2016.
