06L133583B Connecting Hose
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

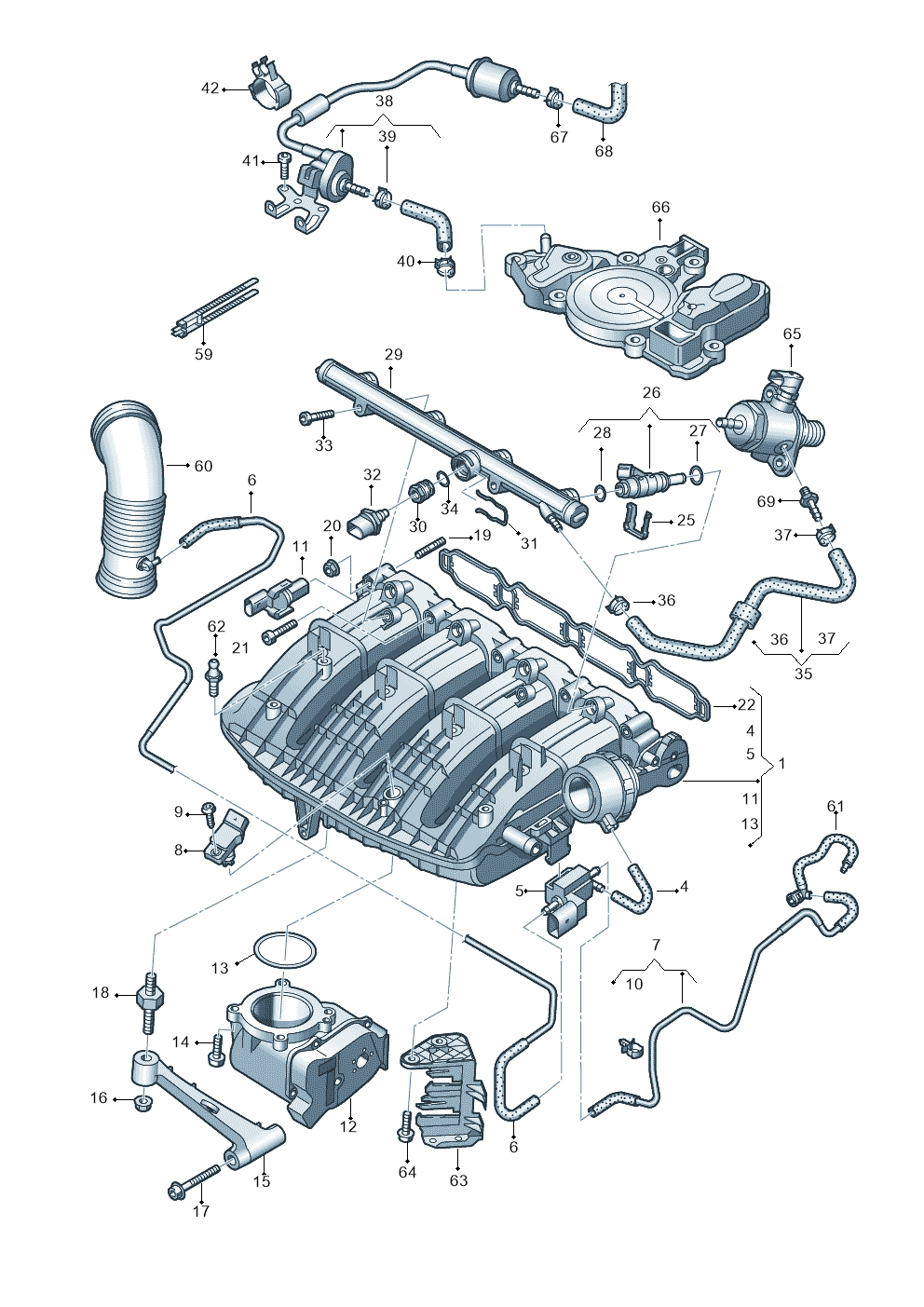

10 vehiclesConnecting Hose — locate Connecting Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Intake Man 06L133201N
- 5Valve 06H906283E
- 7Hose 06K133241E
- 8Sensor 038906051N
- 9Bolt N90732103
- 11Sensor 06K907386B
- 12Adapter 06F133062Q
- 13Seal 06K133073
- 14Bolt N10626101
- 15Support 06L129723B
- 16Collar Nut N10609203
- 17Screw N91170301
- 18Rubber Bush 06H121273D
- 19Bolt N10770201
- 20Collar Nut N01508210
- 21Bolt N91097301
- 22Seal 06K129717A
- 25Clip 06L906037
- 26Valve 06L906031A
- 27Seal Ring 06A906149B
- 28Seal Ring 035906149A
- 29Part 06K133681C
- 29Rail 06K133681A
- 30Part 06K127813B
- 30Adapter 06K127813
- 31Clip 06K133047
- 32Sensor 06H906051G
- 33Bolt N10582102
- 34Seal Ring N91056801
- 34Seal Ring WHT005568
- 35Fuel Line 06K133986K
- 36Clamp 3C0131483
- 37Clamp N90986501
- 38Pipe 06L133781M
- 39Clamp N90686701
- 40Clamp N10108301
- 41Bolt N10654902
- 42Bracket 06L133689
- 59Binder 4A0820199
Vehicle fitment table10
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 6 | 1 | |
| Audi A3 Sportback | 2012-2016 | 6 | 1 | |
| Leon ST Stylance | 2012-2016 | 6 | 1 | TT6 |
| Audi A5 Sportback | 2011-2017 | 6 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 6 | 1 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 6 | 1 | |
| Audi Q5 qu. 2.0 | 2009-2018 | 6 | 1 | |
| Audi A4 Av. Allroad | 2008-2016 | 6 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| audi a6 1.8 | 2015-2019 | 6 | 1 | |
| Audi A4L 2.0 | 2008-2012 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Hose is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi Q5 qu. 2.0 2009-2018; Audi A4 Av. Allroad 2008-2016; audi a6 1.8 2015-2019; Audi A4L 2.0 2008-2012.
