06M121083M Coolant Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

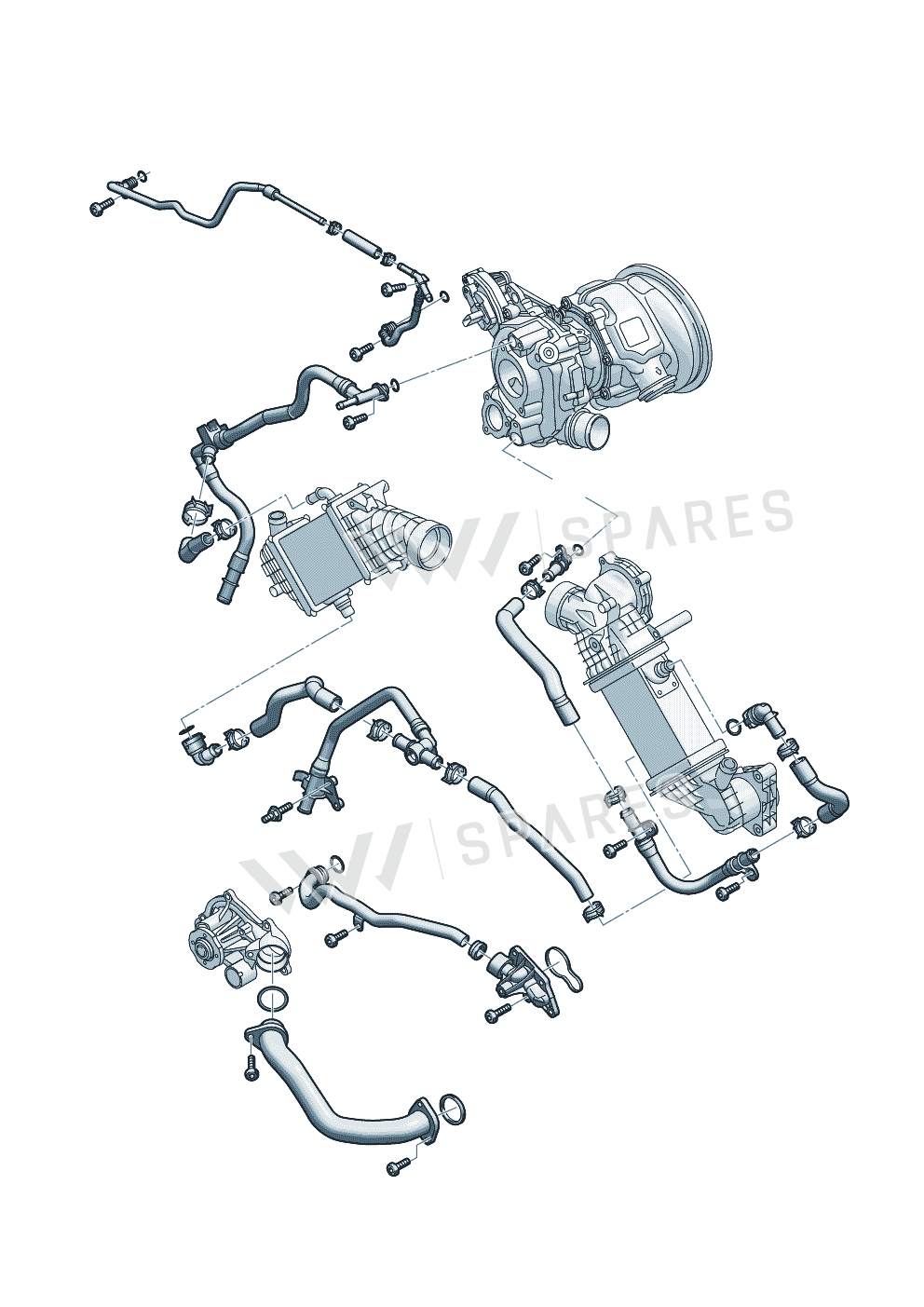

2 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Line 06M121692BE
- 2Hose 06M121611E
- 3Seal Ring WHT007689
- 4Clamp N90686701
- 5Bolt N10451405
- 7Hose 06M121691F
- 16Seal Ring WHT005652B
- 17Seal 06M121171
- 19Bolt N10405604
- 20Adapter 06M121340C
- 21Seal 06M121539
- 22Bolt N10124306
- 25Water Pipe 06M121481AL
- 26Seal Ring WHT007920
- 27Seal 06M121091
- 30Water Pipe 06M122480D
- 31Hose 06M122060H
- 32Hose 06M122061H
- 33Coupl Piece 06M122293A
- 34Seal Ring WHT009244
- 35Clamp N90686901
- 36Clamp N90926401
- 37Bolt N91148001
- 40Water Pipe 06M122484F
- 41Hose 06M122062H
- 42Seal Ring WHT001011B
- 50Water Pipe 06M122483L
- 51Hose 06M122063N
- 52Hose 06M122919G
- 53Adapter 06M121352B
- 54Seal Ring WHT001011C
- 58Clamp 4G0423875
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 15 | 1 |
| Audi A5 Avant 2.0 | 2024- | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-.
