078103101AT Cylinder Block With Pistons
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

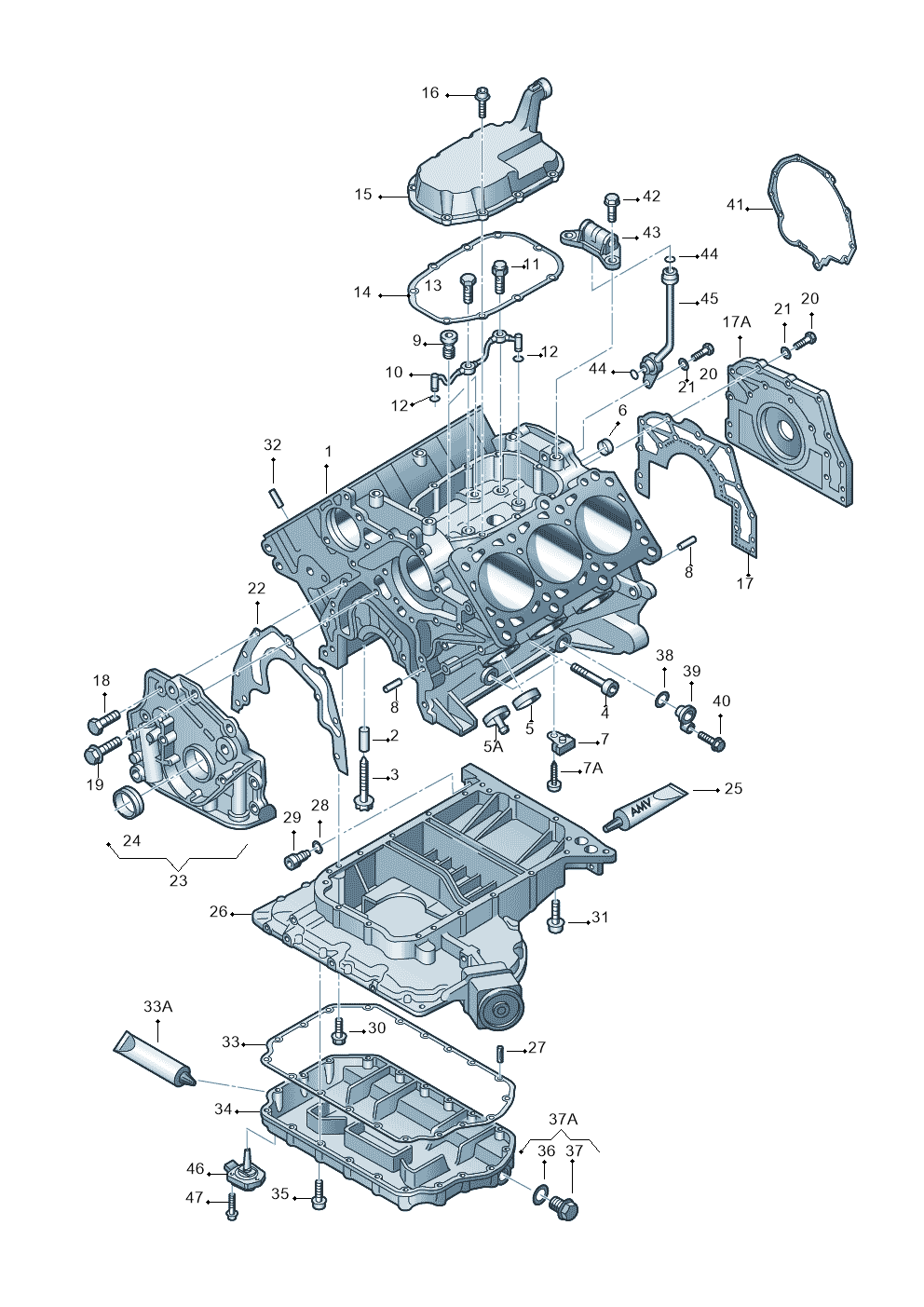

4 vehiclesCylinder Block With Pistons — locate Cylinder Block With Pistons in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 3Bolt 078103039F
- 4Screw N10238803
- 5Cover 059103113
- 6Cover N0119033
- 7Vent 078103158C
- 7AScrew N10169902
- 8Part N0432072
- 9Valve 059103175F
- 11Vent 078115540F
- 12Seal Ring N90740801
- 13Screw 078115431E
- 14Trim 078103547F
- 15Ventilatio 078103773F
- 16Screw N10227803
- 17AFlange 078103171L
- 18Bolt N10063602
- 19Bolt 059103531A
- 20Bolt N01021513
- 21Washer N01152423
- 22Seal 078115189H
- 23Flange 078103151C
- 24Seal 038103085G
- 25Seal DCN176600Z1
- 26Oil Sump 078103603AM
- 27Part 055105277
- 28Seal Ring N90041102
- 29Screw 078121951A
- 30Bolt N90851701
- 31Screw N0903782
- 34Repair Kit 078198604
- 34Oil Sump 078103604AA
- 35Bolt N90824401
- 37ABolt N90813202
- 38Seal Ring N90500101
- 39Screw N0160292
- 39Cover 078103113D
- 40Bolt N0902612
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT 00> | 2000- | 1 | N | |
| Audi A8 | 1996-1998 | 1 | 1 | |
| Audi A8 qu. | 1996-1998 | 1 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 1 | N |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block With Pistons is fitted on: PASSAT 00> 2000-; Audi A8 1996-1998; Audi A8 qu. 1996-1998; PASSAT LINGYU "CN."06> 2005-.
