07P103469D Cylinder Head Cover
- 07P103469DThis pageNot stocked
Aug 2015 - 07P103469FNot stocked
Aug 2015 - 07P103469GNot stocked
Sep 2018 - 07P103469KCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

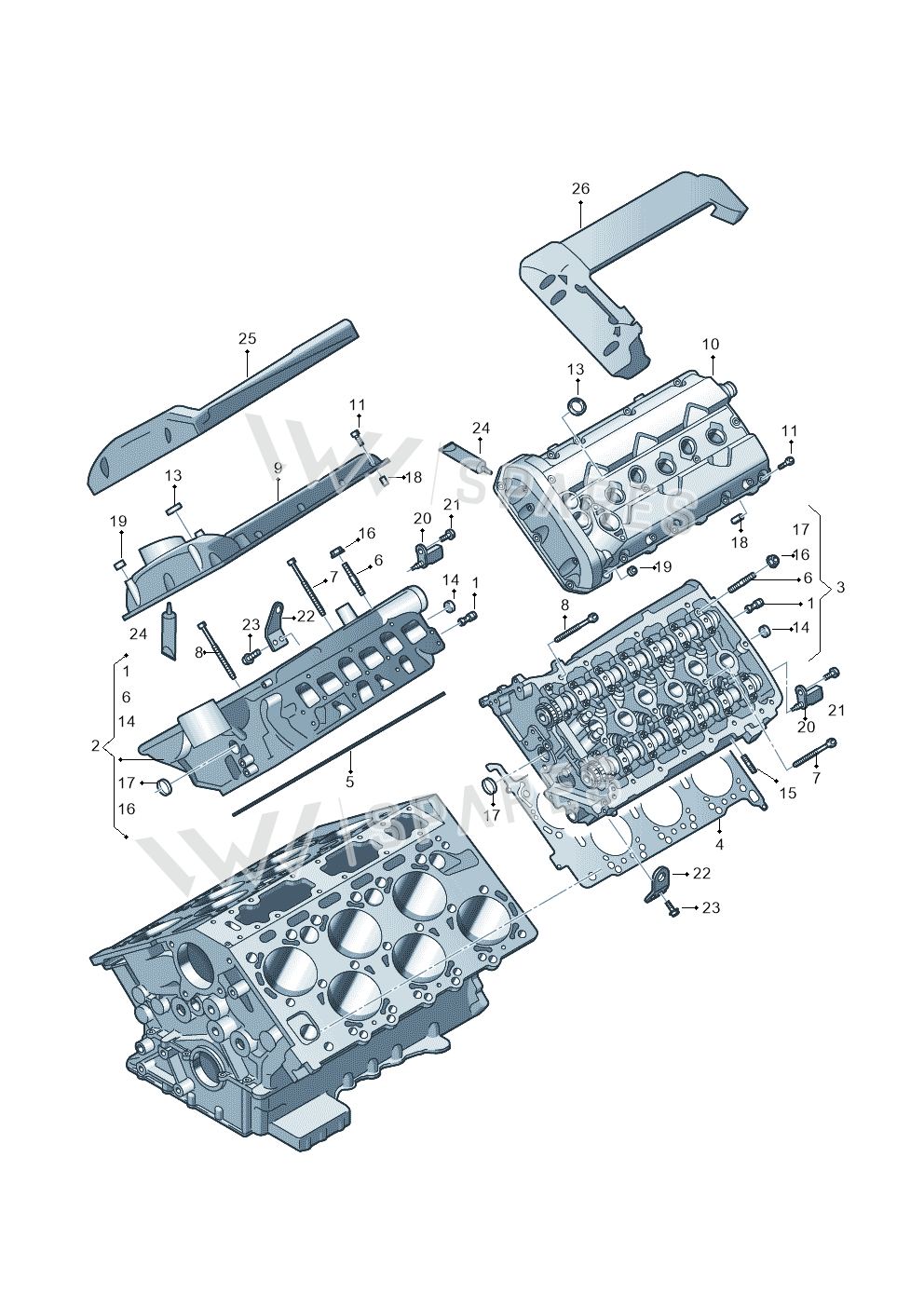

1 vehicleCylinder Head Cover — locate Cylinder Head Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Bungs 07P103035
- 2Cylinder Head 07P103901X
- 2Cylinder Head 07P103063A
- 3Cylinder Head 07P103902X
- 3Cylinder Head 07P103064A
- 4Seal 07P103148
- 5Seal 07P103149
- 7Screw WHT005265
- 8Screw WHT003707
- 9Cover 07P103469F
- 10Cover 07P103470F
- 10Cover 07P103470D
- 11Screw N91096901
- 12Screw N91180401
- 13Seal 07P109091C
- 14Cover N10218601
- 15Bolt WHT004782
- 17Cover N90898202
- 18Part N90332701
- 19Seal 07P103517
- 22Retainer 07P103392B
- 22ARetainer 07P103392E
- 23Screw N91026802
- 24Seal D176501A1
- 25Sound Abs 07P103983A
- 25Sound Abs 07P103983B
- 26Sound Abs 07P103984A
- 26Sound Abs 07P103984B
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8L qu. 3.0 TDI | 2009-2014 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head Cover is fitted on: Audi A8L qu. 3.0 TDI 2009-2014.
