09D321181 Seal Ring
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

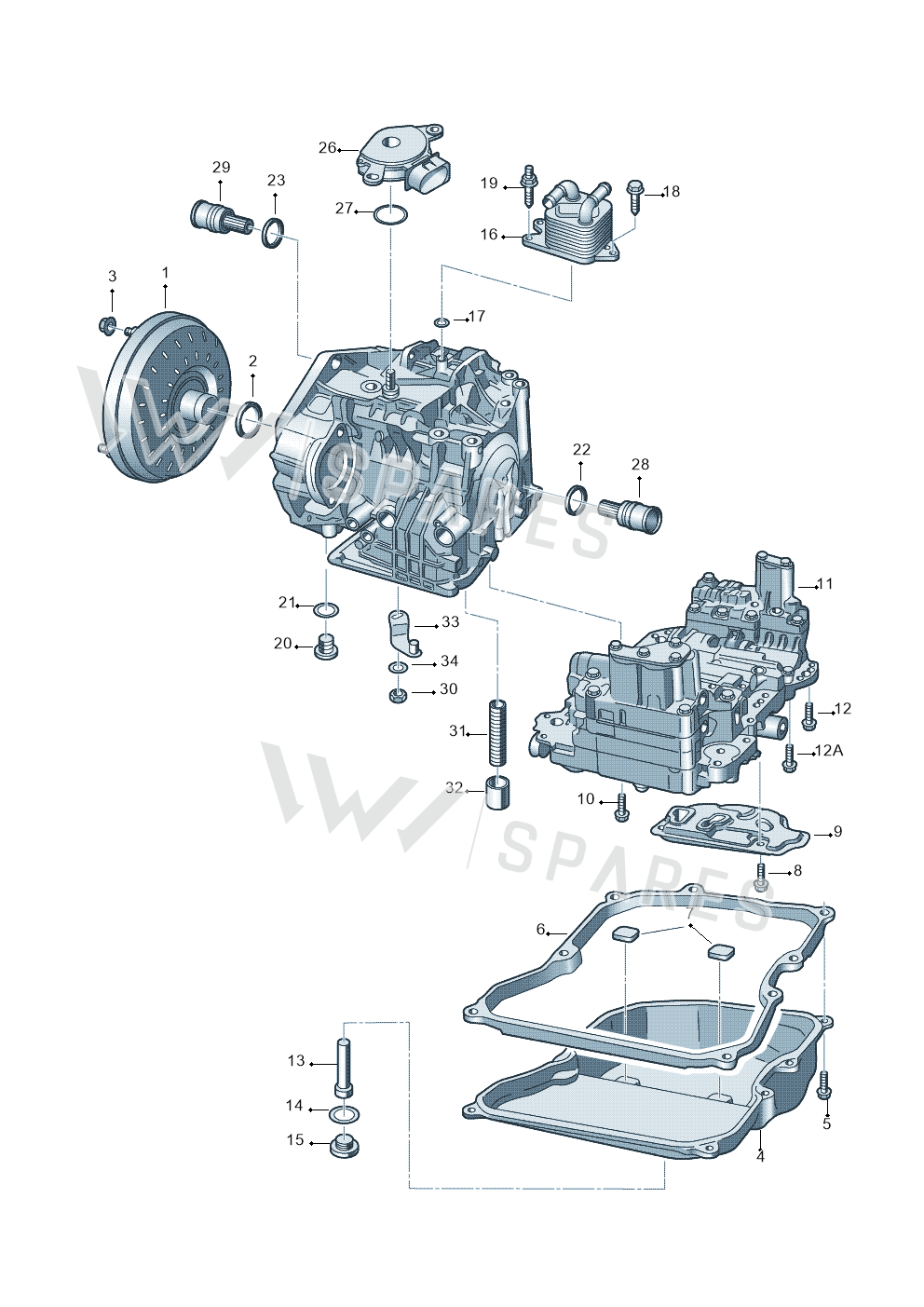

9 vehiclesSeal Ring — locate Seal Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Converter 09G323571C
- 1Converter 09G323571J
- 2Seal Washer 09K321243
- 3Part N10169201
- 4Oil Sump 09G321361
- 5Bolt WHT000309
- 6Seal 09G321370
- 7Magnet 09D321368
- 8Bolt WHT000315
- 9Strainer 09G325429
- 10Bolt WHT000311
- 11Valve Body 09G325039D
- 12Bolt WHT000307
- 12ABolt WHT000313
- 13Oil Pipe 09G321363A
- 14Seal Ring 09D321181B
- 15Screw WHT000310A
- 16Oil Cooler 09G409061B
- 17Seal Ring WHT001686
- 18Bolt WHT001864
- 20Screw WHT000306
- 21Seal Ring 09G321379
- 22SealLeft09G301189
- 27Seal Washer 09D321199
- 30Part WHT001425
- 31Spring 09K325233
- 32Piston 09K325215
- 33Lever 09G321175
- 34Plate 09G321381
Vehicle fitment table9
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Fabia Jingrui | 2008-2014 | 14 | 1 | |
| Audi A3/S3/quattro | 2005-2007 | 14 | 1 | G1A |
| Audi TT Coupe/Roadster | 2002-2006 | 14 | 1 | G1A |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Lavida XR | 2023- | 29 | 1 | |
| Polo | 2019- | 29 | 1 | |
| T-Cross | 2019-2024 | 29 | 1 | |
| OCTAVIA "CN."07> | 2007- | 14 | 1 | |
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 14 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 7L6 platform | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal Ring is fitted on: Fabia Jingrui 2008-2014; Audi A3/S3/quattro 2005-2007; Audi TT Coupe/Roadster 2002-2006; Lavida XR 2023-; Polo 2019-; T-Cross 2019-2024; OCTAVIA "CN."07> 2007-; POLO CLASSIC (AUS) "CN"03>06 2003-2006; 7L6 platform.
