09F409189 Radial Shaft Seal
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

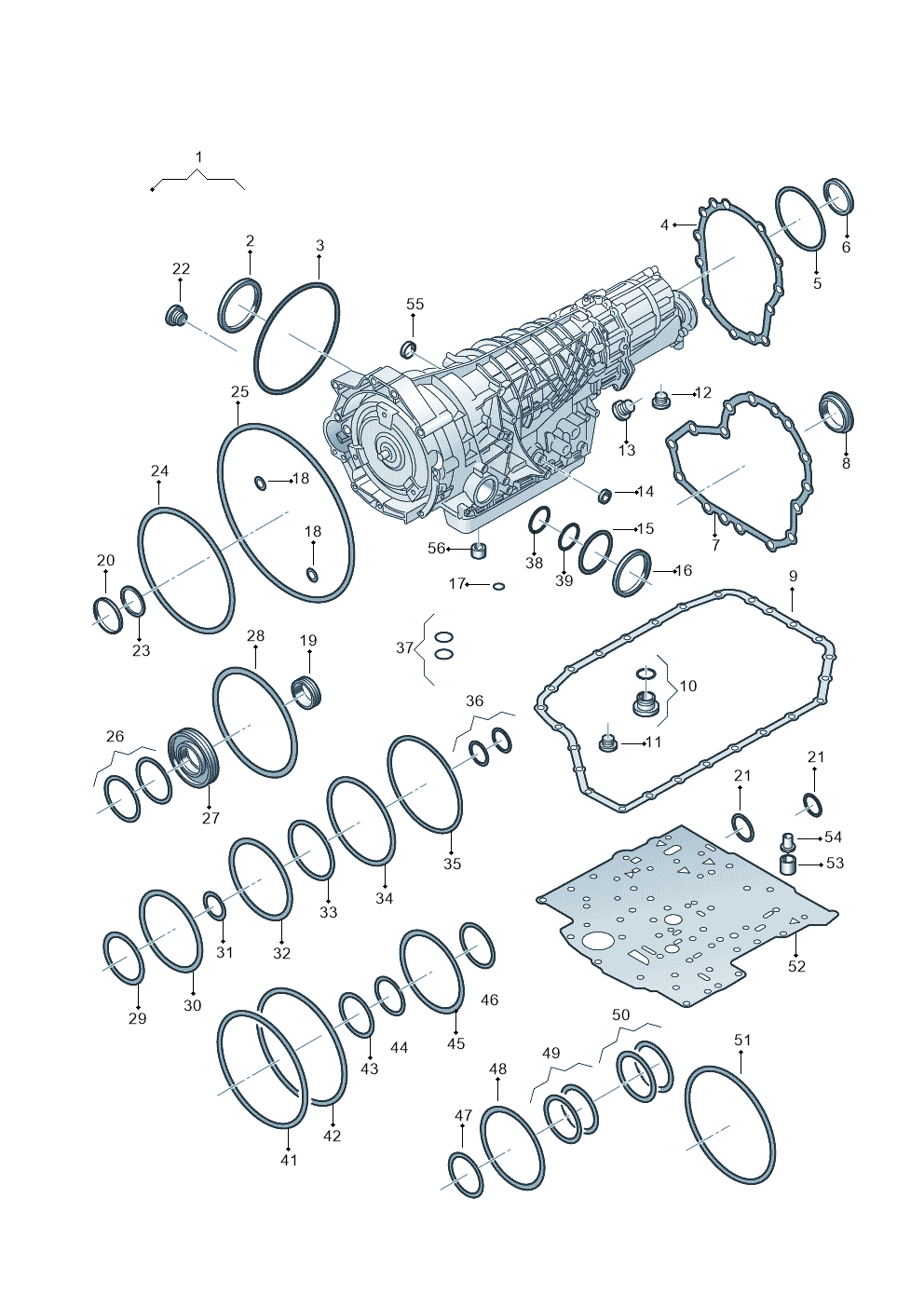

10 vehiclesRadial Shaft Seal — locate Radial Shaft Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Gask Set 01L398211
- 2SealRight01V409399
- 3Seal Ring 01V409133A
- 4Seal 01V321381A
- 5Seal Ring 01V409133B
- 6Seal 018409399B
- 7Seal 01L321381
- 8Seal 01V409400A
- 9Gasket 01L321371
- 10Seal Ring 01V321379
- 11Bolt 018321377B
- 12Bolt 01V409057A
- 13Bolt 01V409057
- 15Seal Ring 01V409133
- 16SealLeft01L409399
- 17Seal Ring 01F321419
- 18Seal Ring 01F321386C
- 19Seal 01V409400B
- 20Seal Washer 018321243
- 21Seal Ring 01V927322A
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2008-2010 | 14, 9 | 1 | G0Q |
| PHAETON 08> | 2007- | 14, 9 | 1 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 21 | 1 | G0R |
| Phaeton (lang) | 2003-2006 | 14, 9 | 1 | |
| Audi RS6 qu. | 2003-2004 | 14, 24 | 1 | G0Q |
| Audi A4/S4/Av./qu. | 2001-2004 | 21 | 1 | G0R |
| Audi A6/Wagon/quattro | 2001-2004 | 14, 24 | 1 | G0Q |
| Audi A8 quattro | 1999-2002 | 14, 24 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 14, 24 | 1 | |
| Audi A8 qu. | 1996-1998 | 14, 24 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Radial Shaft Seal is fitted on: phaeton 4motion 2008-2010; PHAETON 08> 2007-; Audi A4/S4/Av./qu. 05> 2005-; Phaeton (lang) 2003-2006; Audi RS6 qu. 2003-2004; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A8 quattro 1999-2002; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A8 qu. 1996-1998.
