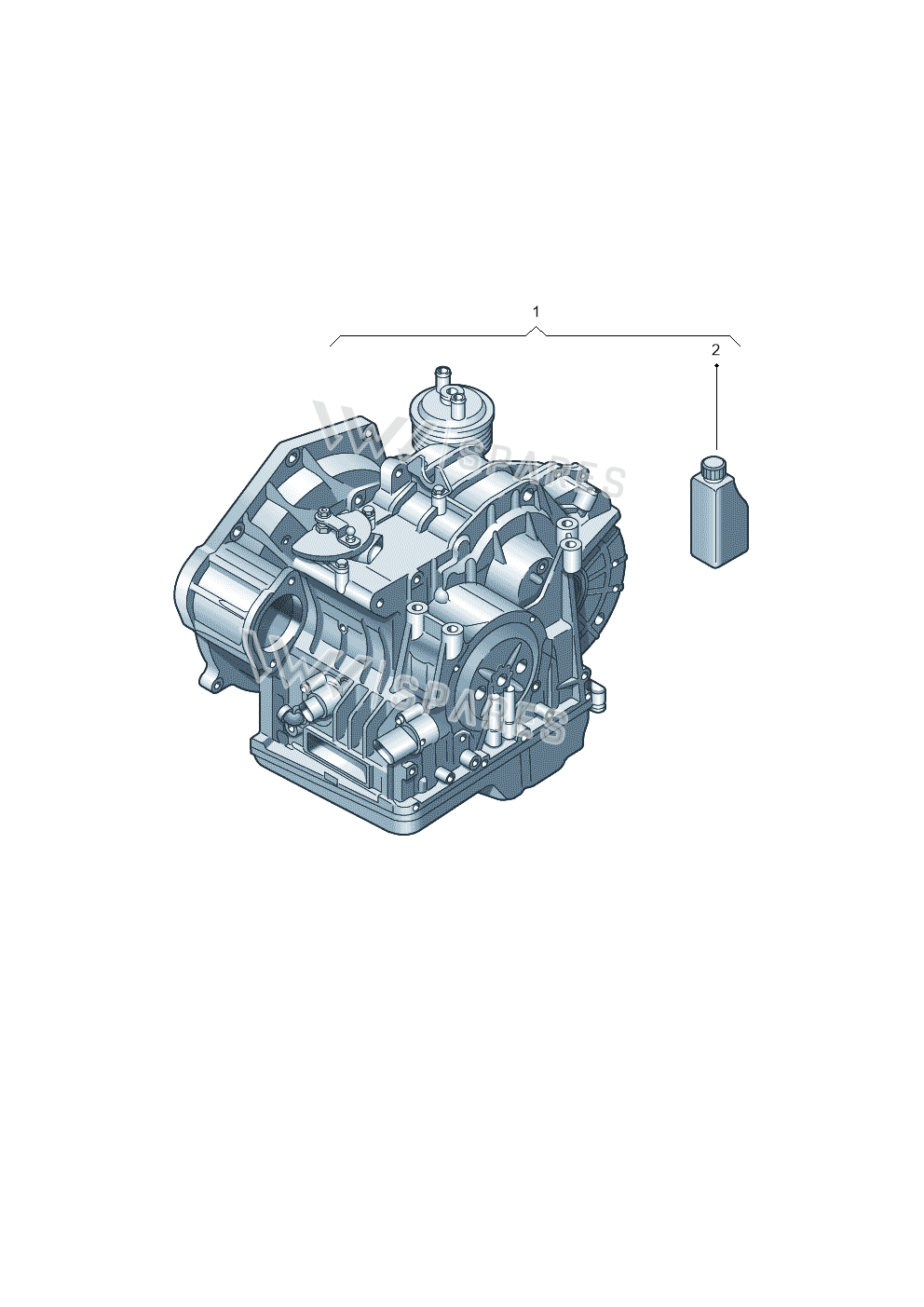

6-Speed Automatic Gearbox exploded parts diagram — GOLF PLUS 08> · 2007-, position 1
Exploded view
GOLF PLUS 08> · 2007- · position 1Full diagram ↓
09G300039F

09G300039F 6-Speed Automatic Gearbox

£6,426.48
£5,311.14 excl. VAT
Supersession road4 numbers since 2005
  1. 09G300036TNot stocked
    Oct 2005
  2. 09G300038ANot stocked
    Jun 2007
  3. 09G300039FThis pageNot stocked
    Apr 2013
  4. 09G300039FXDiscontinued
    Apr 2022
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

6-speed Automatic Gearbox — locate 6-Speed Automatic Gearbox in the official exploded view and explore the surrounding assembly.

Parts in this assembly10
Vehicle fitment table8

Europe (5)

VehicleYearsPos.QtyRemarkPR
GOLF PLUS 08>2007-11JTW
ALTEA 07>2006-21JTW
TOURAN2005-200611HFX,HTQ
TOLEDO 05>2004-21JTW
ALTEA2004-200621JTW

Other markets (3)

VehicleYearsPos.QtyRemarkPR
OCTAVIA "CN."07>2007-21JTW
BORA-FAW "CN" 06>2005-21JTWTE2
TOURAN (SVW) "CN"04>2004-11JTWG1A

Diagrams & fitment data powered by oemdiagrams.com

6-Speed Automatic Gearbox is fitted on: GOLF PLUS 08> 2007-; ALTEA 07> 2006-; TOURAN 2005-2006; TOLEDO 05> 2004-; ALTEA 2004-2006; OCTAVIA "CN."07> 2007-; BORA-FAW "CN" 06> 2005-; TOURAN (SVW) "CN"04> 2004-.
