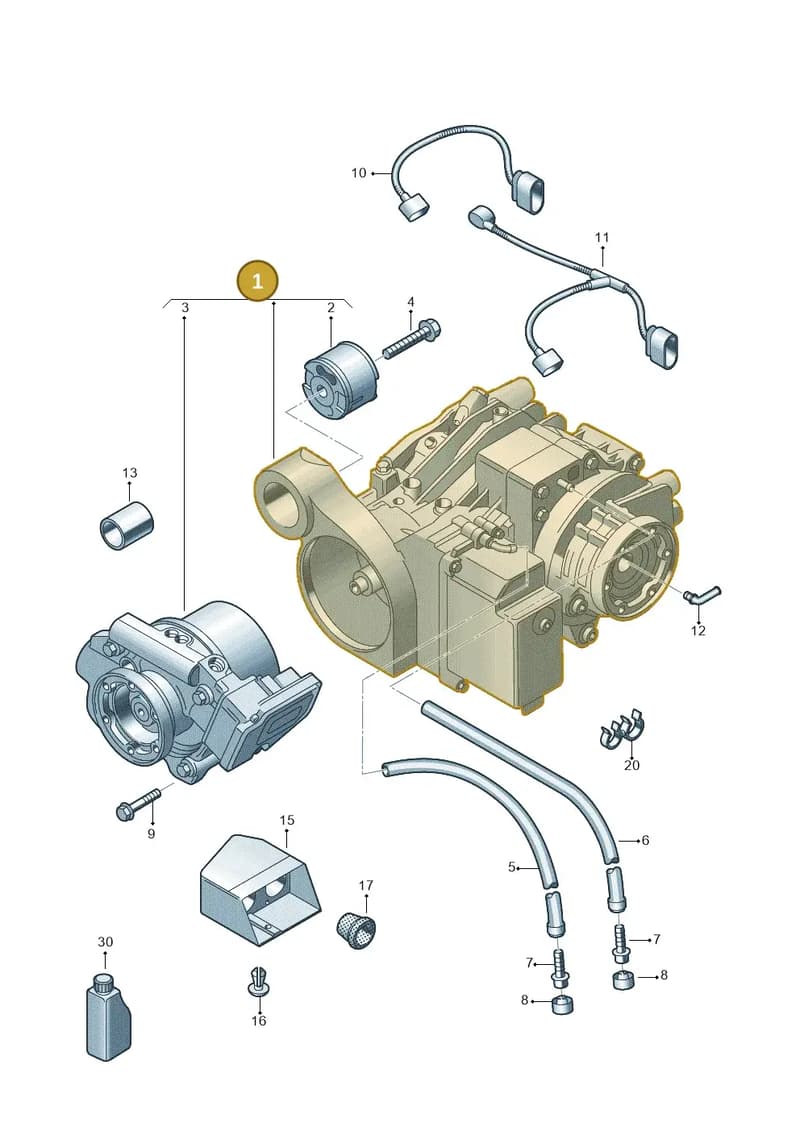

Number 1 marks the part’s position in the exploded view (Volkswagen Transporter Multivan (2019-2024)).
Product overview
Genuine OEM Volkswagen Final Drive, part number 09N525010M. Fits Volkswagen Caravelle (2019-2024), Volkswagen Transporter Multivan (2019-2024), Volkswagen Transporter Single Cab (2019-2024). Shown as position 1 in the rear axle diagram 861525100.
Catalogue entry: FINALDRIVE; If required; 13.
Fitted with: 09N525010K FINALDRIVE, 09N525010L FINALDRIVE, 09N525010N FINALDRIVE, N10428002 BOLT.
Technical details
- Category
- Suspension
- Diagram sheet
- Volkswagen 861525100, position 1
- ETKA group
- 5 / 25 (525)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1Y0
- G1D
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesFinal Drive — locate 09N525010M Volkswagen Final Drive in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Part 09N525010K
- 1Part 09N525010L
- 1Part 09N525010N
- 2Rubber Bush 7H0525337
- 3Part 0CQ525554AE
- 3Clutch 0CQ525554AF
- 4Bolt N10428002
- 5Hose 02W525095D
- 6Hose 02W525095C
- 8Ap Cap For Venting The Gearbox Cap For Venting 0DJ301485
- 9Screw N91202001
- 12Pipe 02W525117
- 13Stone Chip 7E0525695B
- 17Grommet 111971907
- 20Binder 4A0820199
- 20Bracket WHT005377
- 20Part WHT008084
- 30Axle Oil G060517A2
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| transport. multivan | 2019-2024 | 1 |
| caravelle | 2019-2024 | 1 |
| Single-cab transp. | 2019-2024 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
09N525010M Volkswagen Final Drive is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024.
