0BH409400B Radial Shaft Seal
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

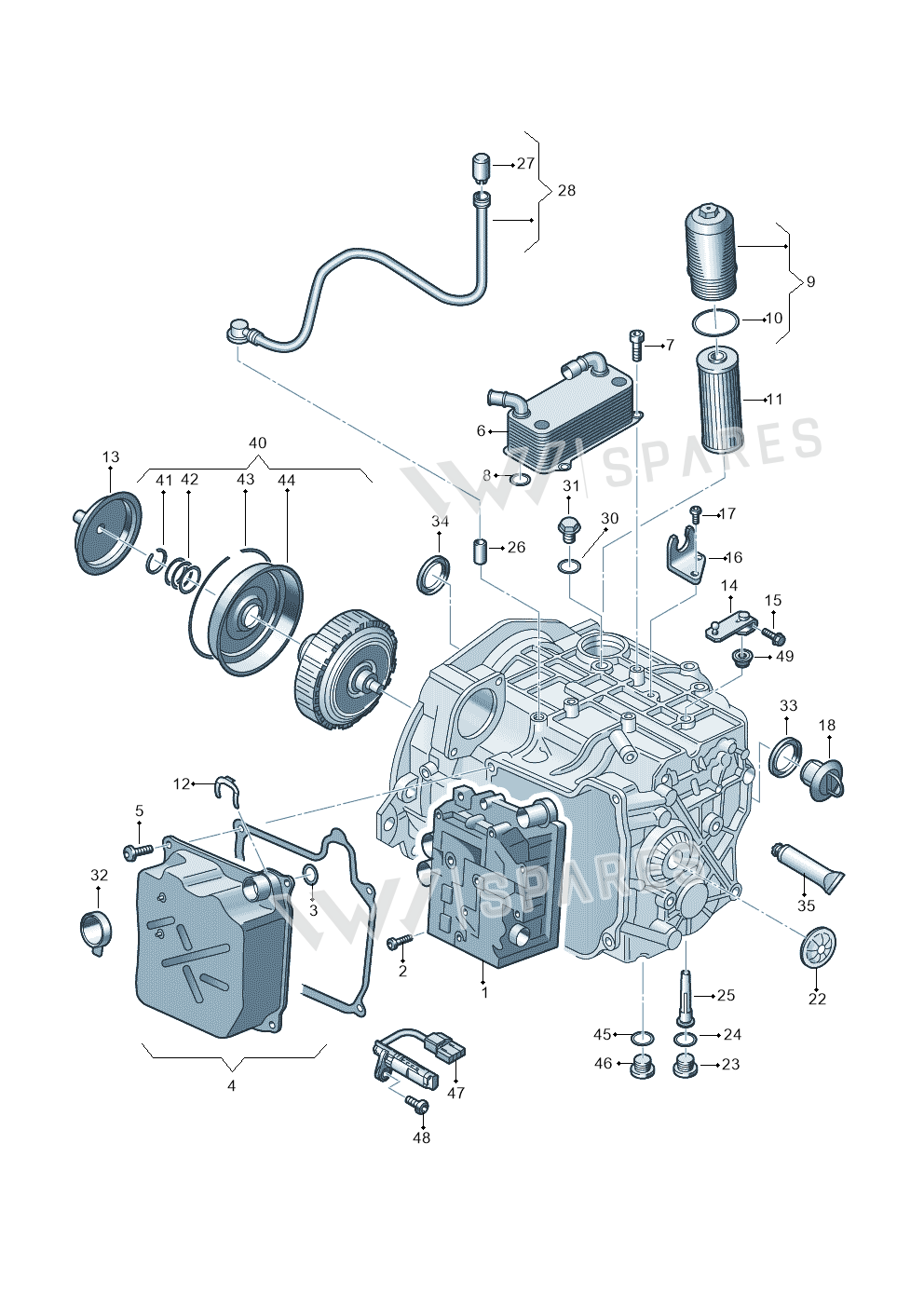

19 vehiclesRadial Shaft Seal — locate Radial Shaft Seal in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly43
- 1Mechatron 0BH325025K
- 2Screw N10554002
- 4Cover 0GC325201F
- 4Cover 0BH325201E
- 5Screw N91032703
- 6Oil Cooler 0BH317019A
- 7Screw N10644901
- 8Seal Ring N91027901
- 9Housing 0BH325159
- 10Seal Ring N91084501
- 11Filterelem 0BH325183B
- 12Clip 0BH325147
- 14Lever 0BH321171
- 15Bolt N90441603
- 16Abutment 0BH321397
- 17Bolt N90785203
- 18PartLeft0BT311120
- 22Cover 0BH301125E
- 23Screw N90215404
- 24Seal Ring N0438092
- 25Oil Pipe 0BH321363
- 26Pipe 0AM409847
- 27Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 28Pipe 0BH301472J
- 30Seal Ring WHT003706
- 31Bolt N91180601
- 32Part 02E311120A
- 33Seal WasherLeft0BH409400C
- 34Seal WasherRight09A409400B
- 34Seal WasherRight09A409400A
- 35Grease G000100
- 35Grease G060735A2
- 35Seal Greas G052128A1
- 40Rep Set 0BH398029B
- 41Ring 0BH311321
- 42Shims 0BH398008
- 43Ring 0BH301859A
- 44Cover 0BH301205D
- 45Seal Ring N0138132
- 46Screw N10637901
- 47Sensor 0BH927321A
- 48Bolt N10124304
- 49Seal Ring 095321182B
Vehicle fitment table19
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS3 Sportback | 2015-2016 | 33 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 33 | 1 | ||
| Audi RSQ3 qu. 2.5 | 2013-2018 | 33 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 40 | 1 | ||
| Audi Q3 1.4 | 2012-2016 | 33 | 1 | G1C | |
| Tiguan 4Motion | 2011-2018 | 24 | 1 | ||
| transp. caravelle | 2011-2015 | 33 | 1 | ||
| transp. dropside | 2011-2015 | 33 | 1 | ||
| California Camper | 2011-2015 | 33 | 1 | ||
| Audi Q3 quattro | 2011-2015 | 33 | 1 | ||
| Audi RS3 Sportback | 2011-2012 | 33 | 1 | G1D | |
| Audi TTRS Plus Coupe | 2009-2014 | 33 | 1 | G1D | |
| transp. caravelle | 2009-2011 | 33 | 1 | G1C | |
| transp. dropside | 2009-2011 | 33 | 1 | ||
| California Camper | 2009-2011 | 33 | 1 | ||
| TIGUAN 08> | 2007- | 33 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Limousine 2.0 | 2017-2021 | 33 | 1 | G1C | |
| Audi Q3 quattro 2.0 | 2016-2019 | 33 | 1 | ||
| Audi A3 Sportback 1.4 | 2014- | 33 | 1 | G1C |
Diagrams & fitment data powered by oemdiagrams.com
Radial Shaft Seal is fitted on: Audi RS3 Sportback 2015-2016; Audi Q3 2.0 TDI 2014-2019; Audi RSQ3 qu. 2.5 2013-2018; Audi A3 Sportback 2012-2016; Audi Q3 1.4 2012-2016; Tiguan 4Motion 2011-2018; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Audi Q3 quattro 2011-2015; Audi RS3 Sportback 2011-2012; Audi TTRS Plus Coupe 2009-2014; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; TIGUAN 08> 2007-; Audi A3 Limousine 2.0 2017-2021; Audi Q3 quattro 2.0 2016-2019; Audi A3 Sportback 1.4 2014-.
