192711532 Bracket
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

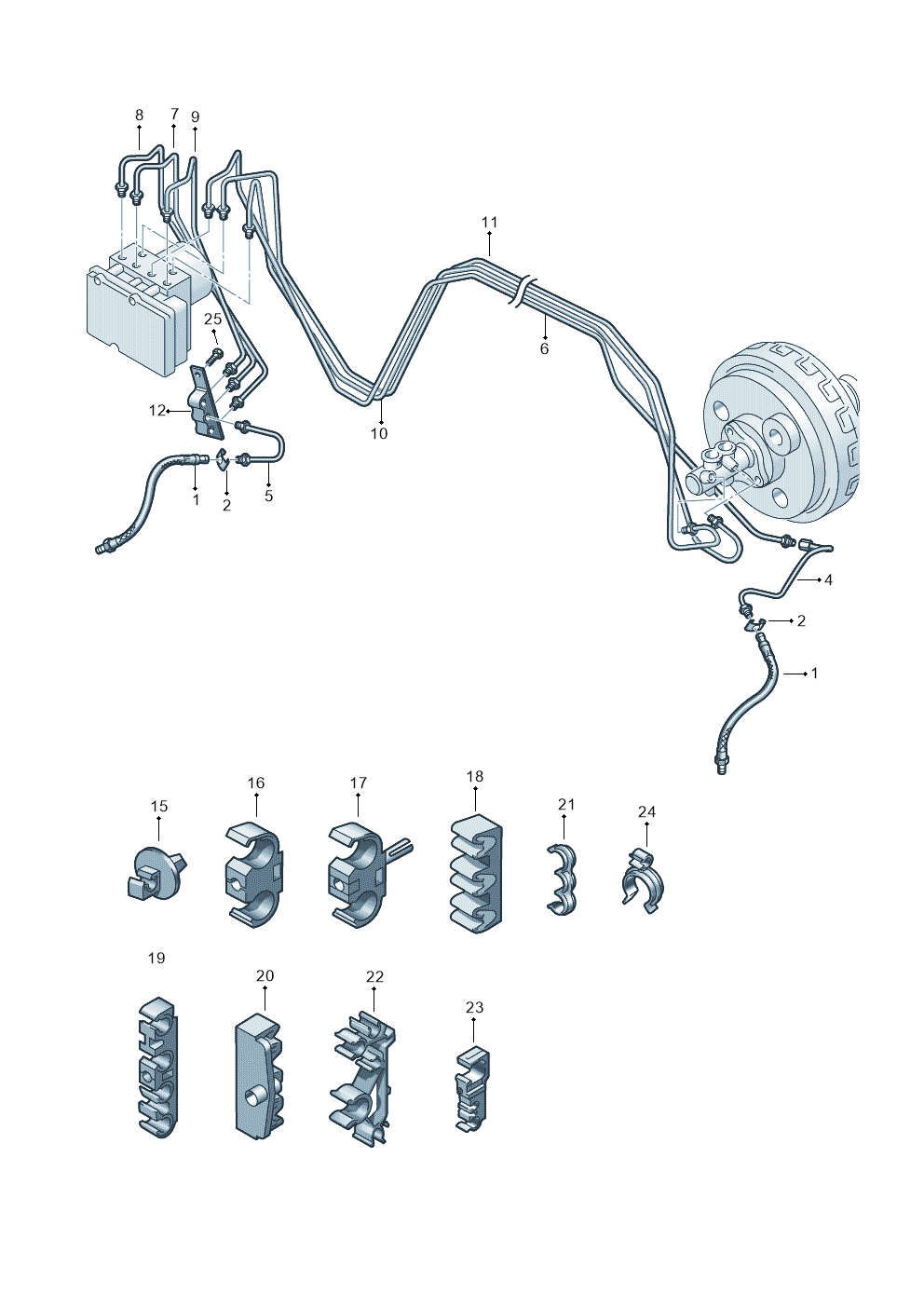

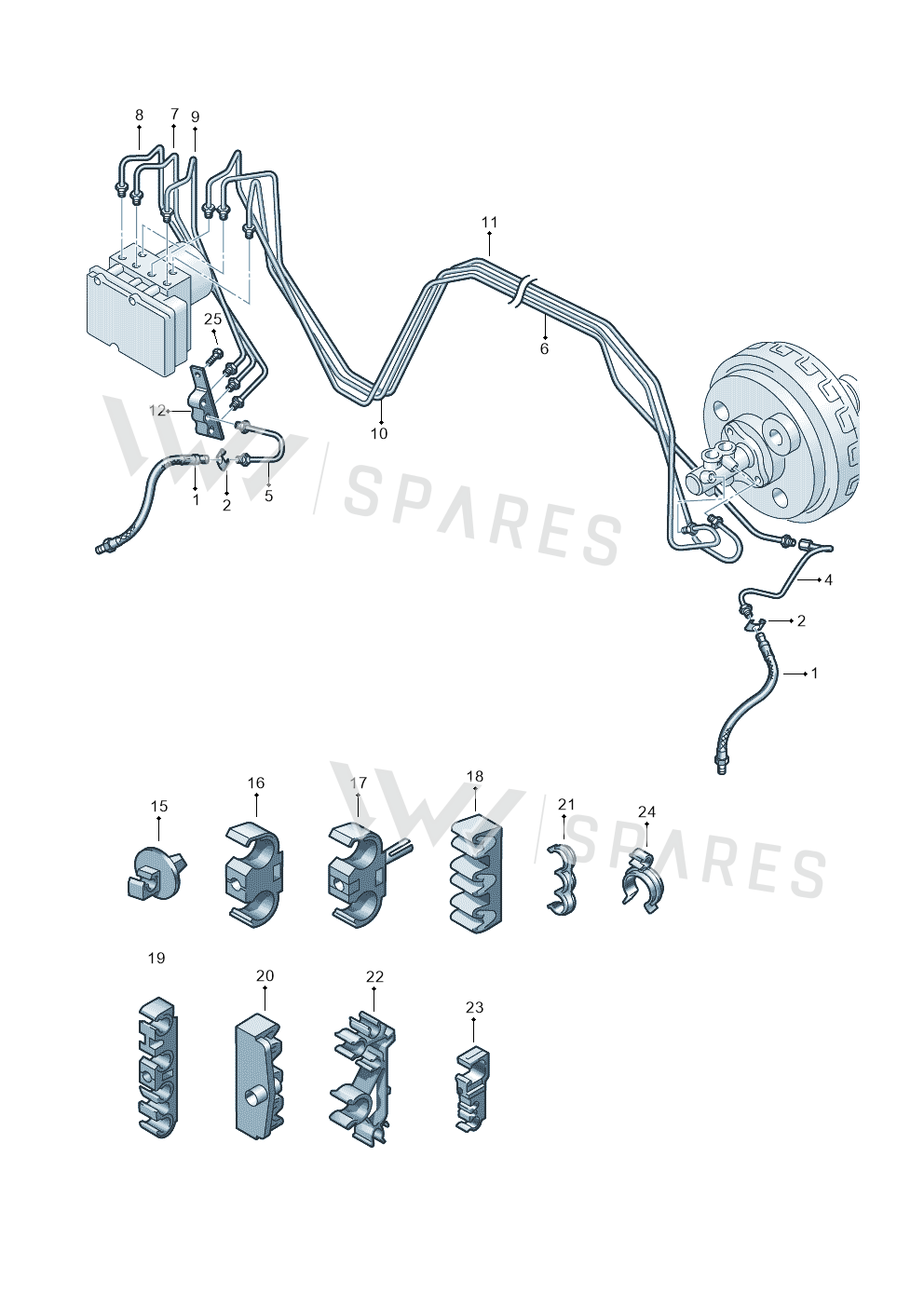

18 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Brake Hose 7L0611701C
- 2Spring 3D0611715B
- 4Brake LineLeft7L0614723D
- 5Brake LineRight7L0614724C
- 6Brake LineLeft7L8614727B
- 6Brake LineLeft7L8614727C
- 6Brake LineLeft7L8614727G
- 6Brake LineLeft7L8614727H
- 7Brake LineRight7L8614728
- 7Brake LineRight7L8614728A
- 8Brake Line 7L8614729A
- 9Brake Line 7L8614730
- 9Brake Line 7L8614730A
- 10Brake Pipe 7L8614742C
- 10Brake Pipe 7L8614742
- 10Brake Pipe 7L8614742D
- 11Brake Pipe 7L8614741E
- 11Brake Pipe 7L8614741D
- 11Brake Pipe 7L8614741F
- 12Distribut 7L0614124A
- 15Bracket 281611767B
- 16Clip 8K0611797D
- 17Bracket 7L0611793D
- 17Retainer 8Z0611797
- 18Bracket 7L8611793A
- 18Bracket 7L0611793
- 19Bracket 1J0611797B
- 20Bracket 7L0611797
- 21Bracket 2D0611853
- 22Bracket 7L0611850
- 22Bracket 7L0616247
- 23Bracket 7L0971848A
- 25Bolt N90533005
Vehicle fitment table19
Europe (14)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 24, 9 | 1 | L0L |
| Audi Q7 07> | 2006- | 24 | 1 | L0L |
| LT, LT 4X4 | 2003-2006 | 20, 18 | 1 | |
| LT, LT 4X4 | 1996-2003 | 20, 18 | 1 | |
| TRANSPORTER SYNCRO | 1996-2003 | 4, 2 | 1 | |
| Transporter 96 | 1996-1996 | 3, 4, 6, 2 | X | |
| TRANSPORTER SYNCRO | 1995-1995 | 4, 2 | 1 | |
| TOLEDO SEAT | 1991-1996 | 9 | 1 | |
| Jetta | 1989-1991 | 9B | 1 | |
| Jetta 89 | 1988-1989 | 9B | 1 | |
| Jetta 88 | 1987-1988 | 9B | 1 | |
| Jetta 87 | 1986-1987 | 9B | 1 | |
| Jetta 86 | 1985-1986 | 9B | 1 | |
| Jetta 85 | 1984-1985 | 9B | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Eurovan | 1998-2003 | 3, 4, 6 | X | |
| Eurovan 98 | 1997-1998 | 3, 4, 6 | X | |
| Eurovan | 1996-1997 | 3, 4, 6 | X |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 701 platform | 2 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Rabbit Conv./Cabrio | 1983-1993 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Audi Q7 07> 2006-; LT, LT 4X4 2003-2006; LT, LT 4X4 1996-2003; TRANSPORTER SYNCRO 1996-2003; Transporter 96 1996-1996; TRANSPORTER SYNCRO 1995-1995; TOLEDO SEAT 1991-1996; Jetta 1989-1991; Jetta 89 1988-1989; Jetta 88 1987-1988; Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; Eurovan 1998-2003; Eurovan 98 1997-1998; Eurovan 1996-1997; 701 platform.
