1ED816743D Refrigerant Line
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

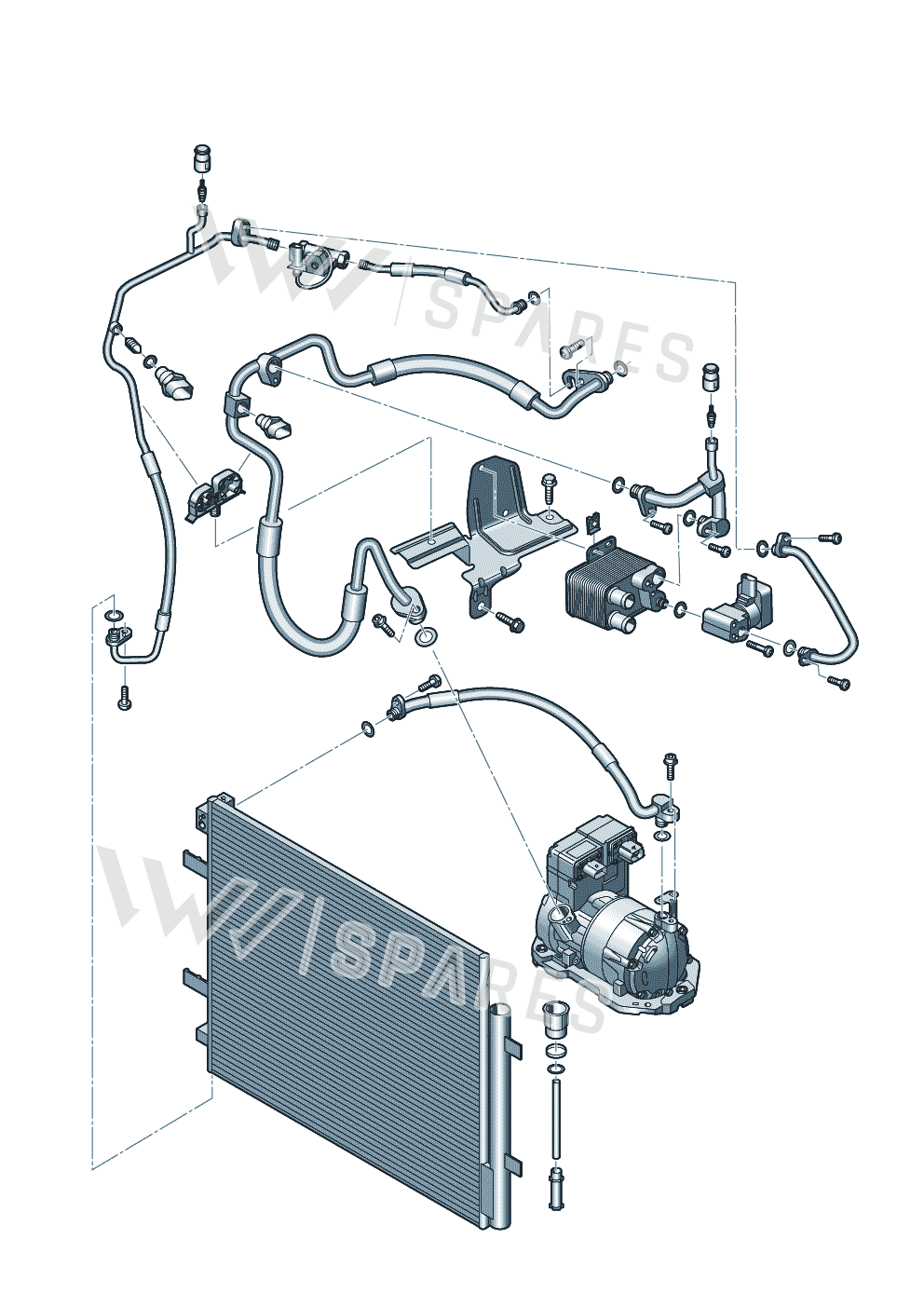

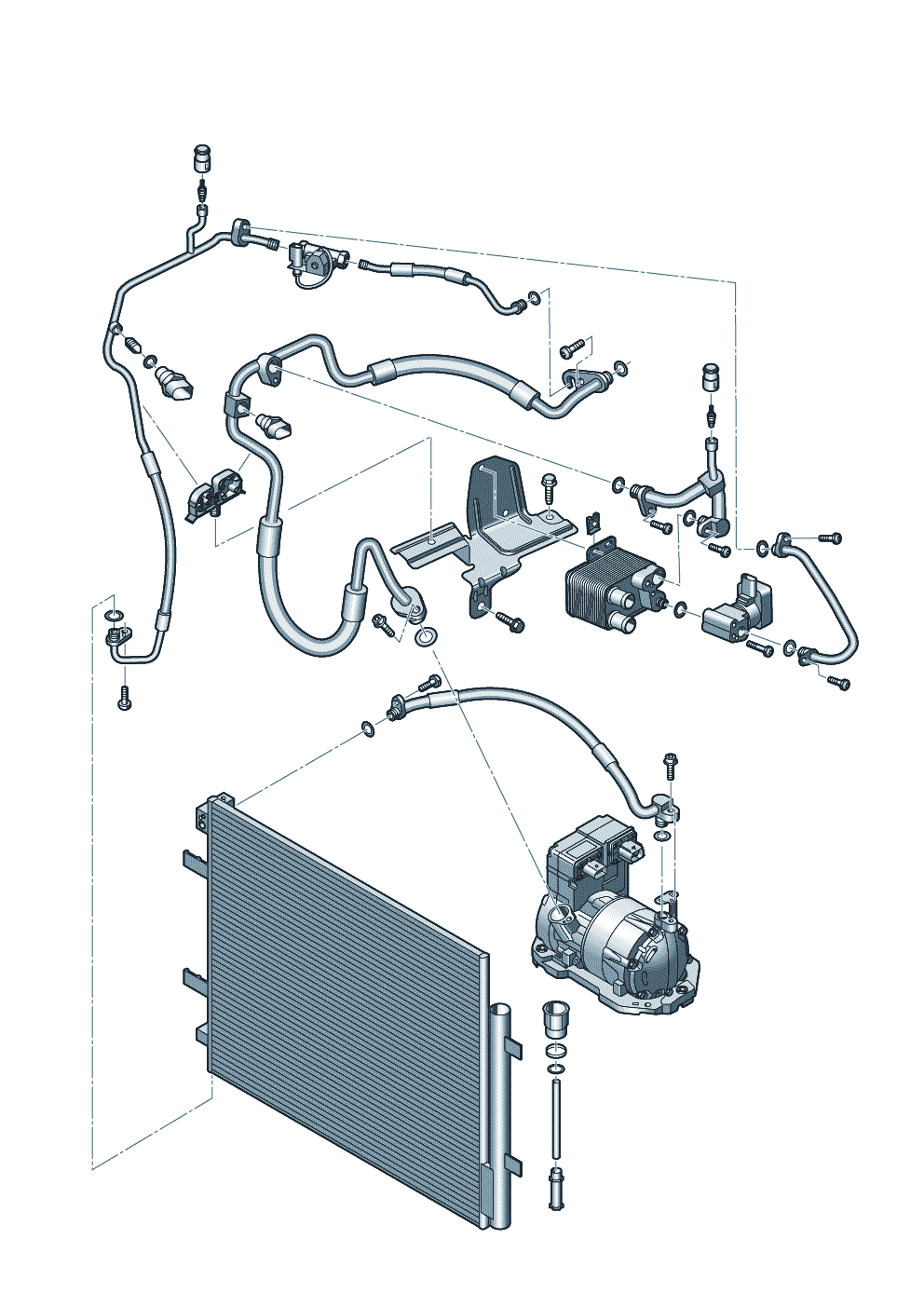

8 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Condenser 1ED816411A
- 1Condenser 1ED816411B
- 5Line 1ED816721
- 5Line 1ED816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 10Line 1ED816743
- 10Line 1ED816743A
- 10Line 1ED816743B
- 10Line 1ED816743C
- 10Line 1ED816743E
- 11Sensor 4M0959603C
- 11Sensor 4M0959603E
- 12Seal Ring 4E0260749B
- 13Seal Ring 8E0260749C
- 15Bolt N91096801
- 18Line 1ED820741
- 18Line 1ED820741D
- 19Valve 8R0260696A
- 19Valve 8R0260696B
- 20Sender 4H0959126B
- 21Seal Ring 7H0820896
- 22Valve 8A0820855AA
- 23Part 3C0820581
- 24Valve 8E0820855
- 25Seal Ring 4D0260749B
- 26Bolt N10347204
- 28Pipe 1ED820739
- 30Protective Cap 3C0820231
- 34Pipe 1ED816732
- 38Clip 1EA820317
- 40Heat Exch 1ED816111
- 42Bolt N10438202
- 43Speed Nut WHT008829
- 44Bracket 1ED816087
- 45Bolt N10805001
Vehicle fitment table8
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tavascan Cupra | 2023- | 10 | 1 | 1X2 |
Other markets (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ID.UNYX | 2024- | 10 | 1 | 1X2 | |
| Audi Q4 Sportback | 2022- | 10 | 1 | PR-1X2 | 1X2 |
| ID.6 X | 2021- | 10 | 1 | 1X2 | |
| ID.3 | 2021- | 10 | 1 | ||
| Audi Q5 e-tron | 2021- | 10 | 1 | 1X2 | |
| ID.4 X | 2020- | 10 | 1 | 1X2 | |
| ID.4 | 2020- | 10 | 1 | 1X2 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Tavascan Cupra 2023-; ID.UNYX 2024-; Audi Q4 Sportback 2022-; ID.6 X 2021-; ID.3 2021-; Audi Q5 e-tron 2021-; ID.4 X 2020-; ID.4 2020-.
