1H0501615A Brake Drum
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

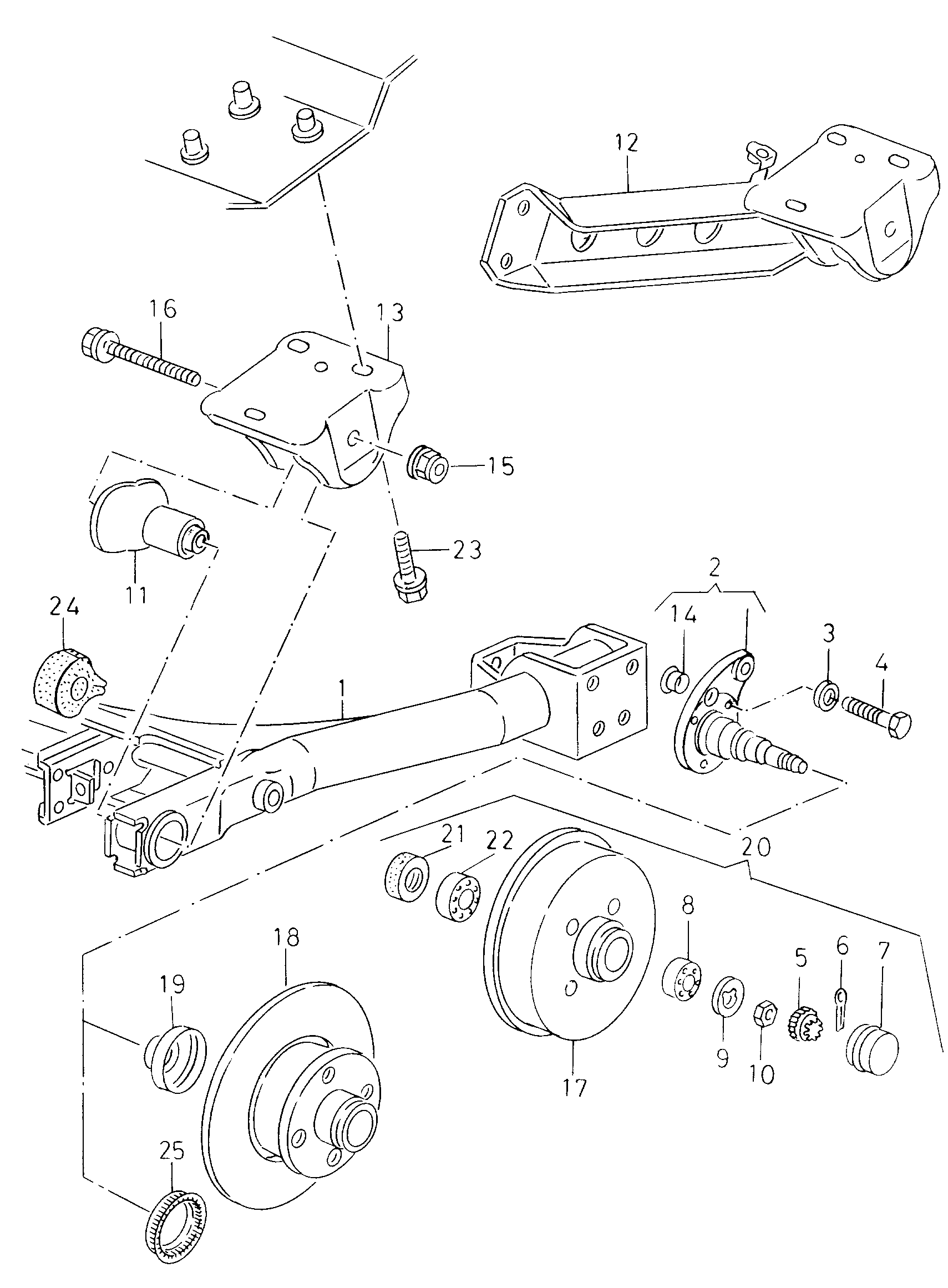

13 vehiclesBrake Drum — locate Brake Drum in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Rear Axle 191500051H
- 1Part 191500051L
- 1Part 1H0500051Q
- 2Stub AxleLeft333501117
- 2Stub AxleLeft333501117A
- 2Stub AxleRight333501118
- 2Stub AxleRight333501118A
- 2Stub Axle 357501117
- 3Spring 321501119A
- 4Bolt N90758902
- 5Fuse 803501221
- 6Part N0125361
- 7Part 823501249
- 8Mounting 311405645B
- 9Washer 311405661
- 10Part N0111671
- 11Rubber Bush 1H0501541A
- 11Rubber Bush 191501541
- 12BracketLeft1H0501543A
- 12BracketRight1H0501544
- 12Bracket 191501544
- 13BracketRight191501546
- 13BracketLeft191501545
- 14Bungs 191501159
- 15Collar Nut N90323704
- 16Bolt N90354401
- 18Brakedisc 357615601B
- 18Brakedisc 357615601
- 19Cover 1H0501639
- 19Cover 191501639B
- 20Wheel Bear 191598625
- 21Seal 357501641B
- 22Mounting 311405625F
- 23Bolt N10141701
- 24Rubber Bush 871511423
- 25Rotor 1J0614149
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 17 | 2 | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 18 | ||
| PICK UP | 1995-2001 | 8 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 18 | ||
| TOLEDO SEAT | 1991-1996 | 17 | 2 | RP,ABS,1Y, |
| AUDI COUPE/2 88 | 1987-1987 | 6 | 2 | |
| Audi 4000 S | 1984-1987 | 6 | 2 | |
| Audi Coupe | 1981-1987 | 6 | 2 | |
| Audi 4000 | 1981-1984 | 6 | 2 | |
| Audi 4000 | 1979-1981 | 6 | 2 | |
| Audi Fox | 1976-1978 | 9, 8 | 2 | |
| Audi Fox | 1972-1976 | 9, 8 | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| JETTA (FAW) 91> | 1991- | 17 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Drum is fitted on: TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; PICK UP 1995-2001; Ibiza/Cordoba (SEAT) 1992-1996; TOLEDO SEAT 1991-1996; AUDI COUPE/2 88 1987-1987; Audi 4000 S 1984-1987; Audi Coupe 1981-1987; Audi 4000 1981-1984; Audi 4000 1979-1981; Audi Fox 1976-1978; Audi Fox 1972-1976; JETTA (FAW) 91> 1991-.
