1H0611053 Wheel Brake Cylinder
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

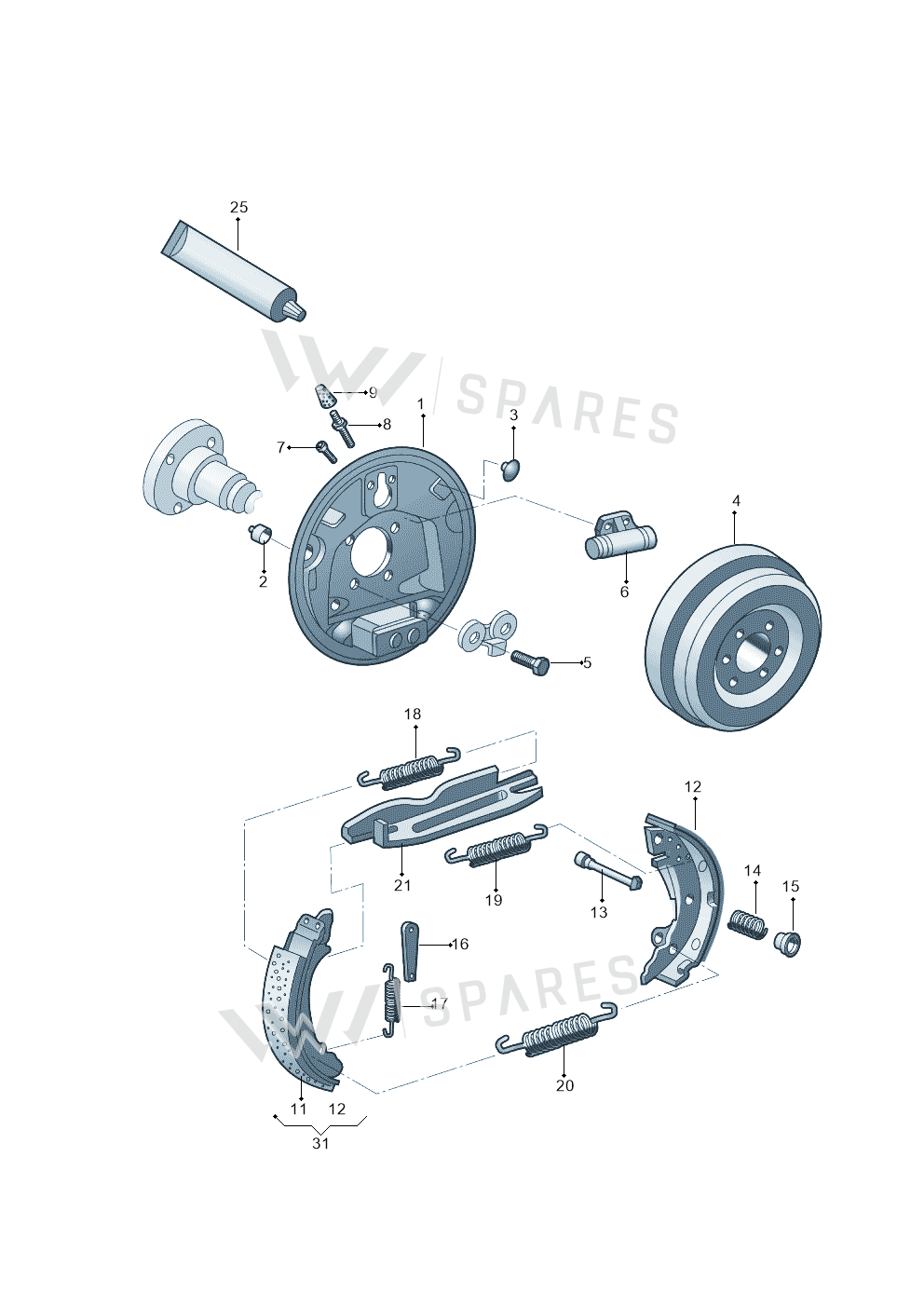

44 vehiclesWheel Brake Cylinder — locate Wheel Brake Cylinder in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Back PlateRight6Q0609426E
- 1Back PlateLeft6Q0609425E
- 2Bungs 171609163
- 3Glidepiece 6N0609589
- 4Brake Drum 6QD609617
- 5Bolt N91006202
- 7Screw N90911002
- 8Valve 3A0611475
- 9Part 211611483
- 11Brake ShoeRight6Q0609526B
- 11Brake ShoeLeft6Q0609525B
- 12PartRight6Q0609528B
- 12PartLeft6Q0609527B
- 13Part WHT001953
- 14Press Spring 171609583A
- 15Springseat 6Q0609709
- 16Wedge 171609705
- 17Spring 171609715
- 18Spring 357609707A
- 19SpringRight357609712A
- 19SpringLeft357609711A
- 20Spring 171609717
- 21Push BarRight6Q0609820A
- 21Push BarLeft6Q0609819A
- 25Part G000650
- 31Brake Shoe 6RD698525
Vehicle fitment table44
Europe (31)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Fabia Jingrui | 2008-2014 | 6 | 2 | 1KM | |
| ROOMSTER 06> | 2006- | 14 | 2 | 1KC | |
| FABIA/COMBI NF 07> | 2006- | 4 | 2 | ||
| IBIZA 06> | 2005- | 6 | 2 | ||
| CORDOBA 06> | 2005- | 6 | 2 | ||
| FABIA/COMBI 05> | 2004- | 6 | 2 | 1KM | |
| CORDOBA/SE241 | 2002-2005 | 6 | 2 | ||
| IBIZA | 2001-2005 | 6 | 2 | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 14 | 2 | 1KN | |
| FABIA/COMBI | 1999-2004 | 6 | 2 | 1KM | |
| CORDOBA/VARIO | 1999-2002 | 6 | 2 | AE | |
| POLO CLASSIC/VARIANT | 1999-2001 | 4 | 2 | AE | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 14 | 2 | PR:1KN | |
| GOLF VAR./VENTO | 1996-1999 | 6 | 2 | PR:1KM | |
| POLO CLASSIC/VARIANT | 1996-1999 | 6, 4 | 2 | PR:1KM | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 6 | 2 | PR:1KM | |
| Golf | 1996-1997 | 6 | 2 | PR:1KM | |
| Polo Classic 96 | 1995-1996 | 6 | 2 | ||
| Golf 96 | 1995-1996 | 6 | 2 | ||
| Golf Var./Vento 96 | 1995-1996 | 6 | |||
| Golf Cabrio | 1994-1996 | 6 | 2 | ||
| Golf Var./Vento 95 | 1994-1995 | 6 | 2 | ||
| Golf/Ecomatic 95 | 1994-1995 | 6 | 2 | ||
| Jetta GLX 94 | 1993-1994 | 6 | 2 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 6 | 2 | ||
| Audi 90 93 | 1992-1993 | 6 | |||
| Passat | 1989-1991 | 6 | 2 | ||
| Audi 80/90 | 1989-1991 | 6 | 2 | ||
| Audi 80/90 | 1987-1989 | 6 | 2 | ||
| Golf/Jetta syn, Rallye | 1985-1991 | 6 | 2 | ||
| CADDY | 1982-1992 | 1 | 2 |
Other markets (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Fabia NF HB | 2015-2018 | 6 | 2 | 1KM | |
| New Polo (SVW) | 2010-2019 | 6 | 2 | ||
| POLO JIN QIN "CN"06> | 2006- | 6 | 2 | 1KB | |
| POLO JIN QV "CN"06> | 2006- | 6 | 2 | 1KB | |
| POLO-BRASIL | 2002-2006 | 6 | 2 | 1KM | |
| PARATI 4P | 2002-2006 | 1 | |||
| POLO LIM.(SEDAN) "BR" | 2002-2006 | 6 | 2 | 1KM | |
| POLO CLASS./PL. "ZA" | 1996-2003 | 6 | 2 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 6 | 2 | ||
| NOVA PARATI | 1995-2002 | 1 | |||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 6 | 2 | ||
| NOVO GOL/SAVEIRO | 1994-2002 | 1 | |||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 6 | 2 | ABA,ADC |
Diagrams & fitment data powered by oemdiagrams.com
Wheel Brake Cylinder is fitted on: Fabia Jingrui 2008-2014; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; OCTAVIA/COMBI/4X4 01> 2000-; FABIA/COMBI 1999-2004; CORDOBA/VARIO 1999-2002; POLO CLASSIC/VARIANT 1999-2001; OCTAVIA/COMBI/4X4 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Golf Cabrio 1994-1996; Golf Var./Vento 95 1994-1995; Golf/Ecomatic 95 1994-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; Audi 90 93 1992-1993; Passat 1989-1991; Audi 80/90 1989-1991; Audi 80/90 1987-1989; Golf/Jetta syn, Rallye 1985-1991; CADDY 1982-1992; Fabia NF HB 2015-2018; New Polo (SVW) 2010-2019; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; POLO-BRASIL 2002-2006; PARATI 4P 2002-2006; POLO LIM.(SEDAN) "BR" 2002-2006; POLO CLASS./PL. "ZA" 1996-2003; Golf/Jetta "USA","Mex"97>99 1996-1998; NOVA PARATI 1995-2002; Golf Cabrio "USA","MEX"96>99 1995-1998; NOVO GOL/SAVEIRO 1994-2002; Golf/Jetta "USA","MEX"93>96 1992-1996.
