1K0121070 Coolant Pipe
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

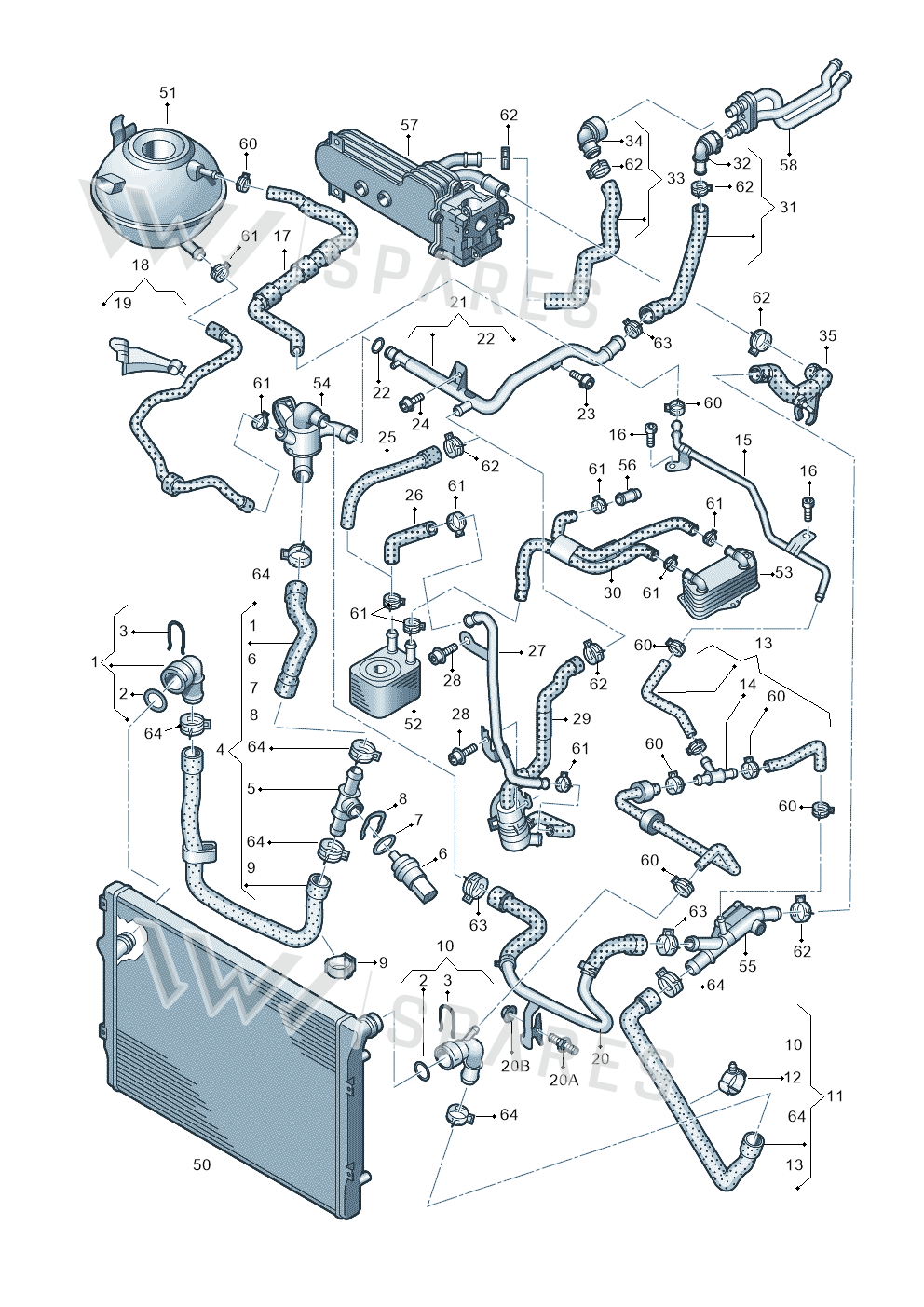

4 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Coupl Piece 1K0122291BM
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 4Hose 1K0122051HE
- 5Tpiece N90693101
- 6Sender 06A919501A
- 7Seal Ring N90316801
- 8Spring 032121142
- 9Bracket 5N0121093C
- 10Coupl Piece 3C0122291
- 11Hose 1K0122101JS
- 12Clip 6R0121093E
- 14Tpiece N90693001
- 16Bolt N10406505
- 17Hose 1K0122447GR
- 18Hose 1K0122109CB
- 19Bracket 1K0133687B
- 20Hose 03L122157E
- 20ABolt N91044801
- 20BCollar Nut N01508210
- 21Water Pipe 03L121065T
- 22Seal Ring 06B121687
- 23Screw N10698101
- 24Screw N90853802
- 25Hose 3C0121058AR
- 25Hose 1K0121058BS
- 26Hose 1K0121062E
- 26Hose 1K0121062A
- 27Water Pipe 1K0121070CF
- 29Part 03L122062
- 30Hose 1K0121086BC
- 30Hose 1K0121086BD
- 30Part 1K0121096BR
- 30Part 1K0121096BS
- 30Hose 1K0121086BB
- 31Hose 1K0122073GE
- 32Coupl Piece 1K0122291J
- 33Hose 1K0122157HG
- 34Coupl Piece 7M0122291
- 35Hose 1K0121157EP
- 50Radiator 1K0121251AB
- 51Tank 1K0121407A
- 52Oil Cooler 038117021E
- 53Oil Cooler 02E409061B
- 54Housing 03L121111AC
- 55Flange 03L121132Q
- 56Connection 038103499
- 58Water Pipe 1K1819857C
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| new beetle | 2011-2016 | 15 | 1 |
| new beetle cabriolet | 2011-2016 | 15 | 1 |
| jetta | 2010-2014 | 15 | 1 |
| Audi A3/S3/quattro | 2005-2007 | 30, 36, 42 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: new beetle 2011-2016; new beetle cabriolet 2011-2016; jetta 2010-2014; Audi A3/S3/quattro 2005-2007.
