1K0121070BC Coolant Pipe
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

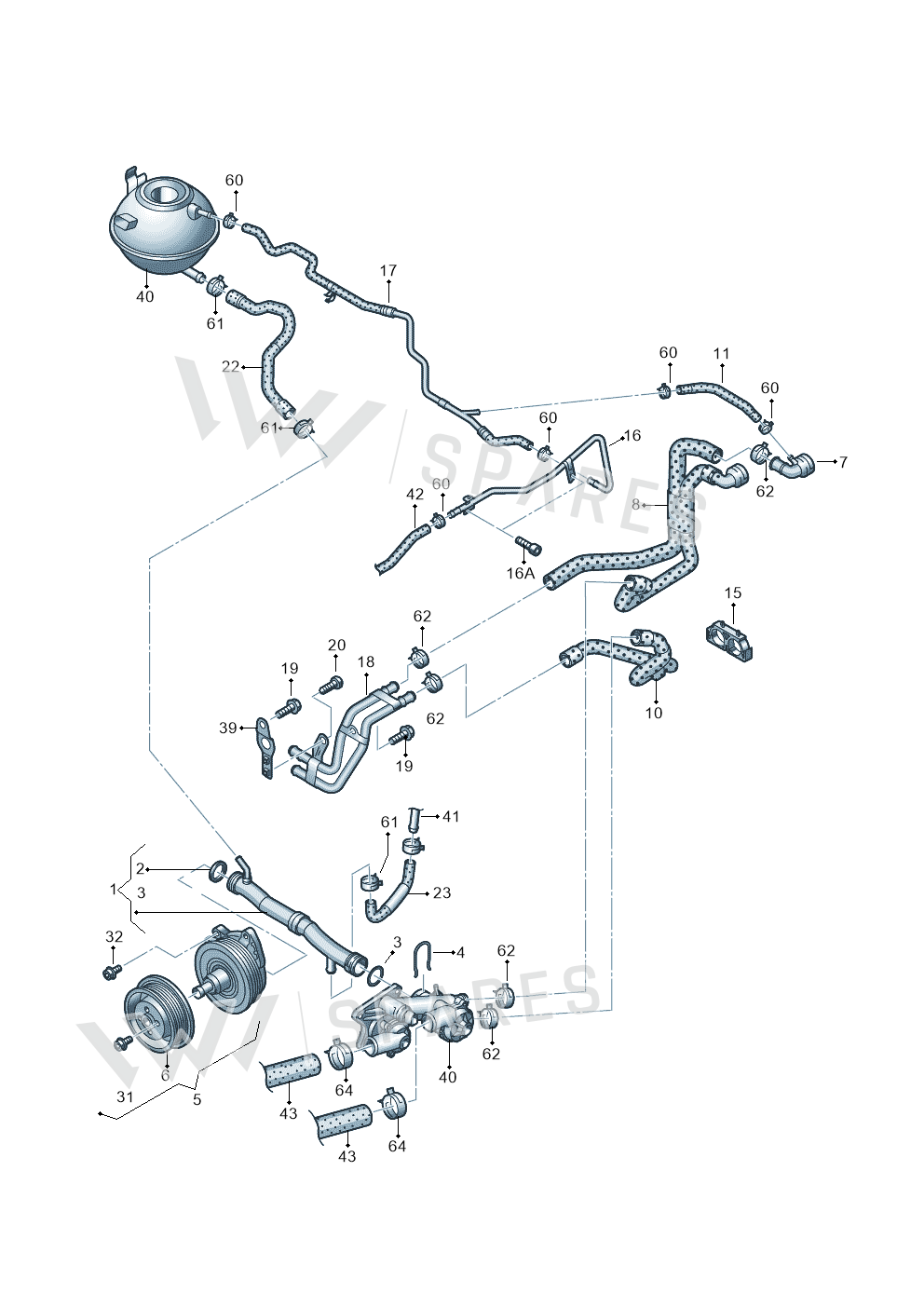

12 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Water Pipe 03C121065F
- 2Seal Ring 03C121665
- 3Seal Ring 03C121666
- 4Spring 03C121142
- 5Water Pump 03C121004JX
- 5Water Pump 03C121004J
- 7Coupl Piece 1K0122291R
- 8Hose 1K0121157DQ
- 8Part 1K0121157EC
- 10Hose 1K0121157ED
- 11Hose 1K0121447CT
- 15Bracket 3C0820495
- 16Water Pipe 1K0121070CA
- 16ABolt N90925202
- 17Water Pipe 1K0122447FB
- 18Water Pipe 03C121151D
- 19Bolt N10216803
- 20Bolt N10009506
- 22Hose 1K0122109BC
- 23Hose 1K0121096AT
- 31Screw N91052201
- 32Screw N91096901
- 39Retaining 03C121079B
- 60Clamp N90686701
- 61Clamp N90686902
- 62Clamp N90687001
- 64Clamp N90687201
Vehicle fitment table12
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| EOS 2.0 | 2008-2010 | 16 | 1 | TF0 |
| Touran 1.9 | 2008-2010 | 16 | 1 | TF0 |
| GOLF VARIANT 07> | 2007- | 16 | 1 | |
| GOLF PLUS 08> | 2007- | 16 | 1 | D4P,D4R,TF0 |
| TIGUAN 08> | 2007- | 8 | 1 | TF0 |
| JETTA 06> | 2006- | 16 | 1 | TF0 |
| TOURAN | 2006- | 16 | 1 | TF0 |
| GOLF PLUS 05> | 2005- | 16 | 1 | TF0 |
| JETTA 06> | 2005- | 16 | 1 | TF0 |
| TOURAN | 2005-2006 | 16 | 1 | TF0 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 16 | 1 | TF0 |
| Golf/Rabbit | 2005-2007 | 16 | 1 | TF0 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: EOS 2.0 2008-2010; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; JETTA 06> 2006-; TOURAN 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; TOURAN 2005-2006; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
