1K0200059BD Lines
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

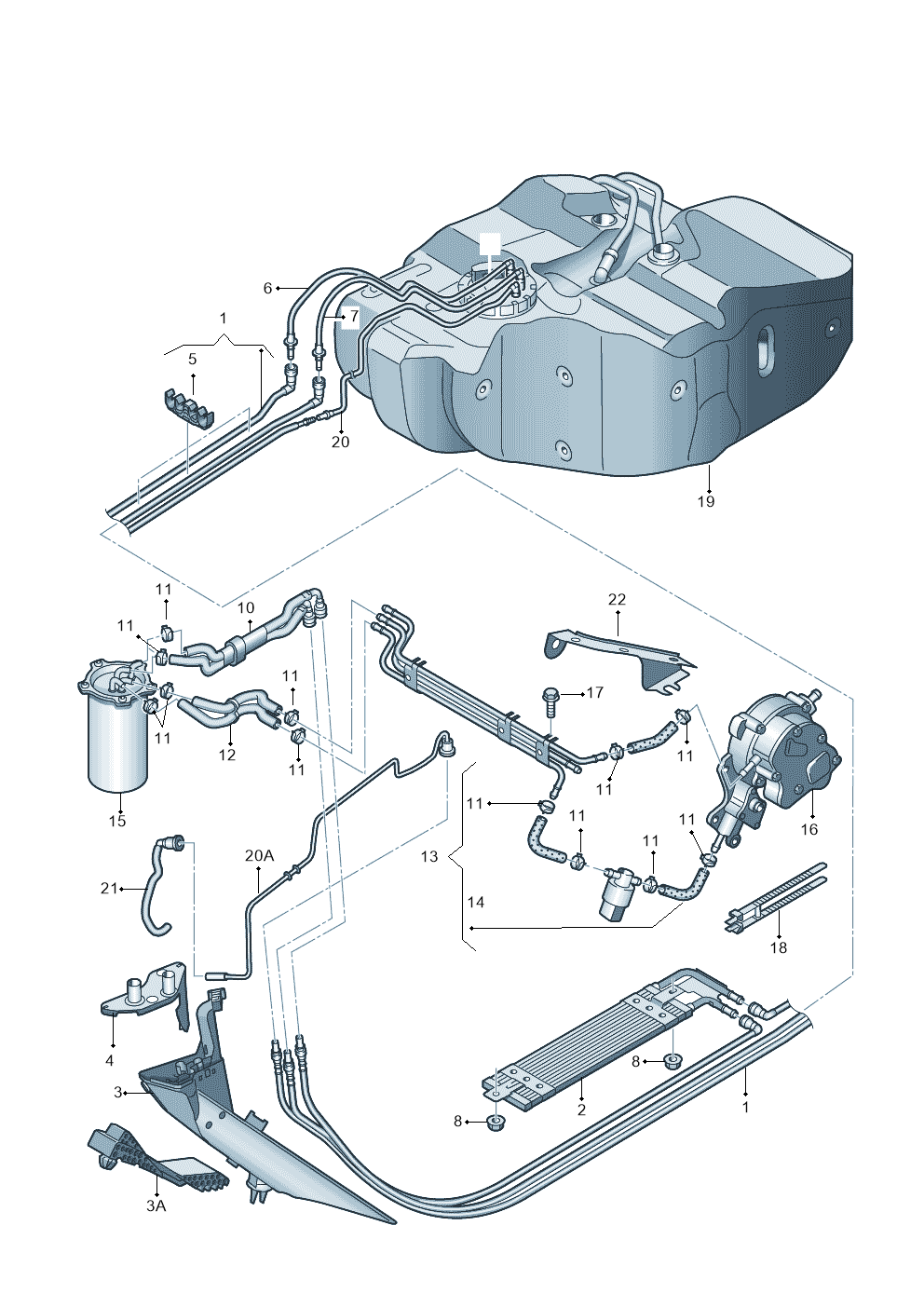

18 vehiclesLines — locate Lines in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Part 1K0200059BA
- 2Radiator 1K0203491D
- 3Heat InsulRight1K0201961C
- 3ASpacerRight1K0201958A
- 4CoverRight1K0201970
- 5Clip 1H0201449
- 6Fuel Line 1K0201293G
- 6Fuel Line 1K0201293D
- 7Fuel Line 1K0201294K
- 7Fuel Line 1K0201294C
- 8Ut Hexagon Nut Self-locking Hexagon Nut N0221464
- 10Pipe 1K0130295G
- 11Clamp N90768301
- 12Pipe 1K0130307M
- 12Pipe 1K0130307L
- 12Repair Set 1K0130307N
- 13Pipe 03G130308K
- 13Pipe 03G130308N
- 13Pipe 1K0130308J
- 13Pipe 3C0130308C
- 14Sensor 038906081B
- 17Bolt N01021527
- 17Bolt N90071102
- 18Binder 4A0820199
- 20AFuel Line 1K0201418B
- 20AFuel Line 1K0201418G
- 21Fuel Line 1T0201418C
- 22Bracket 03G131645
Vehicle fitment table18
Europe (16)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2008-2013 | 1 | |||
| octavia ambiente | 2008-2013 | 1 | |||
| jetta | 2008-2011 | 1 | 1 | 9M9 | |
| Touran 1.9 | 2008-2010 | 1 | |||
| GOLF VARIANT 07> | 2007- | 1 | 1K0 201 973 | ||
| GOLF PLUS 08> | 2007- | 1 | |||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 1 | |||
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 1 | |||
| EOS-Cabriolet-Coupe | 2006- | 1 | |||
| JETTA 06> | 2006- | 1 | 1 | 9M9 | |
| TOURAN | 2006- | 1 | |||
| GOLF PLUS 05> | 2005- | 1 | |||
| Audi A3/S3/quattro | 2005-2007 | 1 | |||
| TOURAN | 2005-2006 | 1 | |||
| OCTAVIA/COMBI/4X4 04> | 2004- | 1 | 1 | 9M1,9M9 | |
| GOLF | 2003-2005 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 1 | |||
| Golf/Rabbit | 2005-2007 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Lines is fitted on: Audi A3 Sportback 2008-2013; octavia ambiente 2008-2013; jetta 2008-2011; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; TOURAN 2006-; GOLF PLUS 05> 2005-; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; OCTAVIA/COMBI/4X4 04> 2004-; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
