1K0820743CG Refrigerant Hose
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

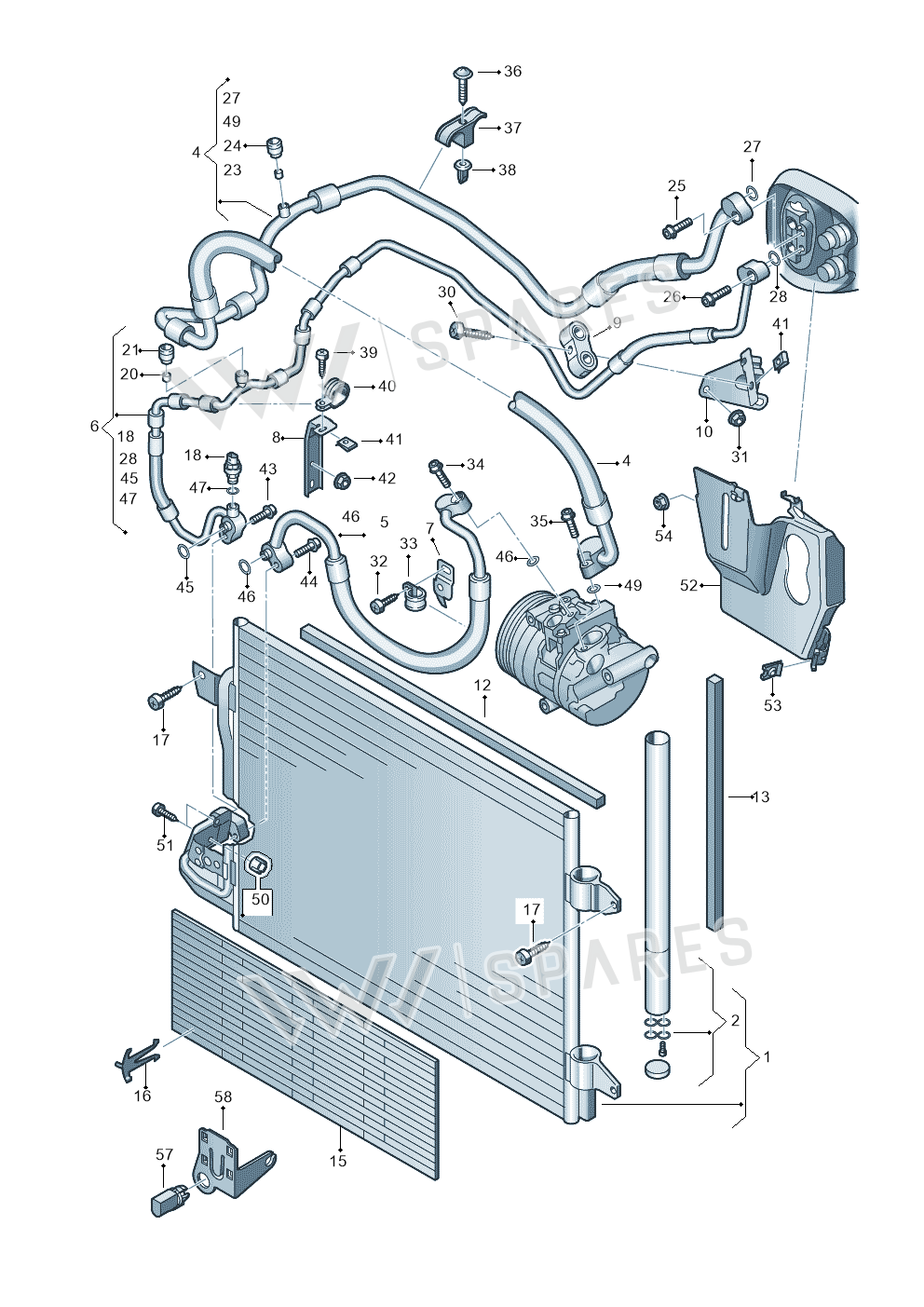

15 vehiclesRefrigerant Hose — locate Refrigerant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1A C Conden 1K0820411AC
- 2Part 1K0298403A
- 2Part 5K0298403
- 4Line 1K0820743BQ
- 4Hose 1K0820743BT
- 4Line 1K0820743FN
- 5Hose 1K0820721BE
- 5Hose 1K0820721BF
- 5Hose 1K0820721BQ
- 5Line 1K0820721CB
- 6Hose 1K0820741AT
- 6Line 1K0820741BA
- 6Line 1K0820741BN
- 8Bracket 1K0820769D
- 9Clip 1J0820774
- 10Bracket 1K2820769
- 12Seal 321820061D
- 13Seal 321819017
- 15Grille 1K0820746
- 16Clip 3D0867646
- 17Bolt N90817003
- 18Sensor 1K0959126D
- 20Valve 8E0820855
- 21Part 8A0820871AB
- 24Part 357820809B
- 25Screw N10414402
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 31Ut Hexagon Nut Self-locking Hexagon Nut N90289105
- 32Bolt N10486501
- 33Clamp N0206267
- 36Screw N0439394
- 37Clip 1J0820774A
- 38Part 811807577C
- 40Clamp N10236604
- 41Part N90755702
- 42Collar Nut N90175205
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 49Seal Ring 8E0260749C
- 50Bracket 1K0820758
- 51Screw N10553902
- 57Sensor 8Z0820535
- 58Bracket 5M0820536A
Vehicle fitment table15
Europe (13)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Golf Plus | 2011-2014 | 4 | 1 |
| Altea XL Reference | 2010-2013 | 4 | 1 |
| Leon Stylance | 2010-2012 | 4 | 1 |
| Golf Plus 1.6 | 2009-2011 | 4 | 1 |
| octavia ambiente | 2008-2013 | 4 | 1 |
| GOLF VARIANT 07> | 2007- | 4 | 1 |
| GOLF PLUS 08> | 2007- | 4 | 1 |
| ALTEA 07> | 2006- | 4 | 1 |
| GOLF PLUS 05> | 2005- | 4 | 1 |
| LEON 06> | 2005- | 4 | 1 |
| TOLEDO 05> | 2004- | 4 | 1 |
| OCTAVIA/COMBI/4X4 04> | 2004- | 4 | 1 |
| GOLF | 2003-2005 | 4 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 4 | 1 |
| Golf/Rabbit | 2005-2007 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Hose is fitted on: Golf Plus 2011-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Golf Plus 1.6 2009-2011; octavia ambiente 2008-2013; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
