1K6877233A Water Drainage Hose
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

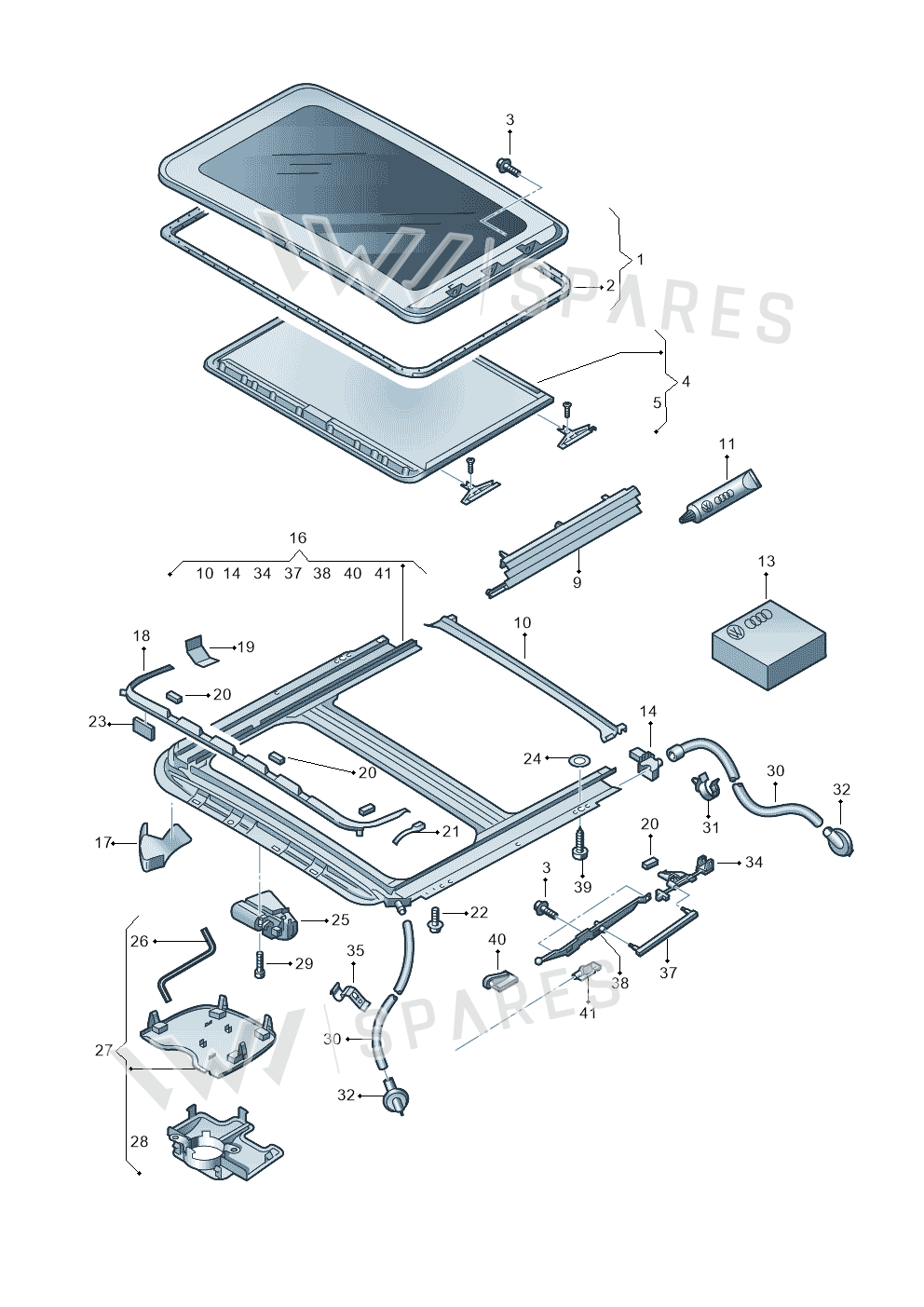

6 vehiclesWater Drainage Hose — locate Water Drainage Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Glasspanel 1K6877071
- 2Seal 8D0877297
- 3Bolt WHT001273
- 4Frame 1K0877255A
- 5Glidepiece 4B0877165
- 9BellowsRight8D0877782B
- 9BellowsLeft8D0877781B
- 10Channel 8D0877633C
- 11Grease G00045002
- 13Butyl Strp AKL45000505
- 14Part 1K0898200A
- 14End Piece 1K0898200
- 16Frame 1K6877049
- 18Deflector 1K6877655A
- 19Bearing 8D5898671A
- 20Buffer 8D5898652
- 21Spring 8D5877975
- 22Bolt N90749802
- 24Washer N90590803
- 26Crank 1K0875699
- 29Bolt N90884801
- 30Hose 1K0877231
- 31Bracket 1K6877244
- 32Valve 1K6877236
- 32Drain Tube 1T0877242A
- 34GuideRight8D5877482
- 34GuideLeft8D5877481
- 35Bracket 1K0877244
- 37Spacer 8D5877421
- 38GuideRight8D5877152A
- 38GuideLeft8D5877151A
- 39Screw N90515401
- 40GuideRight8D5877484
- 40GuideLeft8D5877483
- 41Guide 8D5898015
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf | 2011-2013 | 30 | 2 |
| Golf | 2009-2014 | 30, 24 | 2 |
| golf 2.0 | 2008-2011 | 30 | 2 |
| GOLF | 2003-2005 | 30 | 2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 30 | 2 |
| Golf/Rabbit | 2005-2007 | 30 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Water Drainage Hose is fitted on: Golf 2011-2013; Golf 2009-2014; golf 2.0 2008-2011; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
