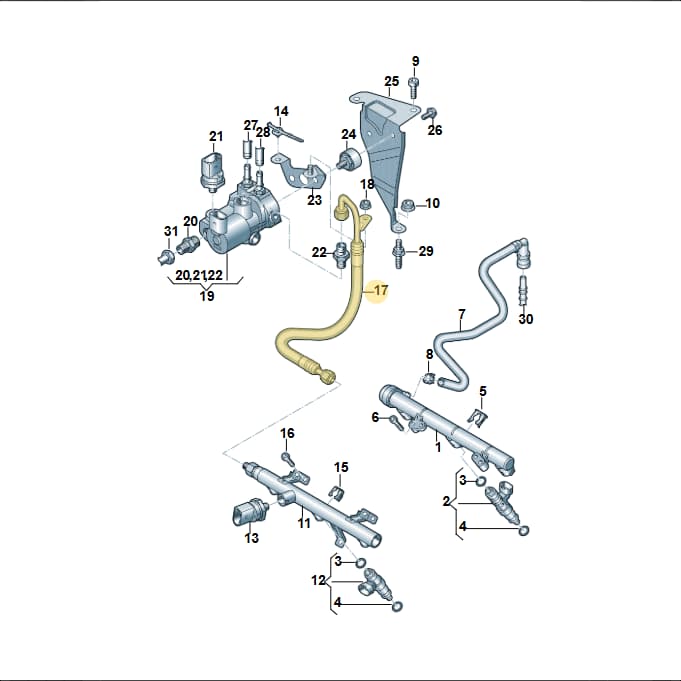

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Fuel Line, part number 1S0133321C. This critical component is responsible for transporting fuel from the fuel tank to the engine's fuel rail, ensuring a consistent and reliable fuel supply for combustion. It is located within the fuel delivery system, connecting to the fuel rail assembly. The line measures approximately 0.4 meters in length and weighs 0.162 kg. Opting for a genuine OEM fuel line guarantees the correct material composition for fuel resistance, precise connection fittings, and proper routing, which are essential for preventing leaks and maintaining fuel system safety and efficiency.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 6.5 × 5.5 cm
- Shipping weight
- 0.16 kg
Parts diagram & fitment
3 vehiclesFuel Line — locate 1S0133321C Audi Fuel Line | Fuel System Component in the official exploded view and explore the surrounding assembly.
Parts in this assembly(32)
- 1Rail 04C133317M
- 1Rail 04C133317J
- 2Valve 04E906031F
- 2Valve 04C906031D
- 3Seal Ring 07C906149
- 3Seal Ring 06A906145
- 3Seal Ring WHT005422B
- 4Seal Ring 06A906149B
- 4Seal Ring WHT007801
- 5Clip 036133047G
- 5Clip 04C133047
- 6Screw N10547902
- 7Fuel Line 04C133723K
- 8Clamp N90686701
- 9Bolt N91042302
- 10Collar Nut N10609203
- 11Rail 04C133317H
- 12Gas Valve 03C906039A
- 13Sensor 04E906054
- 13Sensor 06H906051F
- 14Cable Tie 3W0971838
- 15Clip 06A133047A
- 16Bolt WHT002603
- 18Collar Nut N01508210
- 19Regulator 1S0906011B
- 20Insert 1S0201287A
- 21Sensor 06J906051F
- 22Connection 2K0201287A
- 23Bracket 1S0133687A
- 24Rubber Bush 1T0959209
- 25Retaining 1S0906109A
- 26Bolt N10680303
Diagrams & fitment data powered by oemdiagrams.com
1S0133321C Audi Fuel Line | Fuel System Component is fitted on: up! BlueMotion 2011-2016; up! 1.0 BlueMotion 2016-2023; Citigo 2011-2019.
