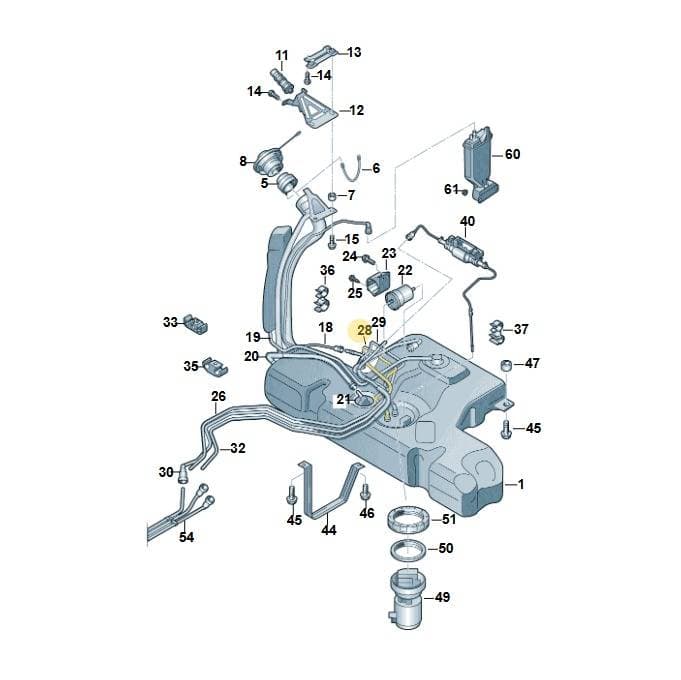

Number 28 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 3C0201294B. This fuel line transports fuel from the tank to the engine. It is located in the fuel system assembly. The part has dimensions of 0.335m length, 0.07m width, and 0.07m height, weighing 0.0225 kg. Genuine OEM fuel lines ensure precise fuel delivery and prevent leaks, maintaining optimal engine performance and safety.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33.5 × 7 × 7 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
2 vehiclesFuel Line — locate 3C0201294B Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Container 3C0201060G
- 5Connection 3C0201131
- 6Line 1H9201142B
- 7Bush 1J0201048C
- 8Part 3AA201550J
- 12Pipe Holde 3C0201503B
- 13Plate 3C0201243A
- 14Bolt N91079901
- 15Bolt N90693804
- 18Line 3C0201160B
- 19Line 3C0201995D
- 20Line 3C0201993B
- 22Filter 1K0201051K
- 23Retainer 3C0201505
- 24Bolt N10653201
- 25Screw N90496802
- 26Line 3C0201160D
- 29Fuel Line 3C0201293D
- 30Fuel Line 3C0201293H
- 32Pipe 3C0201215A
- 33Clip 3D0201449K
- 35Dbl Clip 1J0201270A
- 36Dbl Clip N10427801
- 37Dbl Clip N10401902
- 40Metering 3AA201607L
- 44Strap 3C0201656A
- 45Bolt N0195307
- 46Bolt N0195389
- 47Bush 1K0201048A
- 51Part 1K0201375
- 54Lines 3C0200059AJ
- 54Lines 3C0200059AH
- 60Container 3C0201801E
- 61Collar Nut N01508210
Diagrams & fitment data powered by oemdiagrams.com
3C0201294B Volkswagen Fuel Line | Genuine OEM is fitted on: passat estate 2008-2011; Passat saloon 2010-2015.
