Product overview

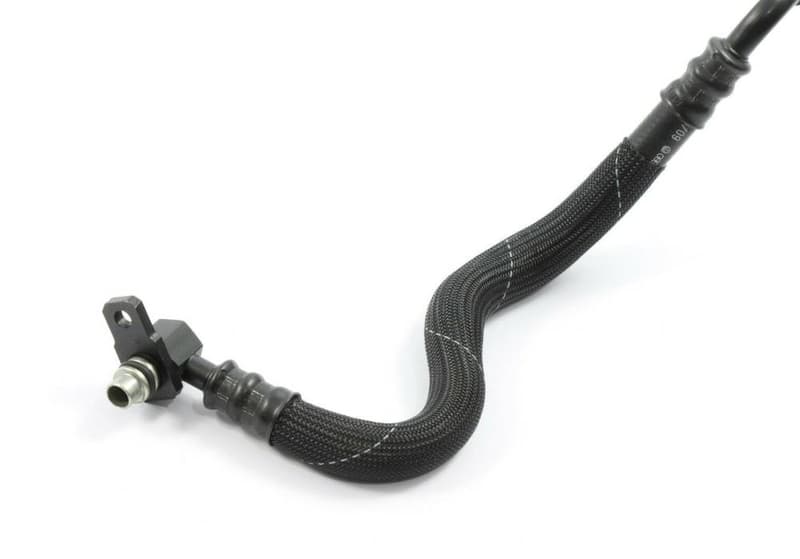

Genuine OEM Volkswagen Gearbox Oil Pressure Line, part number 3D0317821J. This line is designed to supply pressurized oil to various gearbox components, crucial for their lubrication and hydraulic function. Constructed from durable metal and reinforced rubber hose, it weighs 0.627 kg and measures approximately 0.81 meters in length. Using a genuine OEM line ensures correct routing geometry, pressure resistance, and material compatibility, vital for gearbox reliability and performance.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 81 × 41 × 15.1 cm
- Shipping weight
- 0.63 kg
Parts diagram & fitment

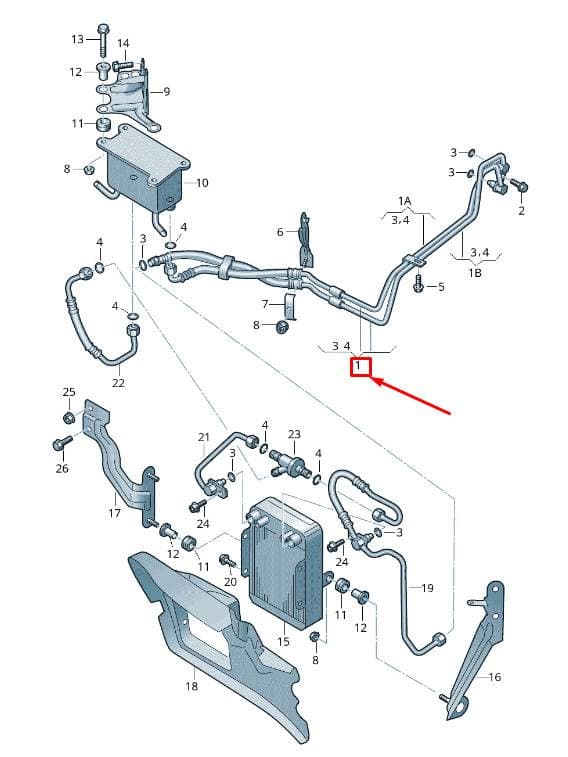

3 vehiclesOil Pressure Line — locate 3D0317821J Volkswagen Gearbox Oil Pressure Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(36)
- 1Line 3D0317810D
- 1ALineLeft3D0317821H
- 1ALineRight3D0317822G
- 1BLine 3D0317822H
- 1BLine 3D0317822J
- 2Bolt N0903295
- 3Seal Ring N90666003
- 4Seal Ring N90303801
- 5Bolt N10009506
- 5Bolt N10171105
- 6Bracket 3D0317827AF
- 6Bracket 3D0317827T
- 7Clamp 4B3317833B
- 8Bolt N10719101
- 8Bolt N90533005
- 8Bolt N10655401
- 9Bracket 3D0317827S
- 9Bracket 3D0317827AE
- 10Oil Cooler 3D0409061H
- 10Oil Cooler 3D0409061G
- 11Rubber Bush 4D0317867A
- 12Mounting 4E0903127
- 13Bolt N10528402
- 14Bolt N90784702
- 14Bolt N01950213
- 15Oil Cooler 4D0317021C
- 16Bracket 3D0317827K
- 17Bracket 3D0317827AC
- 18Air Guide 3D0317017
- 19Line 3D0317815D
- 20Collar Nut N90215805
- 21Line 3D0317814B
- 22Line 3D0317813A
- 23Switch 4D0317027
- 24Screw N10226103
- 25Part N90508302
Diagrams & fitment data powered by oemdiagrams.com
3D0317821J Volkswagen Gearbox Oil Pressure Line | Genuine OEM is fitted on: PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
