Product overview
Genuine OEM Volkswagen Oil Pressure Line, part number 3D0317822H. This line is part of the oil system, transmitting oil pressure information or regulating oil flow to components like the oil cooler. It is located within the engine bay, connecting to the oil cooler assembly. As a genuine OEM part, it ensures correct routing and material integrity, preventing leaks and maintaining proper oil system function.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 75.6 × 41.8 × 18.8 cm
- Shipping weight
- 0.68 kg

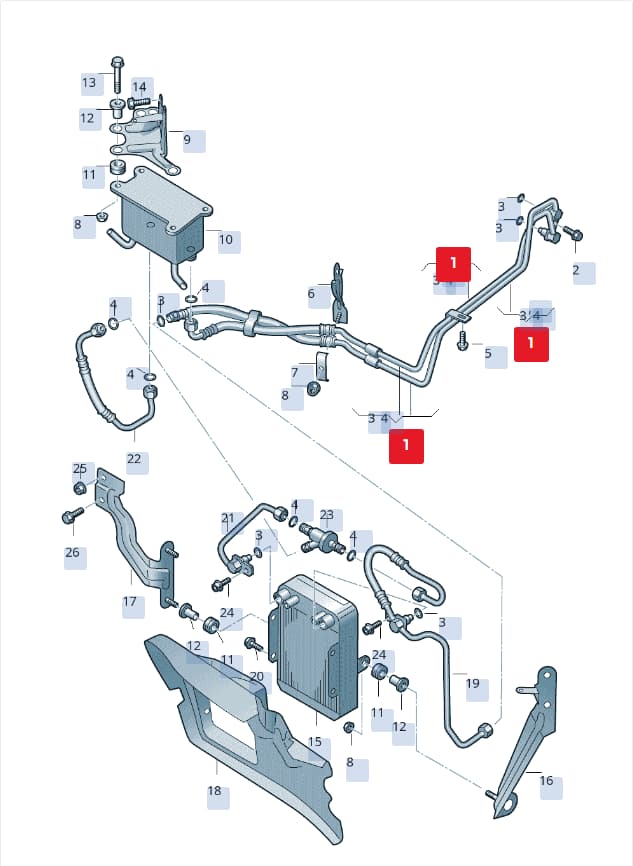

Parts diagram & fitment
2 vehiclesOil Pressure Line — locate 3D0317822H Volkswagen Oil Pressure Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 3D0317822J — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(36)
- 1Line 3D0317810D
- 1ALineLeft3D0317821H
- 1ALineRight3D0317822G
- 2Bolt N0903295
- 3Seal Ring N90666001
- 4Seal Ring N90303801
- 5Bolt N10009503
- 5Bolt N10171105
- 6Bracket 3D0317827AF
- 6Bracket 3D0317827T
- 7Clamp 4B3317833B
- 8Collar Nut N01508210
- 8Bolt N10655401
- 8Bolt N90533005
- 9Bracket 3D0317827S
- 9Bracket 3D0317827AE
- 10Oil Cooler 3D0409061H
- 10Oil Cooler 3D0409061G
- 11Rubber Bush 4D0317867A
- 12Mounting 4E0903127
- 13Bolt N10528401
- 14Bolt N90784701
- 14Bolt N0195024
- 15Oil Cooler 4D0317021C
- 16Bracket 3D0317827K
- 17Bracket 3D0317827AC
- 18Air Guide 3D0317017
- 19Line 3D0317815D
- 20Collar Nut N90215805
- 21Line 3D0317814C
- 22Line 3D0317813A
- 23Switch 4D0317027
- 24Screw N10226102
- 25Part N90508302
- 26Bolt N10009506
- 26Bolt N10009205
Diagrams & fitment data powered by oemdiagrams.com
3D0317822H Volkswagen Oil Pressure Line | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-.
