3D0616013B Valve Unit
- 3D0616013ANot stocked
Dec 2005 - 3D0616013BThis pageNot stocked
Sep 2017 - 3D0616013CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

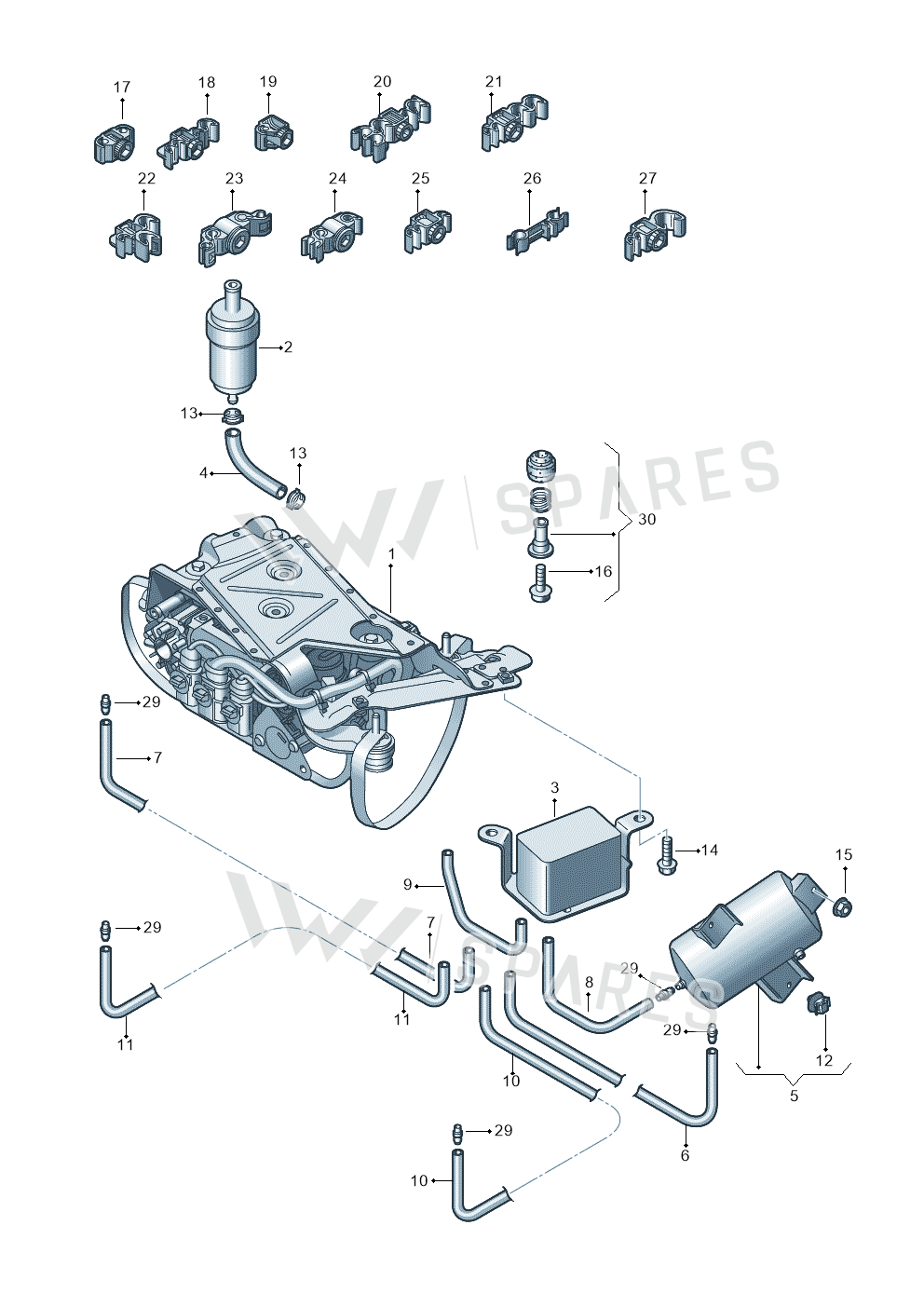

4 vehiclesValve Unit — locate Valve Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Assembly 3D0616005M
- 2Silencer 4E0616095A
- 2Silencer 4Z7616012
- 4Hose 3D0616091
- 5Press Res 3D0616201
- 6LineLeft3D0616711F
- 7LineRight3D0616712E
- 8Line 3D0616715E
- 9Line 3D0616716
- 10LineLeft3D7616719A
- 10LineLeft3D0616719F
- 11LineRight3D0616720H
- 11LineRight3D0616720J
- 11LineRight3D7616720B
- 11LineRight3D7616720C
- 12Clip 4B0616741D
- 13Clamp N90686701
- 14Bolt N10005306
- 15Part N90508302
- 16Screw N10080204
- 17Clip 3D0201449E
- 18Clip 3D0201449F
- 19Clip 3D0201449G
- 20Clip 3D0201449H
- 21Clip 3D0201449L
- 22Clip 3D0201449N
- 23Bracket 3D0611797B
- 24Bracket 3D0611797E
- 25Clip 3D0616741
- 26Clip 3D0616741A
- 27Clip 3D0616741B
- 29Connection 4B0616751
- 30Fixing Set 3D0698505
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 3 | 1 | |
| phaeton 4motion | 2008-2010 | 3 | 1 | |
| PHAETON 08> | 2007- | 3 | 1 | 1BK |
| Phaeton (lang) | 2003-2006 | 3, 42 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Valve Unit is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
