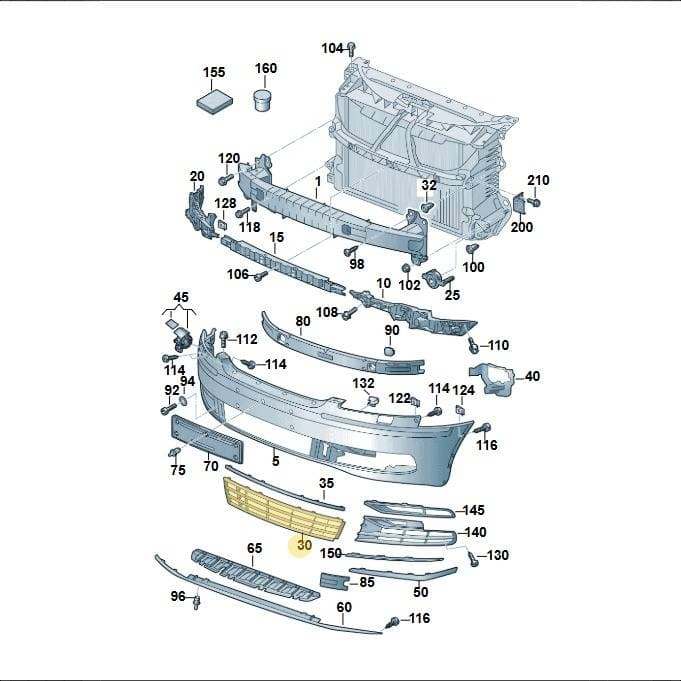

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Grille, part number 3D0853677M3FZ. This is a front grille, identified by the '3FZ' color code, indicating a black finish. It is part of the vehicle's exterior bodywork, contributing to aerodynamics and aesthetics. Genuine OEM parts are manufactured to precise specifications for perfect fit and factory appearance.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 84 × 15 × 9.1 cm
- Shipping weight
- 0.82 kg
Parts diagram & fitment
1 vehicleBlack — locate 3D0853677M3FZ Volkswagen Grille | Black 3FZ in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Bumper 3D0807105AN
- 1Bumper 3D0807105AJ
- 5Trim 3D0807217DJ
- 5Trim 3D0807217DK
- 5Trim 3D0807217DC
- 10Profile 3D0807049F
- 15Profile 3D0807192C
- 20Profile 3D0807050F
- 25Adjustpart 8E0857049A
- 30Grille 3D0853677M
- 30Grille 3D0853677L
- 35TrimLeft3D0853101C
- 35TrimRight3D0853102A
- 35Trim 3D0853146
- 35TrimLeft3D0853101B
- 40PartRight3D0807262
- 40PartLeft3D0807261
- 45PartRight3D0807928E
- 45PartLeft3D0807927E
- 50Bump StripRight3D0807718G
- 50Bump StripLeft3D0807717G
- 60Spoiler 3D0805903E
- 65Cross Member 3D0807651
- 70Bracket 5M0807287B
- 70Bracket 3D0807287K
- 75Spring Rivet N0385491
- 80Filler Piece 3D0807248F
- 85Filler Piece 3D0807248G
- 85Filler Piece 3D0807248H
- 90Underlay 867955499
- 92Bolt N10442204
- 94Washer N01166620
- 96Spring Rivet N0385501
- 98Attach 3D0805249
- 100Part N10596201
- 100Part N90833801
- 102Collar Nut N90908302
- 104Bolt N90786502
- 106Bolt N90788402
- 108Bolt N90816301
- 110Bolt N90684103
- 112Bolt N90825901
- 114Bolt N90651302
- 114Bolt N90775001
- 116Bolt N10354602
- 118Bolt N90862302
- 120Bolt N90648402
- 122Part N90970702
Diagrams & fitment data powered by oemdiagrams.com
3D0853677M3FZ Volkswagen Grille | Black 3FZ is fitted on: phaeton 4motion 2010-2016.
