3D5877233 Water Drainage Hose
- 3D5877233This pageNot stocked
Jun 2019 - 5G0877228Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

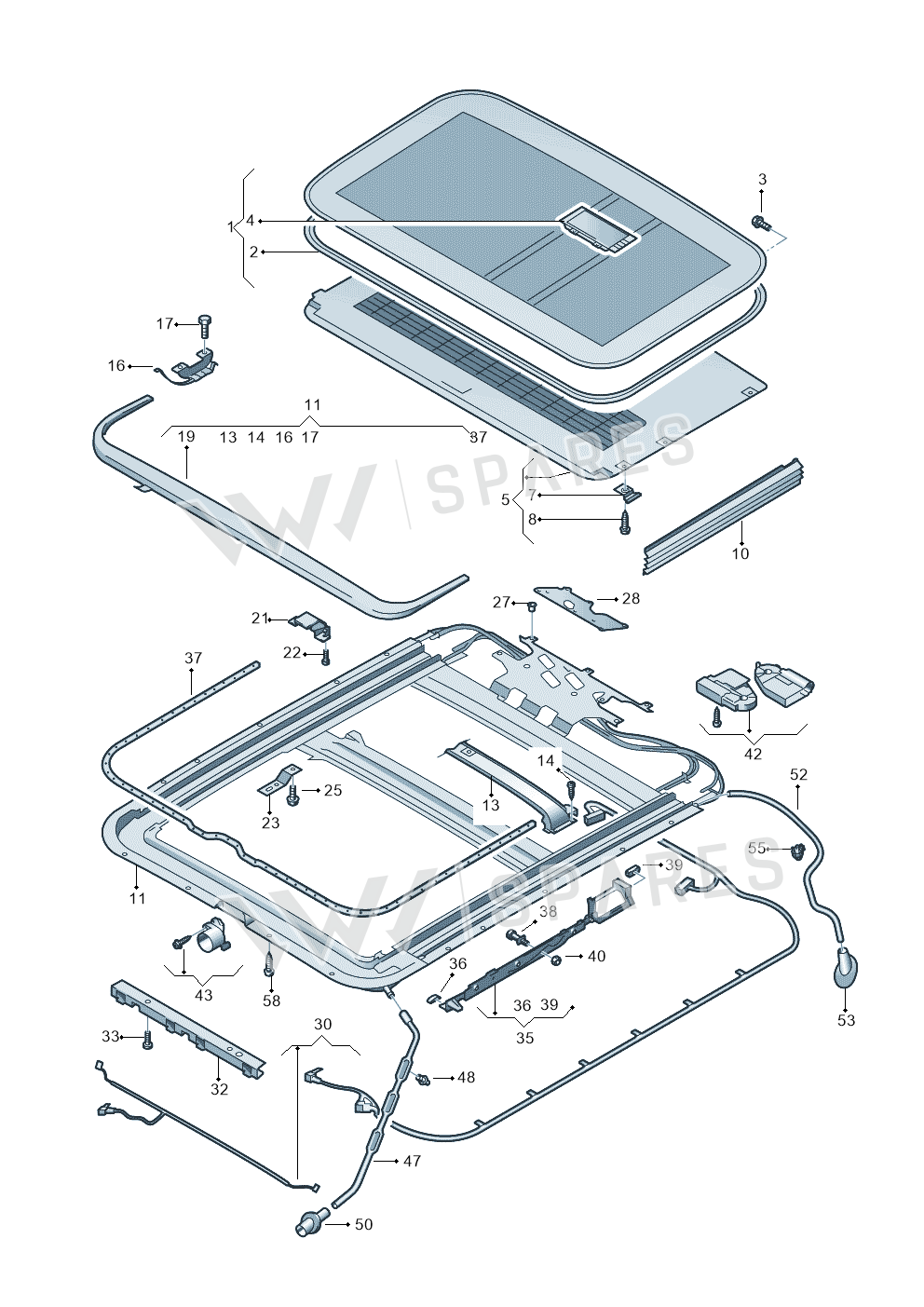

4 vehiclesWater Drainage Hose — locate Water Drainage Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Glasspanel 3D5877071B
- 1Glasspanel 3D5877071
- 2Seal 3D5877297
- 3Bolt 8D0877721C
- 4Converter 4B0907207A
- 5Frame 3D5877255H
- 5Part 3D5877255C
- 7Glidepiece 3D0877165
- 8Bolt 3D0877721
- 10TrimRight3D5877790
- 10TrimLeft3D5877789
- 11Part 3D5877049A
- 11Part 3D5877049
- 13Channel 3D0877633
- 14Bolt 3D0877722
- 16BearingLeft3D0877485
- 16BearingRight3D0877486
- 17Bolt N0102018
- 19Deflector 3D5877651B
- 19Deflector 3D5877651A
- 21Toggl CtchRight3D0877682
- 21Toggl CtchLeft3D0877681
- 22Bolt 3D0877099
- 23BracketLeft3D0858307A
- 23BracketRight3D0858308A
- 25Bolt N90566602
- 35GuideRight3D0877152
- 35GuideLeft3D0877151
- 38Part 3D0877493
- 40Ut Hexagon Nut Self-locking Hexagon Nut N0111812
- 47HoseRight3D5877202
- 47HoseLeft3D5877201
- 48Bush 3D0867334A
- 50Bungs 3D0877236
- 52Hose 3B7877233
- 53Drain Tube 1J0877242
- 55Clip 443971847B
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 52 | 2 | K8B | |
| phaeton 4motion | 2008-2010 | 52 | 2 | K8B | |
| PHAETON 08> | 2007- | 52 | 2 | K8B | |
| Phaeton (lang) | 2003-2006 | 52 | 2 | K8B |
Diagrams & fitment data powered by oemdiagrams.com
Water Drainage Hose is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
