3Q0505224 Axle Guide
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

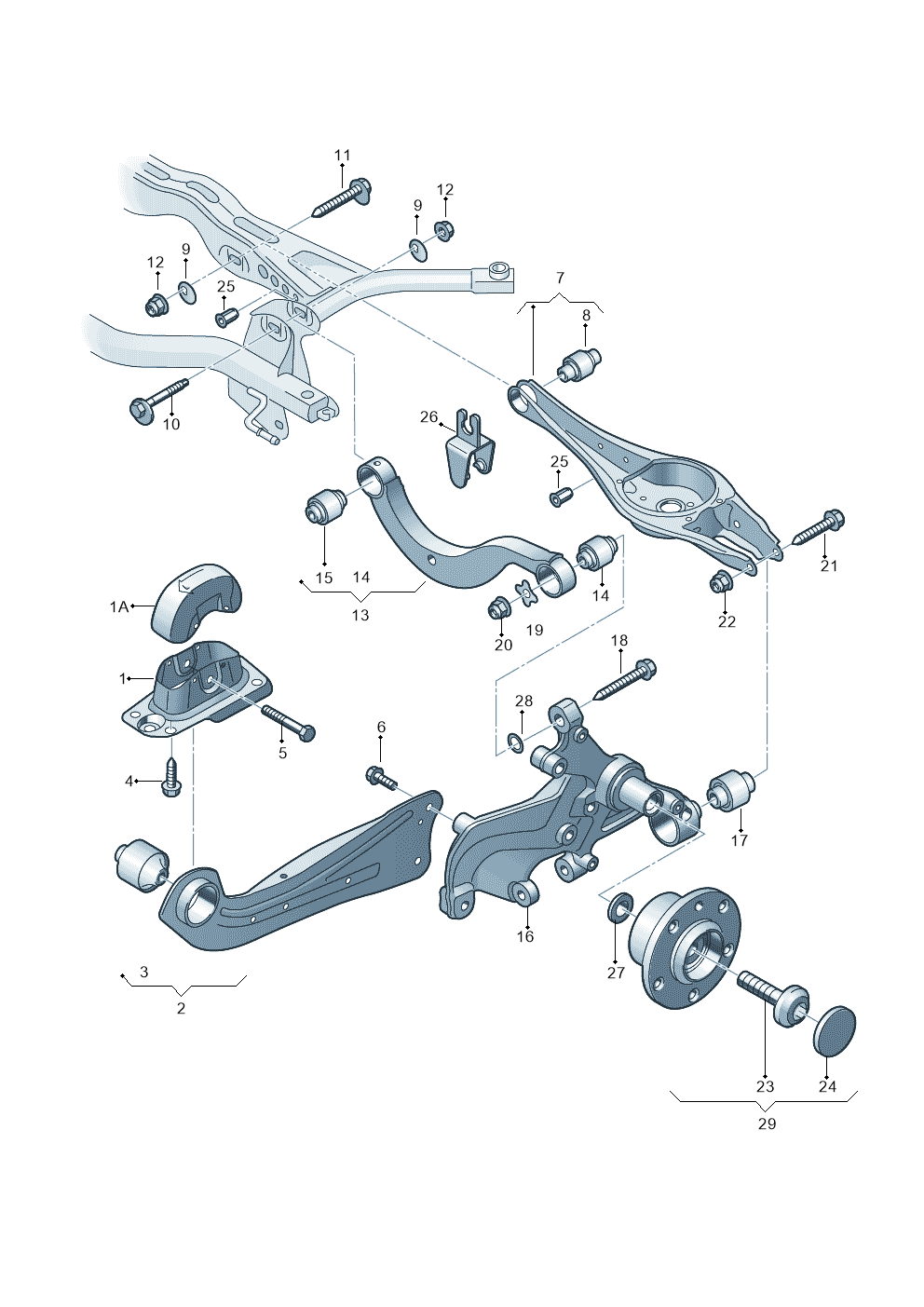

3 vehiclesAxle Guide — locate Axle Guide in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly45
- 1BracketLeft5QD505129A
- 1BracketLeft5QD505129C
- 1BracketRight5QD505130A
- 1BracketRight5QD505130C
- 1AAp cover Cap For Bearing Support cover Cap ForLeft1KD501475A
- 1AAp cover Cap For Bearing Support cover Cap ForRight1KD501476A
- 2Axle GuideLeft3Q0505223
- 2Axle GuideLeft3Q0505223A
- 2Axle GuideRight3Q0505224A
- 2Axle GuideLeft5QD505223A
- 2Axle GuideRight5QD505224A
- 3Mounting 3Q0505541
- 3Mounting 3Q0505541A
- 3Rubber Bush 5QD505541
- 4Bolt N90648402
- 5Bolt N10769501
- 6Bolt N10628401
- 6Bolt WHT005749
- 7Wishbone 3QD505311
- 7Wishbone 3QD505311C
- 7Axle Guide 3QD505311E
- 9Washer WHT000232
- 10Bolt WHT000227
- 11Bolt WHT000228
- 11Bolt WHT001761
- 12Collar Nut N10106402
- 13Wishbone 5Q0505323D
- 13Wishbone 5QD505323C
- 16HousingLeft3QD505433
- 16HousingRight3QD505434
- 17Rubber Bush 5Q0505553
- 17Rubber Bush 5QD505553A
- 18Bolt N91201301
- 19Washer 1K0505193
- 20Collar Nut N10401801
- 21Bolt N10640501
- 21Screw N10883401
- 23Bolt WHT007150
- 24Cap 1JD501249
- 25Part N10597701
- 26Bracket 5Q0614167B
- 26Bracket 5QD614167
- 27Washer WHT000412
- 28Ret Washer WHT000724
- 29Mounting 5QD501611B
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Superb Combi | 2015-2024 | 2 | 1 | 2H4 | |
| Passat saloon | 2014-2024 | 2 | 1 | 2H4 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Magotan 2.0 | 2016- | 2 | 1 | 2H4 |
Diagrams & fitment data powered by oemdiagrams.com
Axle Guide is fitted on: Superb Combi 2015-2024; Passat saloon 2014-2024; Magotan 2.0 2016-.
