Genuine OEM Audi Flexible Tube/Hose, part number 420131385AF. This is a new flexible tube/hose for the fuel system. The part is located in the fuel delivery assembly. Genuine OEM parts ensure precise fluid flow and leak-free operation.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16 × 14 × 3.5 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment

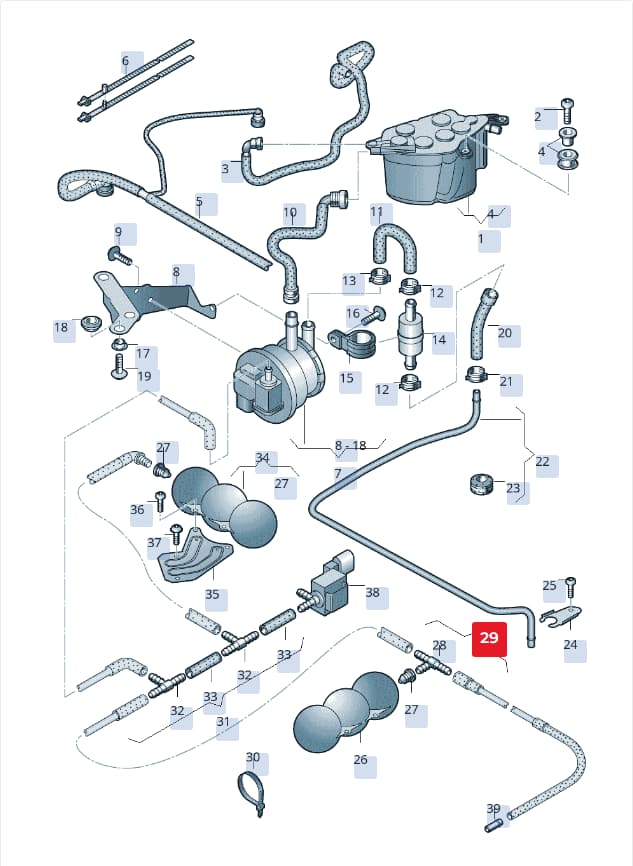

1 vehiclePipe Hose Line — locate 420131385AF Audi Flexible Tube/Hose | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(44)
- 1Container 3D0201801F
- 2Bolt N91054201
- 6Binder 4A0820199
- 7Checkpump 427906201
- 7Checkpump 420906201
- 8Bracket 427201369A
- 8Bracket 420201369
- 9Bolt N90829802
- 10Hose 427201153B
- 10Hose 420201153
- 11Hose 427906272A
- 11Hose 420906272B
- 12Clamp 4B0422379A
- 13Clamp N90686902
- 14Filter 4D0906321C
- 15Clamp N90942301
- 16Bolt N10196103
- 17Bush 1K0129734B
- 18Grommet 8Z0129669A
- 20Hose 427201389B
- 20Hose 420201389B
- 21Clamp N90926401
- 22Pipe 427201411A
- 22Pipe 420201411B
- 23Grommet 431129669
- 24Bracket 420201171
- 25Bolt N10124304
- 27Grommet 431820667
- 28Tpiece 078129737A
- 29Line 420131385K
- 29Line 427131051B
- 29Line 420131385AE
- 30Cable Tie N0209022
- 31Line 427131051A
- 31Line 420131385N
- 32Tpiece 2D0129737
- 34Tank 420131541
- 35Bracket 420809163B
- 35Bracket 427809163B
- 35Bracket 427809163A
- 37Bolt N90939303
- 40Retaining 407201187A
- 42Hose 427201384B
- 45Spacer 4G0611853
Diagrams & fitment data powered by oemdiagrams.com
420131385AF Audi Flexible Tube/Hose | Fuel System is fitted on: Audi R8 qu. 5.2 2012-2015.
