4D0407509J Guide
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

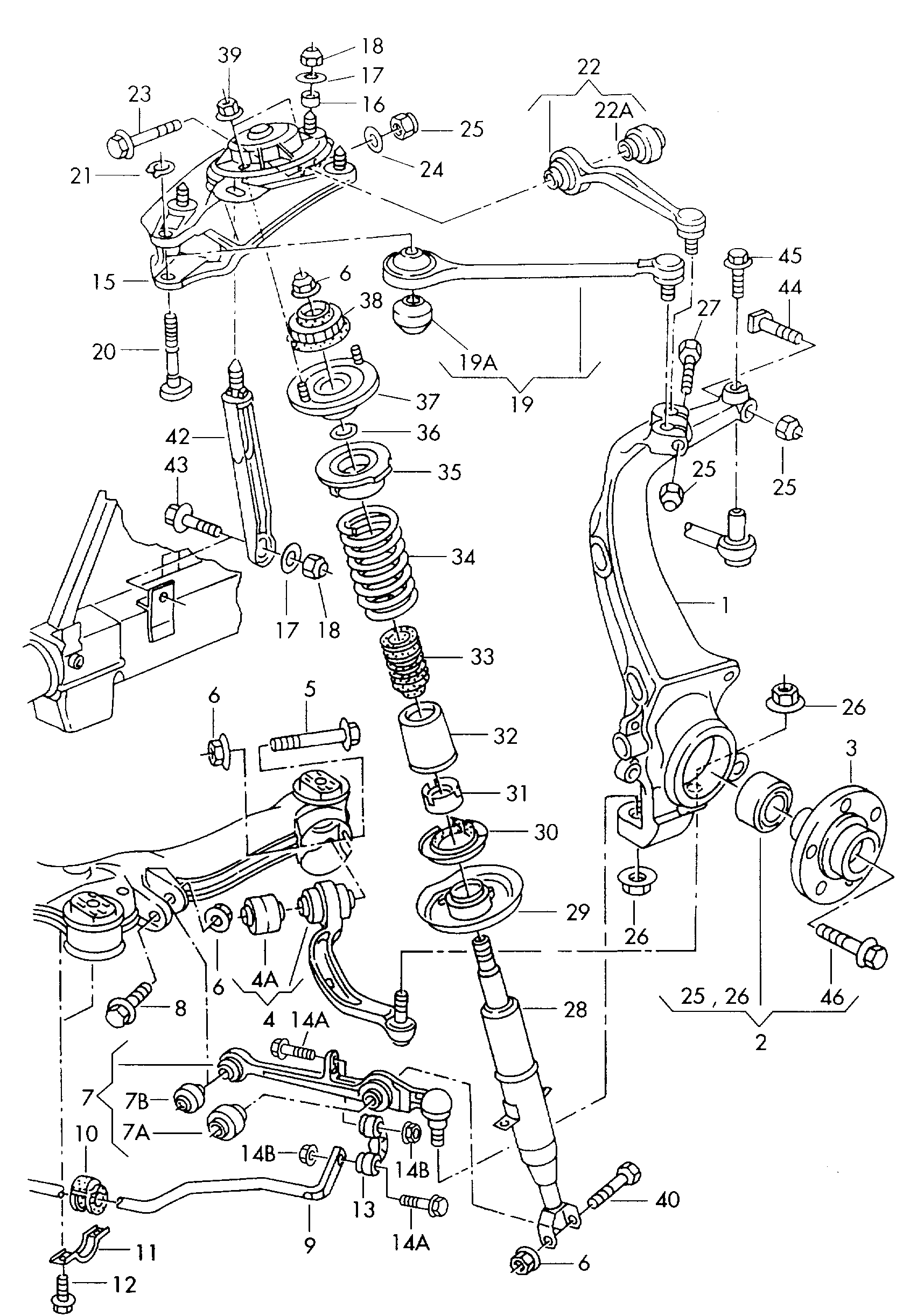

11 vehiclesGuide — locate Guide in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1HousingLeft4D0407257L
- 1HousingRight4D0407258L
- 2Wheel Bear 4B0498625A
- 2Wheel Bear 8D0498625A
- 3Wheel Hub 4D0407615F
- 4GuideRight8E0407694Q
- 4GuideLeft8E0407693Q
- 4ARubber Bush 4D0407183Q
- 5Bolt N90625902
- 6Collar Nut N10106402
- 7Wishbone 4D0407151P
- 7ARubber Bush 4D0407181B
- 7ARubber Bush 4D0407181H
- 7BRubber Bush 4D0407182E
- 8Bolt N10272201
- 9Anti-roll 4D0411309G
- 9Anti-roll 4D0411309H
- 9Anti-roll 4D0411309C
- 10Rubber Bush 4D0411327H
- 10Rubber Bush 4D0411327G
- 11Clamp 4D0411336D
- 12Bolt N10127704
- 13Coupl Rod 4D0411317K
- 14ABolt N10425302
- 14BCollar Nut N10286110
- 15BracketLeft4D0412391E
- 15BracketRight4D0412392E
- 16Sleeve 4D0412393
- 17Washer N90354702
- 18Ut Hexagon Nut Self-locking Hexagon Nut N90635001
- 19Guide 4D0407505A
- 19Guide 4D0407505H
- 19Guide 4D0407505J
- 19ARubber Bush 4D0407516C
- 20Screw 4D0407192B
- 21Ring N0124123
- 22GuideRight4D0407510J
- 22GuideLeft8D0407509G
- 22GuideRight8D0407510G
- 22ARubber Bush 4D0407515C
- 23Bolt 4D0412371B
- 24Washer N01152714
- 26Collar Nut 4D0407644A
- 27Bolt N10131203
- 28Part 4D0413031AQ
- 28Part 4D0413031AR
- 28Shock Abs 4D0413031AD
- 28Shock Abs 4D0413031AE
Vehicle fitment table11
Europe (10)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 quattro | 1999-2002 | 22 | 1 |
| AUDI A8 | 1998-2002 | 22 | 1 |
| Passat syncro/4Motion | 1998-2000 | 14A | 1 |
| Passat | 1997-2000 | 14A | 1 |
| Audi A4/Avant F8D-W-> | 1997-1998 | 14A | 1 |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 14A | 1 |
| Audi A8 | 1996-1998 | 22 | 1 |
| Audi A8 qu. | 1996-1998 | 22 | 1 |
| Audi A4 F>8D-W-.. | 1995-1997 | 14A | 1 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 14A | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 3B0 platform | 14 |
Diagrams & fitment data powered by oemdiagrams.com
Guide is fitted on: Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; 3B0 platform.
