4D0805571 Frame For Coolant Radiator
- 4D0805571This pageNot stocked
Oct 2000
- 4D1823029HCurrent · not stocked4D1823029HCurrent · not stocked
- 4D2823029HCurrent · not stocked4D2823029HCurrent · not stocked
- 4D0805571MCurrent · not stocked4D0805571MCurrent · not stocked
- 4D0823485CCurrent · not stocked4D0823485CCurrent · not stocked
- Current numberN90175205Current number
- 4D0823733Current · not stocked4D0823733Current · not stocked
- 4D0863825BCurrent · not stocked4D0863825BCurrent · not stocked
- Current number4D0807300BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

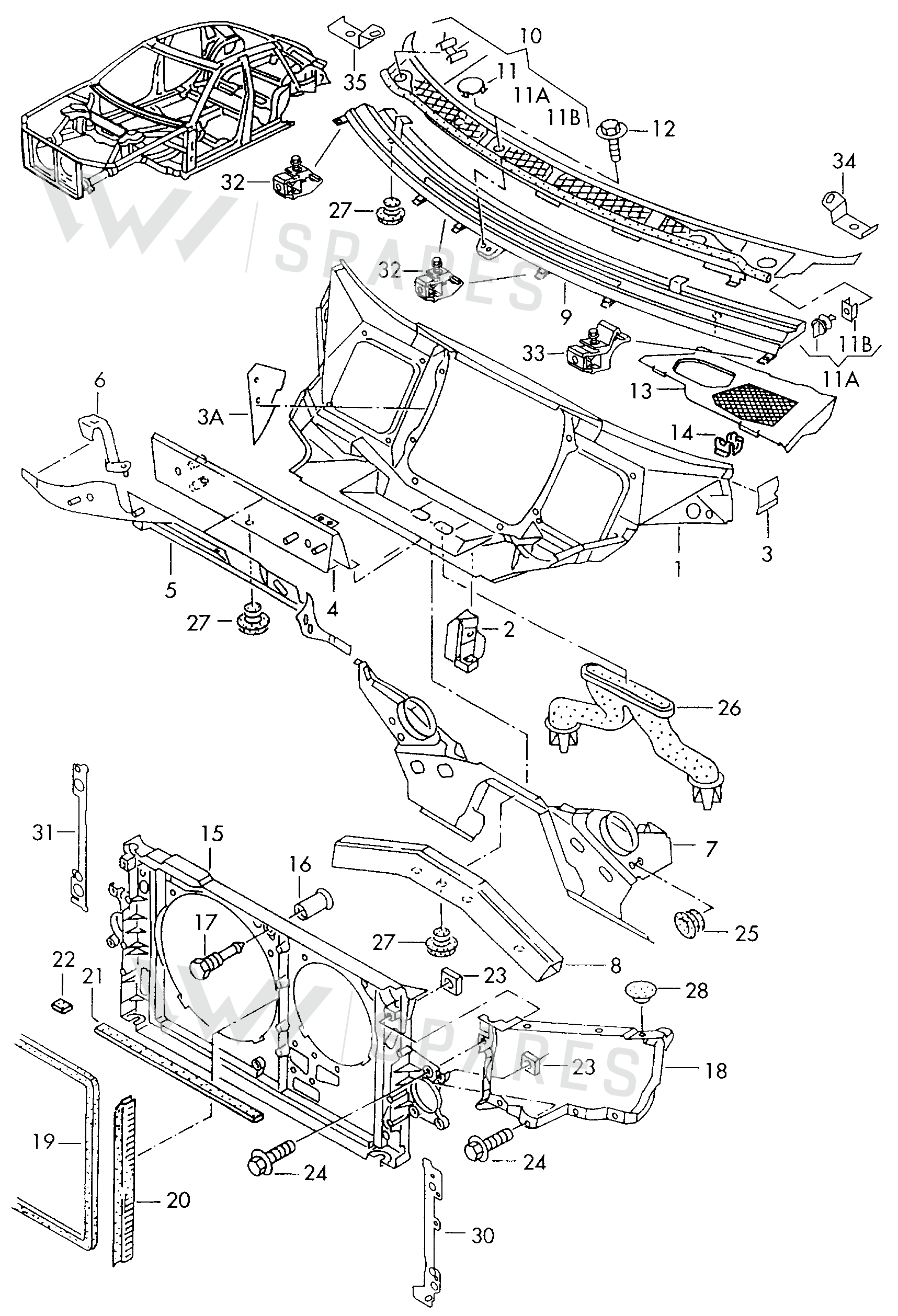

1 vehicleFrame For Coolant Radiator — locate Frame For Coolant Radiator in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Water Box 4D0805275J
- 2BracketRight4D0805534D
- 2BracketLeft4D2805533C
- 2BracketLeft4D1805533C
- 3Clos PlatRight4D0805088D
- 3Clos PlatLeft4D0805087D
- 3APlateRight4D0805602C
- 3APlateLeft4D0805601
- 4Cross Member 4D0806603
- 5Water Box 4D0805265
- 6Bracket 4D0805532
- 7Bot Plate 4D2803147
- 7Bot Plate 4D1803147
- 8Cross Member 4D0805293F
- 9Cross Member 4D0805253D
- 10Panel 4D1805097B
- 10Part 4D1805097H
- 10Panel 4D2805097B
- 11Cover 4D0805585
- 11ARot Knob 8A0807400
- 11BClip 4D0805469
- 12Bolt N10205601
- 13DeflectorRight4D1819404D
- 13DeflectorLeft4D2819403B
- 13DeflectorRight4D2819404F
- 13DeflectorLeft4D1819403G
- 14Clip 4A0819145
- 15Frame 4D0805571B
- 15Frame 4D0805571F
- 15Frame 4D0805571M
- 15Frame 4D0805571AB
- 16Sleeve 4D0805151A
- 17Stud 4D0805759A
- 18SupportLeft4D0805855L
- 18SupportRight4D0805856L
- 19Seal 4D0805875AD
- 20Seal 4D0805875AC
- 21Seal 4D0805875E
- 23Part N0110526
- 24Bolt N10189403
- 26Valve 4D0805271E
- 27Bungs 4D0803583B
- 30SealLeft4D0805875AA
- 31SealRight4D0805875AT
- 32Retainer 4D0806359B
- 33RetainerLeft4D0806359C
- 34PartLeft4D0806359J
- 35PartRight4D0806360J
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 qu. | 1996-1998 | 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Frame For Coolant Radiator is fitted on: Audi A8 qu. 1996-1998.
