4E0614724AM Brake Pipe From Hydraulics To Brake Hose
- 4E0614724AJNot stocked
Apr 2006 - 4E0614724AMThis pageNot stocked
Sep 2008 - 4E0614724ASCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

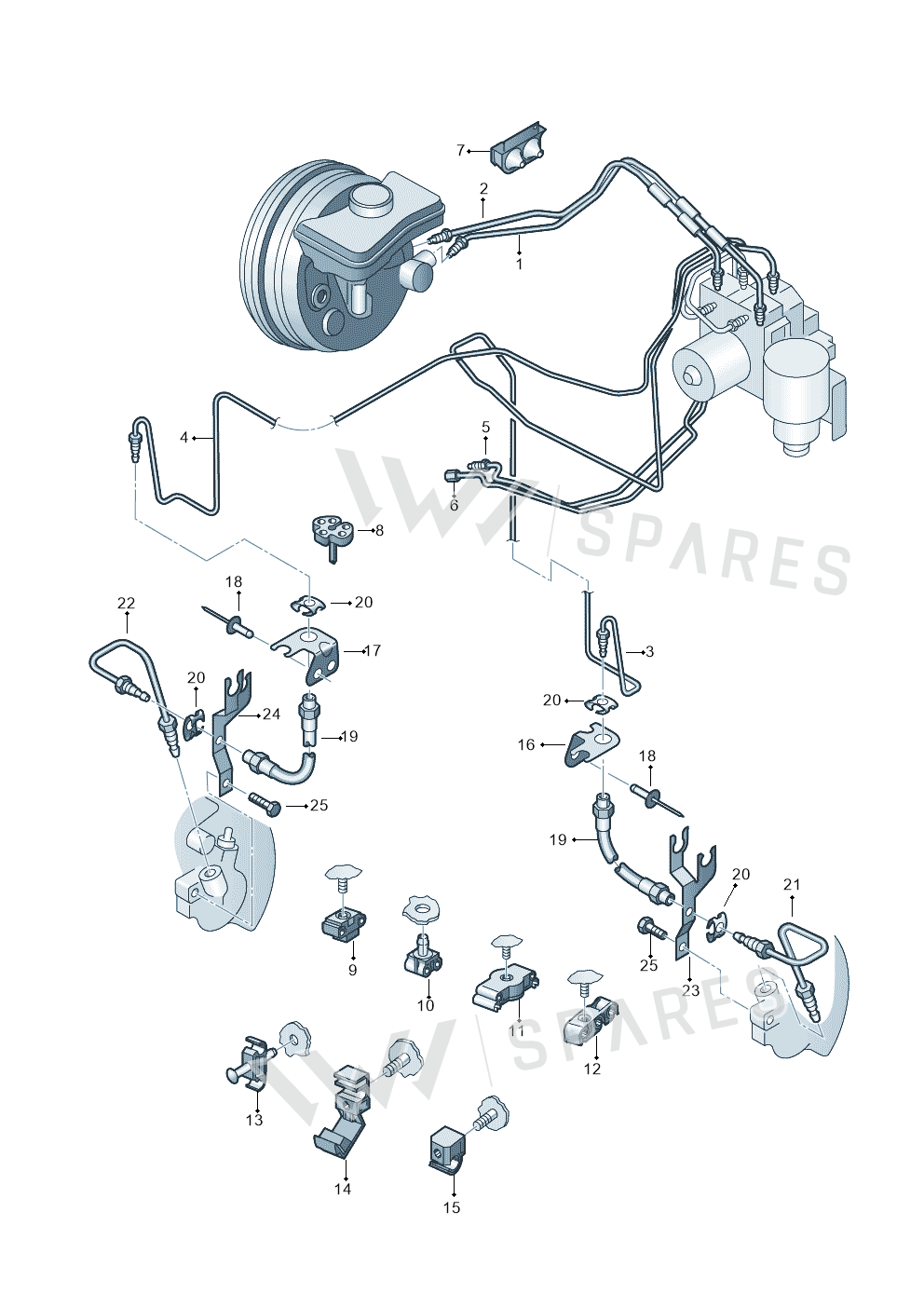

2 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate Brake Pipe From Hydraulics To Brake Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Brake Pipe 4E2614705R
- 1Brake Pipe 4E1614705AF
- 1Brake Pipe 4E2614705S
- 1Brake Pipe 4E1614705AG
- 2Brake Pipe 4E2614706R
- 2Brake Pipe 4E1614706AG
- 2Brake Pipe 4E2614706S
- 2Brake Pipe 4E1614706AH
- 3Brake PipeLeft4E0614723AJ
- 3Brake PipeLeft4E0614723AP
- 3Brake PipeLeft4E0614723AQ
- 4Brake PipeRight4E0614724AS
- 4Brake PipeRight4E0614724AT
- 4Brake PipeRight4E0614724BA
- 5Brake PipeLeft4E0614725AB
- 5Brake PipeLeft4E0614725AA
- 6Brake PipeRight4E0614726AE
- 6Brake PipeRight4E0614726AD
- 7Grommet 4E2611743B
- 7Grommet 4E1611743C
- 8Sleeve 1J0611853
- 9Bracket 1J0611797
- 9Clip 8K0611797D
- 11Bracket 4E0611797
- 12Bracket 8Z0611797E
- 13Bracket 8Z0611797G
- 14Bracket 8A0614853
- 16RetainerLeft4E4611845
- 16RetainerLeft4E0611845K
- 17RetainerRight4E4611846
- 17RetainerRight4E0611846K
- 18Bolt N10005207
- 19Brake Hose 3D0611701E
- 19Brake Hose 4E0611701
- 19Brake Hose 4E0611707C
- 20Spring 4D0611715B
- 21Brake LineLeft3D0611721J
- 21Brake LineLeft3D0611721H
- 21Brake LineLeft4E0611721H
- 21Brake LineLeft4E0611721J
- 21Brake LineLeft4E0611721K
- 22Brake LineRight3D0611722J
- 22Brake LineRight3D0611722H
- 22Brake LineRight4E0611722H
- 22Brake LineRight4E0611722J
- 22Brake LineRight4E0611722K
- 23BracketLeft3D0611793F
- 23BracketLeft4E0615133
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8/S8/qu. lang 08> | 2007- | 4 | 1 | F4S |
| Audi A8/S8/qu. lang | 2003-2007 | 4 | 1 | F4S |
Diagrams & fitment data powered by oemdiagrams.com
Brake Pipe From Hydraulics To Brake Hose is fitted on: Audi A8/S8/qu. lang 08> 2007-; Audi A8/S8/qu. lang 2003-2007.
