Product overview
Genuine OEM Audi Intercooler Pressure Pipe, part number 4G0145673AH. This pipe is a vital component of the turbocharged engine's intake system, responsible for transporting cooled, pressurized air from the intercooler to the engine. It ensures efficient air delivery, which is critical for optimal engine performance and fuel economy. The pipe weighs 0.438 kg and measures 0.213 meters in length. Using a genuine OEM pressure pipe guarantees precise fitment, robust construction to withstand high boost pressures, and resistance to temperature extremes, ensuring reliable operation of the turbocharger system.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 40094200
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 21.3 × 20.7 × 9.5 cm
- Shipping weight
- 0.44 kg

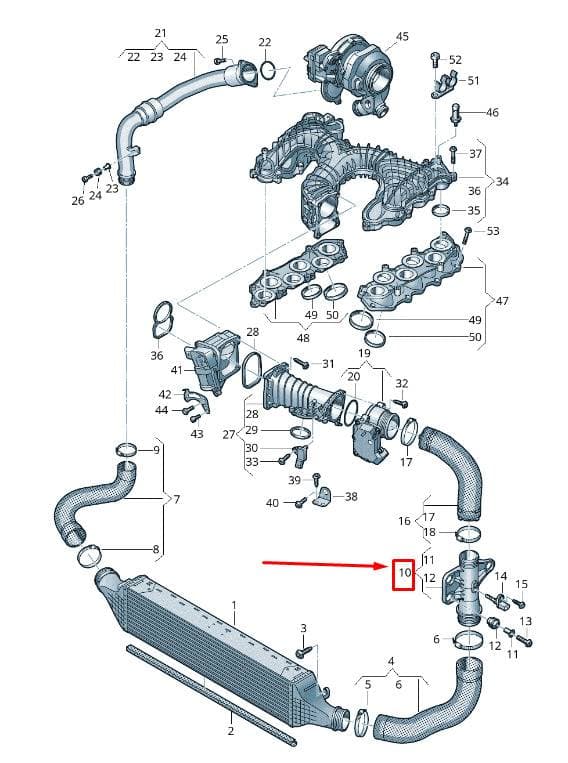

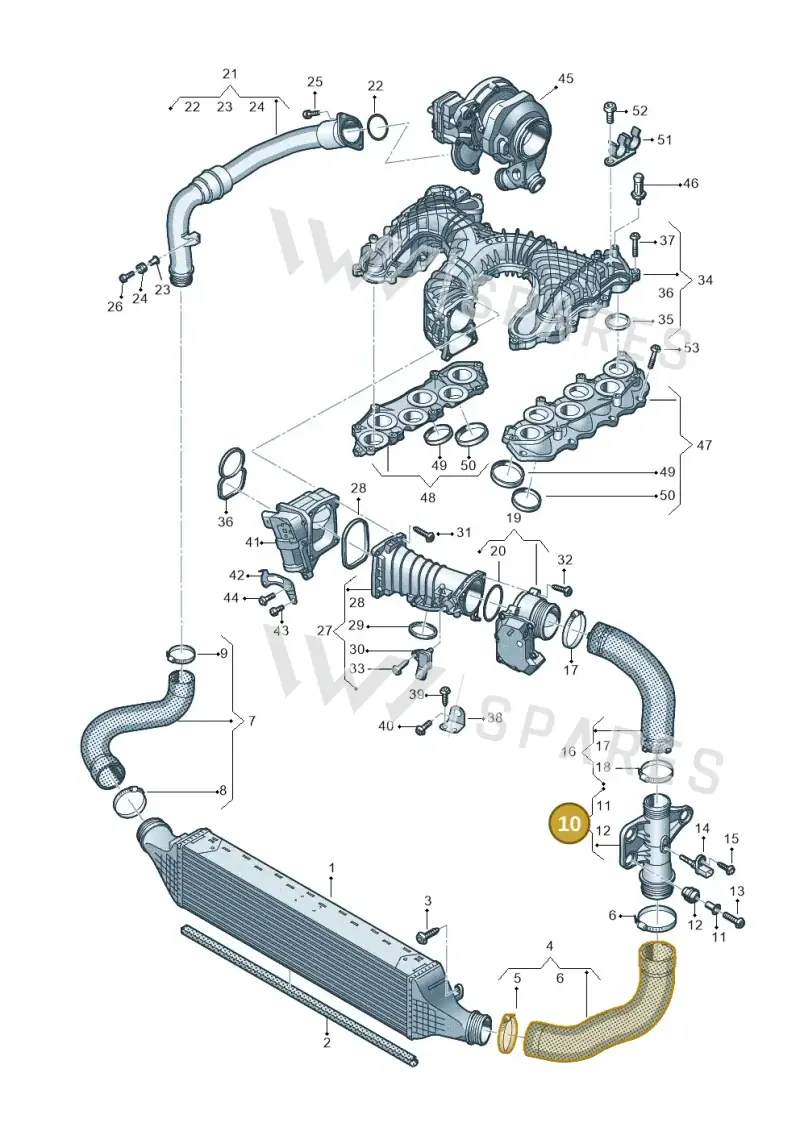

Parts diagram & fitment
3 vehiclesPressure Pipe — locate 4G0145673AH Audi Intercooler Pressure Pipe | Intake System in the official exploded view and explore the surrounding assembly.
Superseded by 4G0805594 — the later replacement part.
Parts in this assembly(48)
- 1Cooler 4G0145805L
- 1Cooler 4G0145805N
- 1Cooler 8K0145805R
- 2Seal 4G0145563E
- 3Bolt N90731503
- 4Hose 4G0145709AE
- 4Hose 4G0145709AF
- 5Clamp N10544401
- 6Clamp N91175901
- 7Hose 4G0145738AL
- 7Hose 4G0145738AP
- 9Clamp N10518901
- 11Bush 4G0129734
- 12Grommet 4G0129669C
- 13Bolt N90989702
- 14Temperature Sensor 06B905379D
- 14Temperature Sensor 06B905379G
- 15Screw N90739704
- 16Hose 4G0145737AJ
- 16Hose 4G0145737AK
- 18Clamp N10619901
- 19Thr Flap 059145950AL
- 19Thr Flap 059145950AS
- 19Thr Flap 059145950BH
- 19Thr Flap 059145950AH
- 20Seal Ring 059145865C
- 21Pipe 059145673AT
- 22Seal Ring 059145865M
- 22Seal Ring WHT007085
- 23Bush 059129734C
- 24Grommet 059131887B
- 25Screw N10653601
- 26Bolt N10156206
- 27Air Pipe 059145762BJ
- 27Air Pipe 059145762DH
- 27Air Pipe 059145762AR
- 28Seal 059145215G
- 29Seal Ring 059129796C
- 30Sensor 06E906051AD
- 30Sensor 06E906051AF
- 30Sensor 06E906051T
- 31Bolt N10668001
- 32Bolt N10626102
- 33Screw N10473402
- 34Intake Man 059129711CS
- 35Seal 059129717S
- 36Seal 059129069E
- 37Bolt WHT006896
Compatible / alternative parts(5)
Diagrams & fitment data powered by oemdiagrams.com
4G0145673AH Audi Intercooler Pressure Pipe | Intake System is fitted on: Audi A6 Av. qu. 3.0 2012-2018; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018.
