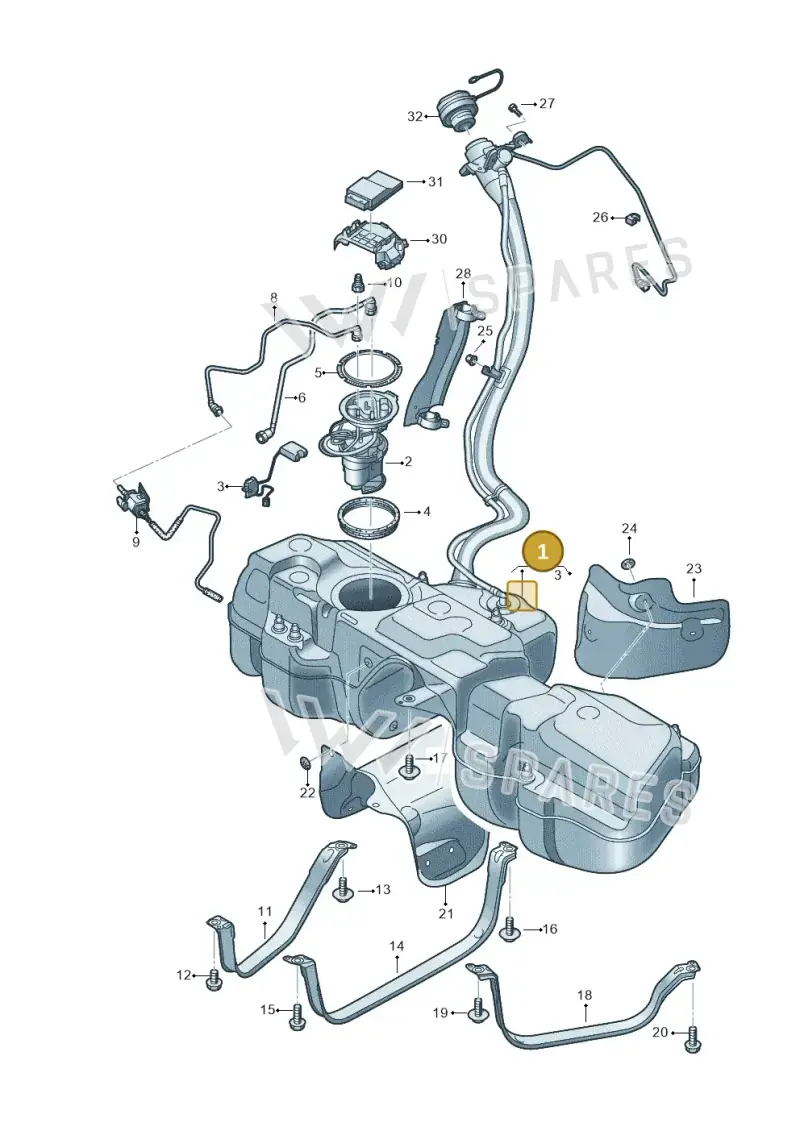

Number 1 marks the part’s position in the exploded view (Audi Q8 (2018-2025)).
Product overview
Genuine OEM Audi Fuel Tank, part number 4M0201060DB. Fits Audi Q8 (2018-2025). Shown as position 1 in the fuel, exhaust and cooling diagram 429201000.
Catalogue entry: CONTAINER.
Fitted with: 1J0919133B seal ring, 1K0201375 Union nut, N91237201 BOLT, N90335006 WASHER, N90757901 COLLAR NUT, N91042301 BOLT.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 429201000, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank — locate 4M0201060DB Audi Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 2Module 4M0919087F
- 3Sender 4M0919671C
- 4Seal Ring 1J0919133B
- 5Part 1K0201375
- 6Fuel Line 4M0201220E
- 11Strap 4M0201392C
- 12Bolt N91237201
- 13Screw N91247301
- 13Screw N91301301
- 14Strap 4M0201392F
- 18Strap 4M0201391C
- 21Heat ShLeft4M0201307A
- 21Heat ShRight4M0201308H
- 22Washer N90335006
- 23Heat ShLeft4M0201307
- 23Heat ShRight4M0201308G
- 25Collar Nut N90757901
- 26Clip 443809948
- 27Bolt N91042301
- 28Shield Plt 4M0201974A
- 30Retainer 4M0907731
- 31Control Unit 4K0906121D
- 31Control Unit 4K0906121A
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550N
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550BA
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550L
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
4M0201060DB Audi Fuel Tank is fitted on: Audi Q8 Quattro 3,0 2018-.
