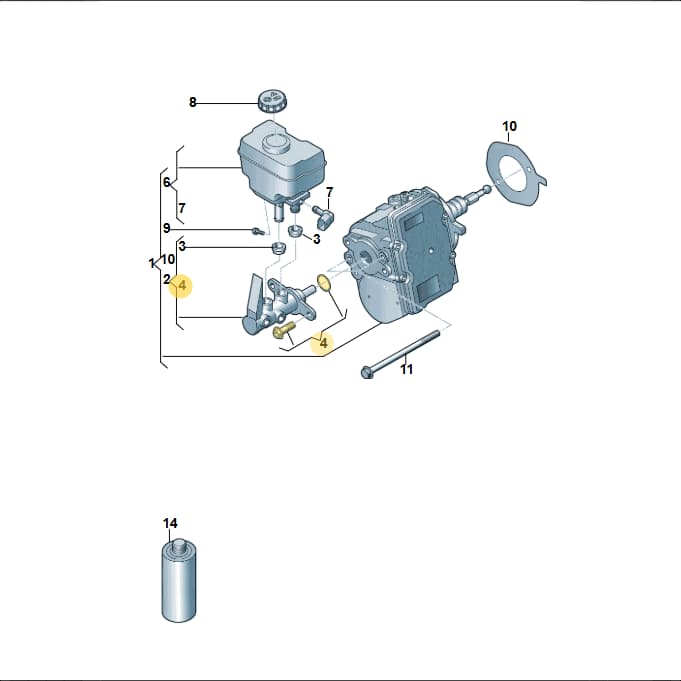

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Cylinder Gasket Set, part number 4M0698181A. This gasket set provides critical seals for the brake master cylinder, preventing hydraulic fluid leaks and maintaining proper brake system pressure. It is used to seal connections and components within the brake master cylinder assembly. Weighing 0.038 kg, the set's components are compact, with dimensions of 60mm in length, 60mm in width, and 10mm in height. Choosing a genuine OEM gasket set ensures the correct material compounds and precise dimensions for a leak-free seal, critical for brake system safety and performance.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6 × 6 × 1 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
11 vehicles1 Set Attachment Parts — locate 4M0698181A Volkswagen Brake Cylinder Gasket Set | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 1Brake Serv 4M0614105AA
- 1Brake Serv 4M0614105T
- 2Brake Cylinder 4M0614019A
- 3Bungs 12E611817
- 6Tank 4M0614301
- 7Sender 4M0611377
- 8Part 5Q0611349A
- 8Part 5Q0611349E
- 8Part 5Q0611349B
- 9Bolt 12E614159
- 10Seal 4M0612161
- 11Fixing Set 4M0698181
- 14Brakefluid B000750M3
- 14Brakefluid B000750M6
- 14Brakefluid B000750M7
- 14Brakefluid B000750M9
- 14Brakefluid B000750M1
Diagrams & fitment data powered by oemdiagrams.com
4M0698181A Volkswagen Brake Cylinder Gasket Set | OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A6 L 2.0 2018-; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A3 Sportback 2016-2020; Audi Q5 2016-2020; touareg 2017-2023; e-Golf 2014-2021; golf 2.0 2016-2020.
