4M0816885F Refrigerant Line
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

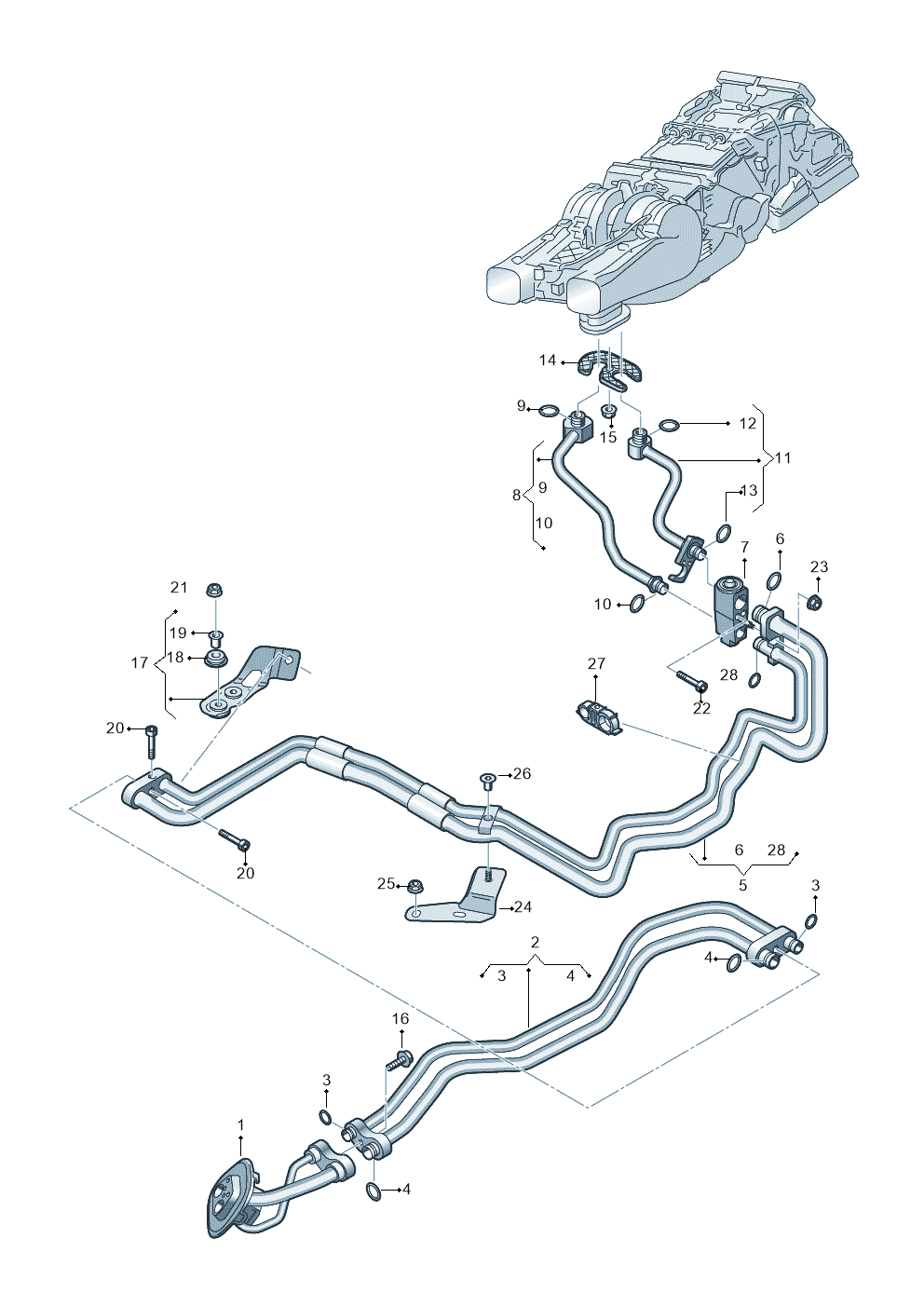

3 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Basicplate 4M0820339G
- 2Line 4M8816886
- 3Seal Ring 3D0260749C
- 4Seal Ring 4E0260749B
- 7Expans Val 4M0816181A
- 7Expans Val 4M0820181B
- 8Line 4M0816725D
- 9Seal Ring 4E0260749A
- 10Seal Ring 4D0260749B
- 11Line 4M0816727D
- 12Seal Ring 4E0260749C
- 14Plate 4M0820251B
- 15Collar Nut N10609201
- 16Bolt N10632102
- 17Bracket 4M0820769H
- 18Mounting 4F0129669
- 19Bush 1K0129734B
- 20Screw N10582103
- 21Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 22Screw N10723801
- 23Collar Nut N01508210
- 24Bracket 4M0820769E
- 25Collar Nut 171201969
- 26Part 8D0201441C
- 27Bracket 4H0260759E
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS Q8 Quattro | 2019- | 5 | 1 | ||
| Audi Q8 Quattro 3,0 | 2018- | 5 | 1 | ||
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 5 | 1 | PR:9AH,9AQ | 9AH |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Audi RS Q8 Quattro 2019-; Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
