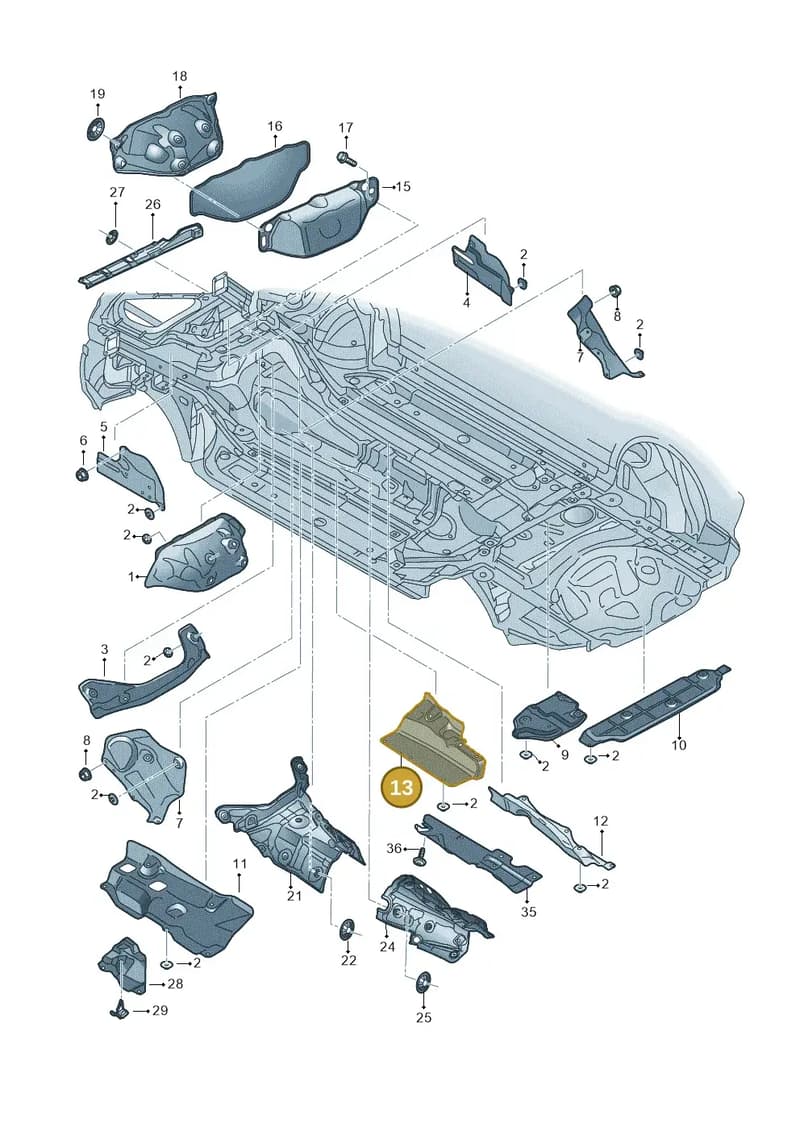

Number 13 marks the part’s position in this exploded view (Audi RS Q8 (2019-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

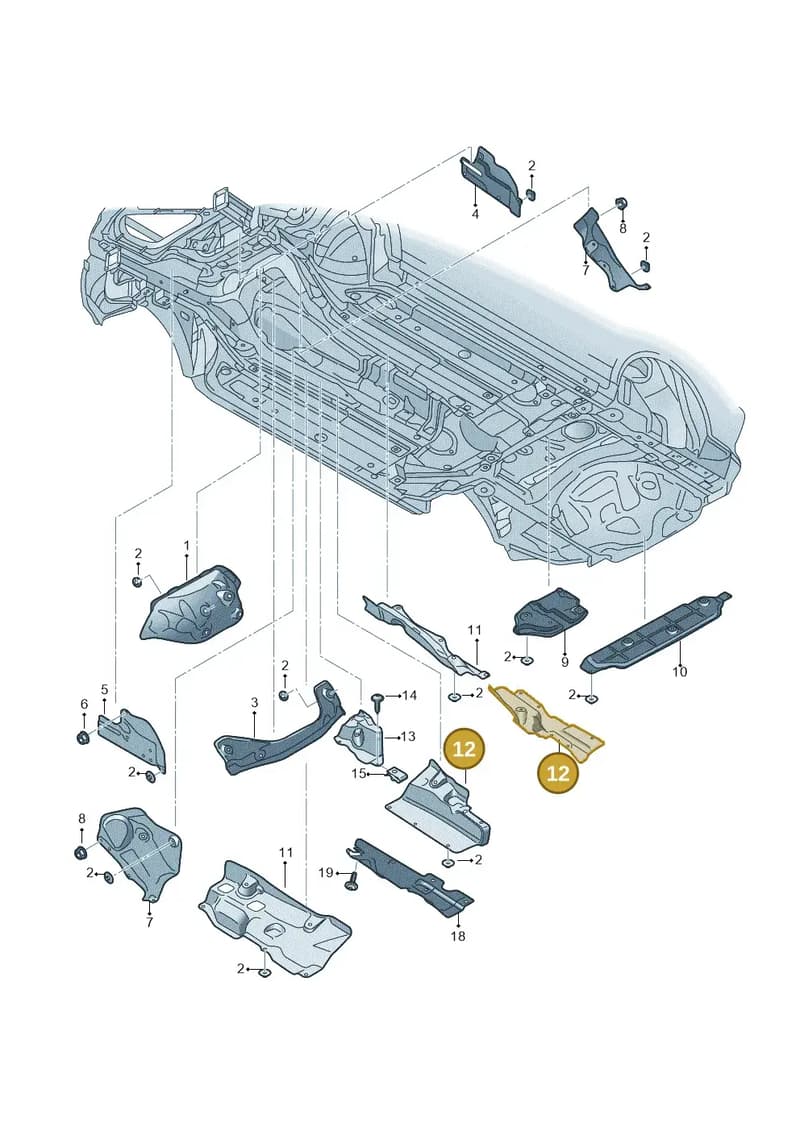

Genuine OEM Audi Heat Shield for Tunnel, part number 4M0825691F. Fits Audi RS Q8 (2019-2025), Audi Q8 (2018-2025), Volkswagen Touareg (2017-2025), Audi Q7 (2015-2025). Shown as position 12 in the body diagram 859825100.
Catalogue entry: HEAT SH. left rear.
Technical details
- Category
- Underbody & Splash Shields
- Diagram sheet
- Audi 595825100, position 13
- ETKA group
- 8 / 25 (825)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesHeat Shield For Tunnel — locate 4M0825691F Audi Heat Shield for Tunnel in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Heat Sh 4M0825621K
- 1Heat Sh 4M0825621H
- 2Clip 8K0863203
- 2Part N90708803
- 2Washer N90335004
- 3Heat Sh 4M0825623E
- 7Heat ShLeft4M1825643K
- 7Heat ShLeft4M1825644E
- 7Heat ShLeft4M1825644F
- 7Heat ShRight4M2825643D
- 7Heat ShRight4M2825643H
- 7Heat ShRight4M2825644C
- 7Heat ShRight4M2825644D
- 7Heat ShLeft4M1825643F
- 8Ut"hex Nut Self-locking With Washer Hex Nut N90570803
- 10Heat Sh 4M0825711F
- 11Heat ShLeft4M0825661AK
- 11Heat ShLeft4M0825661AP
- 11Heat ShLeft4M0825661Q
- 11Heat ShLeft4M0825661S
- 11Heat ShLeft4M0825661N
- 12Heat ShRight4M0825662H
- 12Heat ShRight4M0825662M
- 12Heat ShRight4M0825662N
- 12Heat ShRight4M0825662R
- 12Heat ShRight4M0825662S
- 12Heat ShRight4M0825662J
- 13Heat ShLeft4M0825691H
- 13Heat ShLeft4M0825691K
- 13Heat ShRight4M0825692D
- 13Heat ShRight4M0825692F
- 13Heat ShRight4M0825692H
- 15Water Box 4M0819523A
- 16Seal 4M0819532A
- 17Bolt N10653201
- 18Sound Abs 4M0864831AD
- 18Sound Abs 4M0864831S
- 18Sound Abs 4M0864831P
- 21Damping 4M0863983AA
- 21Damping 4M0863983Q
- 21Damping 4M0863983N
- 24Insulation 4M0864843K
- 24Insulation 4M0864843L
- 24Insulation 4M0864843N
- 24Insulation 4M0864843P
- 24Insulation 4M0864843J
- 26Sound Abs 4M0863993F
- 28Plate 4M0825729B
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS Q8 Quattro | 2019- | 13 | 1 |
| Audi Q8 Quattro 3,0 | 2018- | 13 | 1 |
| touareg | 2017-2023 | 18 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 12 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 23 August 2021; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
4M0825691F Audi Heat Shield for Tunnel is fitted on: Audi RS Q8 Quattro 2019-; Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi Q7 qu. 3.0 TDI 2015-2019.
