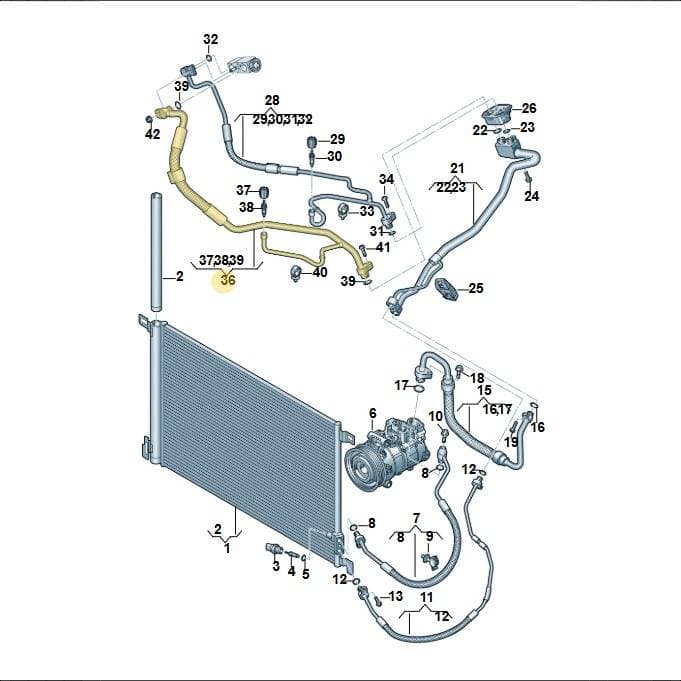

Number 36 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 4M2816740. This line carries refrigerant between the components of the air conditioning system. It is located at position 36 in the diagram. The line has a length of 0.9 meters. Genuine OEM parts ensure precise fitment and reliable operation of your vehicle's air conditioning system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 90 × 32 × 8 cm
- Shipping weight
- 0.53 kg
Parts diagram & fitment
4 vehiclesRefrigerant Line — locate 4M2816740 Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(22)
- 1Pipe 4M0816738N
- 1Pipe 4M0816738M
- 2Seal Ring WHT004858
- 3Seal Ring 3D0260749C
- 4Basicplate 4M0820339H
- 5LineLeft4M1816720R
- 5LineRight4M2816720M
- 5LineRight4M2820720K
- 5LineLeft4M1820720K
- 6Part 3C0820581
- 7Valve 8E0820855
- 9Seal Ring 4D0260749B
- 10LineLeft4M1816740N
- 10LineRight4M2820740K
- 10LineLeft4M1820740K
- 15Part 5Q0816231
- 15Part 3C0820231
- 17Seal Ring 4E0260749B
- 18Bolt N10632102
- 19Collar Nut N01508210
- 20Bracket 4M0820769G
- 21Bracket 8K0260759H
Diagrams & fitment data powered by oemdiagrams.com
4M2816740 Volkswagen Refrigerant Line | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; Audi RS Q8 Quattro 2019-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
