517823633A Bracket
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

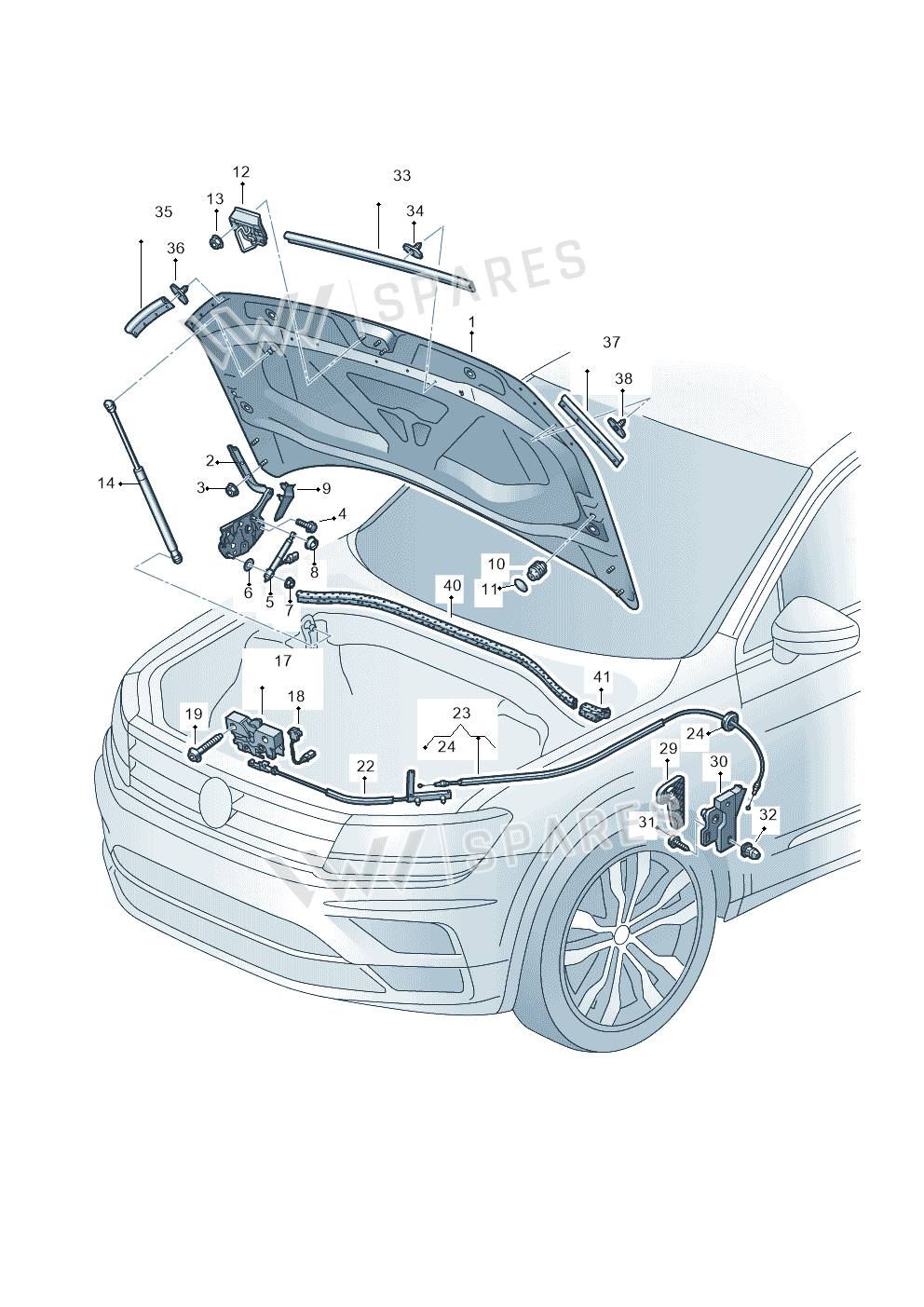

6 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Bonnet 5NA823031H
- 2HingeLeft5NA823301G
- 2HingeRight5NA823302G
- 3Collar Nut N90798805
- 4Bolt N90798702
- 5Part 5NA823823E
- 6Seal 8V0823739
- 7Collar Nut N01508210
- 8Clip 8V0823397
- 10Buffer 357823500
- 11Prot Film AKL44830004
- 12Striker 5NA823186C
- 13Ut Hexagon Nut Self-locking Hexagon Nut N10737001
- 14G Fill Str 5NA823359A
- 14G Fill Str 5NA823359B
- 17Lock 5G1823509C
- 18Switch 5G0953236
- 19Bolt WHT000425
- 22Lid Cable 5TB823531
- 23Lid Cable 5NA823535A
- 29Handle 6R1823533
- 31Bolt N90974701
- 32Part 6N0809966A
- 33Gasket 5NA823707
- 34Clip 3D0823717
- 35GasketRight5NA823709
- 36Clip 1H0823717
- 40Seal 5NA823723
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2024 | 30 | 1 | L0L | |
| Touran 2,0 BlueMotion | 2015-2024 | 30 | 1 | L0L | |
| Sharan BlueMotion | 2015-2022 | 30 | 1 | L0L | |
| golf 1.6 | 2015-2019 | 30 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 30 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 30 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: Tiguan 2.0 4Motion 2016-2024; Touran 2,0 BlueMotion 2015-2024; Sharan BlueMotion 2015-2022; golf 1.6 2015-2019; Golf Estate 1.4 2014-2017; Tiguan 2.0 4Motion 2016-2022.
