Product overview

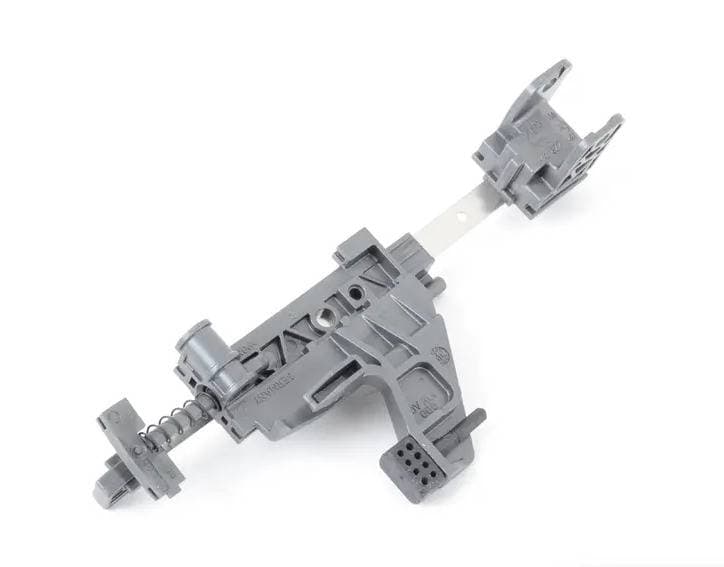

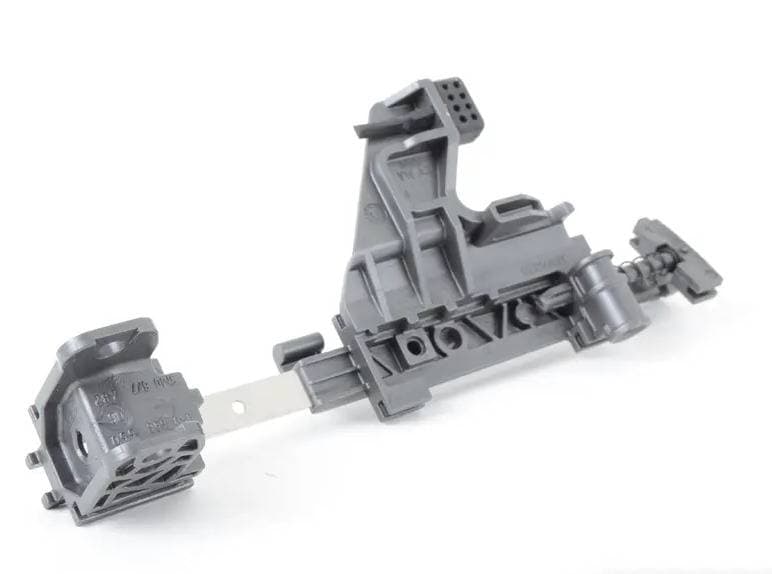

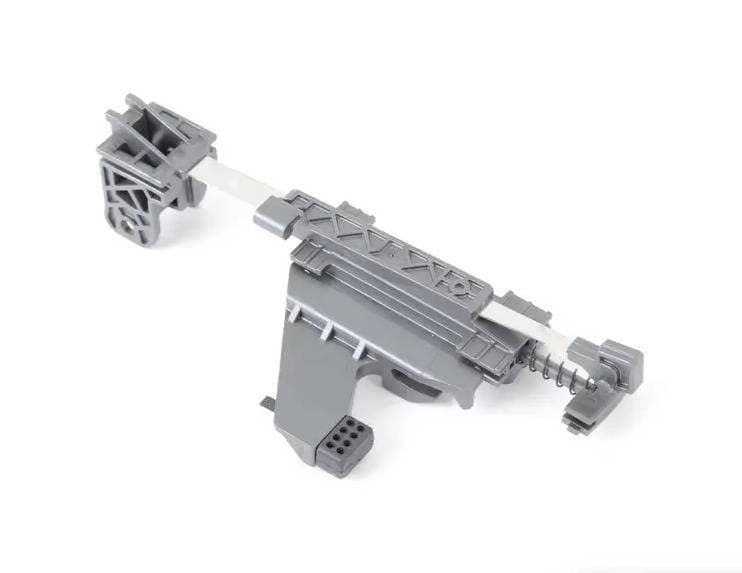

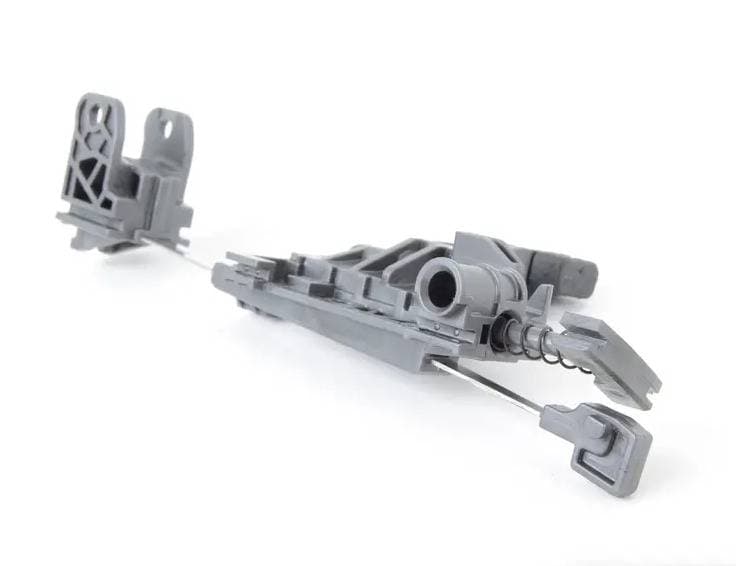

Genuine OEM Volkswagen Sunroof Guide Jaw, part number 5M0877482A. This component guides the smooth and precise movement of the sunroof panel. It is designed for the rear right side of the sunroof assembly. Weighing 0.036 kg, it measures 0.164m x 0.065m x 0.033m. Choosing genuine OEM ensures the correct dimensions, material strength, and operational reliability for the sunroof mechanism, preventing binding or misalignment.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16.4 × 6.5 × 3.3 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
27 vehiclesGuide — locate 5M0877482A Volkswagen Sunroof Guide Jaw | Rear Right in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Superseded by 5M0877481A — the later replacement part.
Parts in this assembly(39)
- 1Glasspanel 1K5877071A
- 2Seal 8D0877297
- 3Bolt WHT001273
- 4Frame 1K0877255A
- 5Glidepiece 4B0877165
- 9BellowsRight8D0877782B
- 9BellowsLeft8D0877781B
- 10Channel 8D0877633C
- 11Grease G00045002
- 13Butyl Strp AKL45000505
- 14Part 1K0898200A
- 14End Piece 1K0898200
- 16Frame 1K5877049A
- 16Frame 1K5877049
- 18Deflector 1K6877655A
- 19Bearing 8D5898671A
- 20Buffer 8D5898652
- 21Spring 8D5877975A
- 22Bolt N90749802
- 24Washer N90590803
- 24Washer N90590801
- 25Engine 1K0959591
- 26Crank 1K0875699
- 29Bolt N90884801
- 30Hose 1K5877233
- 30Hose 1K0877231
- 31Bracket 1K6877244
- 31Bracket 1K0877244
- 32Valve 1K0877236
- 32Valve 1K6877236
- 32Drain Tube 1T0877242A
- 34GuideLeft5M0877481A
- 37Spacer 8D5877421
- 38GuideRight8D5877152A
- 38GuideLeft8D5877151A
- 39Screw N90515401
- 40GuideRight8D5877484
- 40GuideLeft8D5877483
- 41Guide 8D5898015
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
5M0877482A Volkswagen Sunroof Guide Jaw | Rear Right is fitted on: Jetta "USA"05> 2005-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; JETTA 06> 2005-; BORA-FAW "CN" 06> 2005-; JETTA 06> 2006-; MAGOTAN (PASSAT) 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Golf Plus 1.6 2009-2011; passat estate 2008-2011; jetta 2008-2011; New Passat 2011-2015; jetta 2010-2014; Passat saloon 2010-2015; New Passat 2011-2019; Golf Plus 2011-2014; jetta 2014-2017; New Passat 2015-2022; jetta 2.0 2015-2015; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013.
