5N0971349E Wiring Set For Three-Phase Alternator
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 1–6 business days before dispatch.
Handling time for Skoda: 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

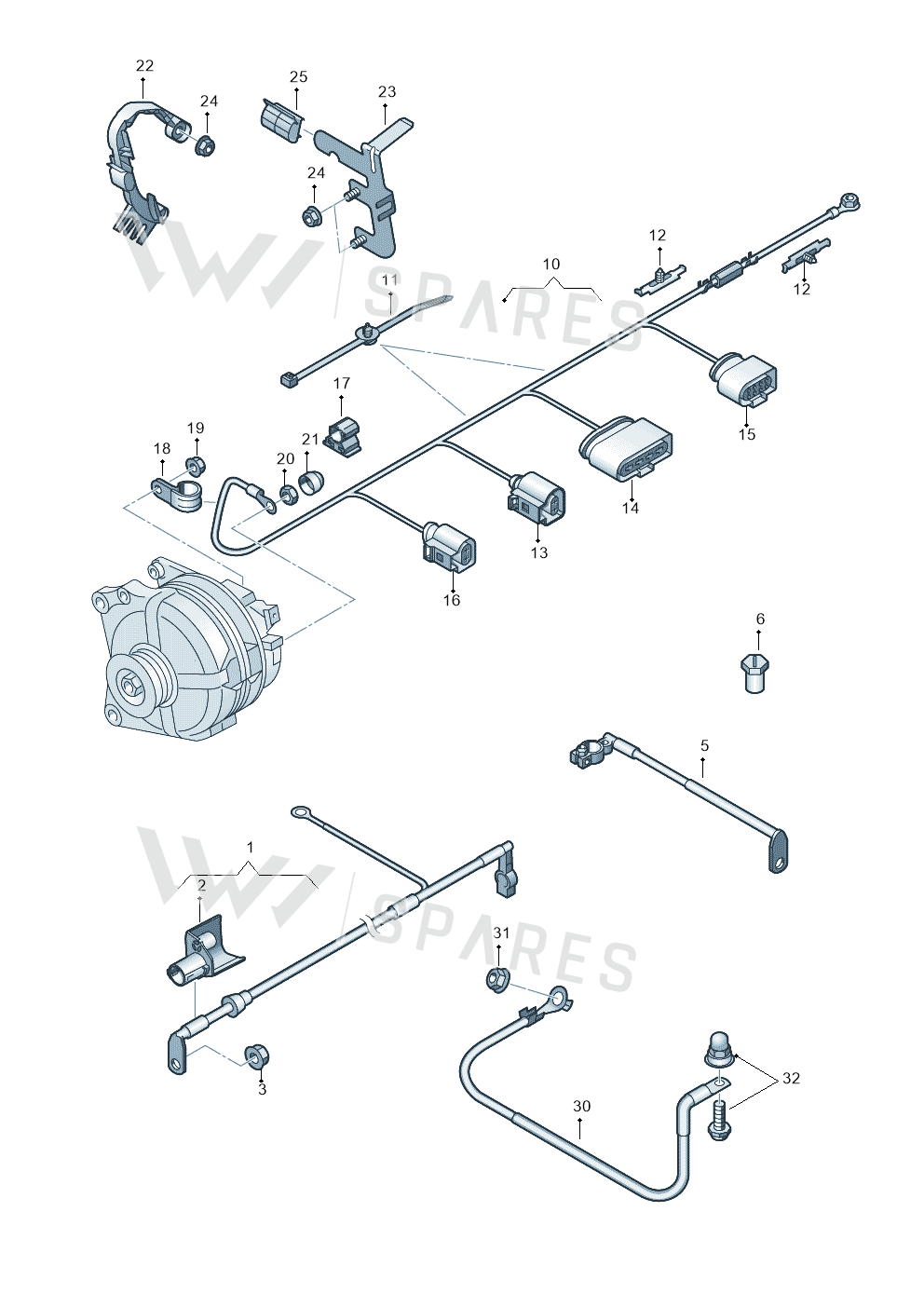

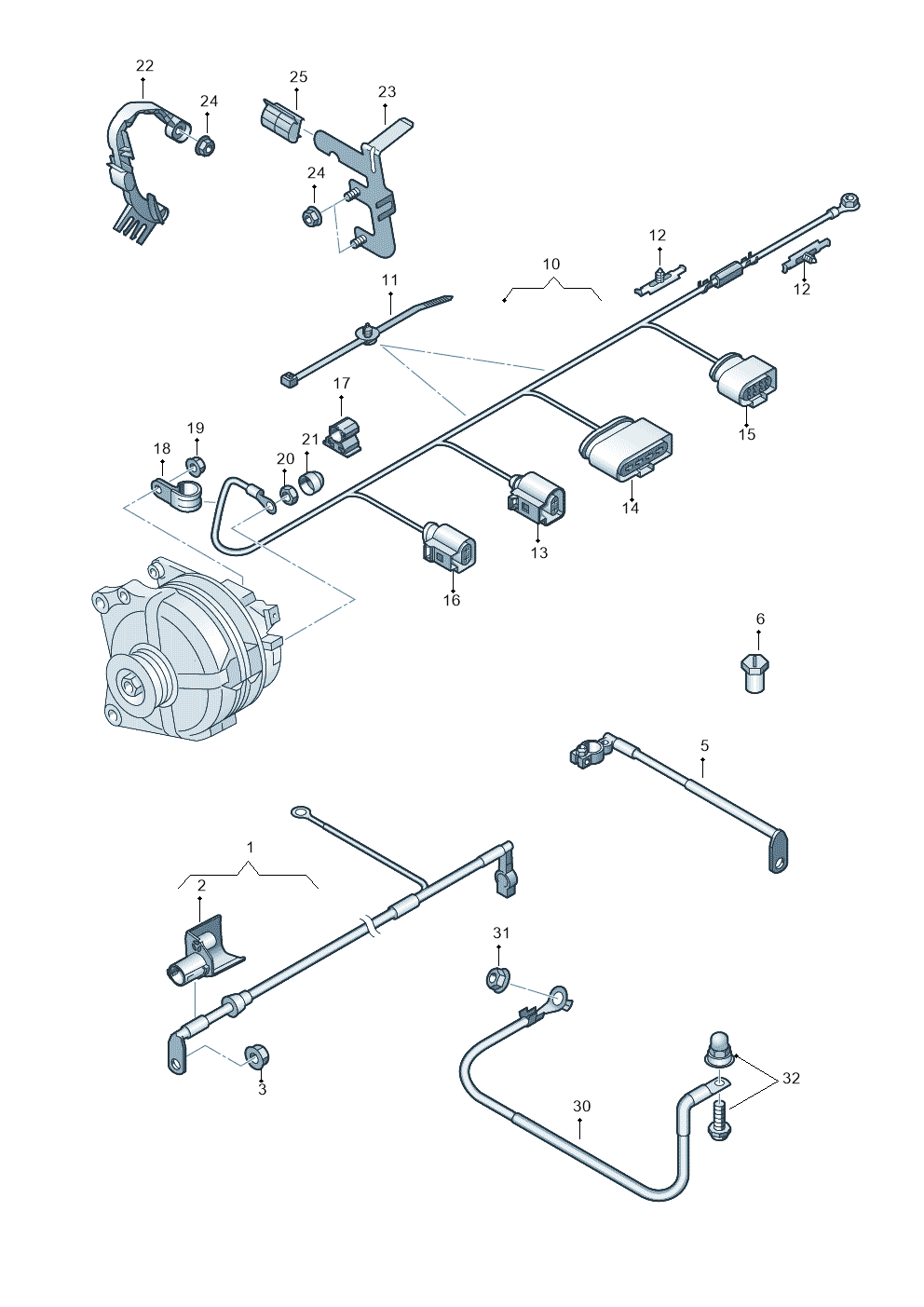

6 vehiclesWiring Set For Three-phase Alternator — locate Wiring Set For Three-Phase Alternator in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Wiring Set 5N0971228D
- 1Wiring Set 5N0971228F
- 1Wiring Set 5N0971228G
- 2Grommet 1K0971920
- 3Collar Nut N10744601
- 6Startsock 8X0972501
- 10Wiring Set 5N0971349BK
- 10Wiring Set 5N0971349BM
- 10Wiring Set 5N0971349BN
- 11Part 3D0971838N
- 12Clip 4B0971848
- 13Housing 1J0973702
- 15Part 1J0973714
- 16Housing 1J0973772
- 17Bracket N90697901
- 19Collar Nut N10017304
- 21Cover Cap N90403002
- 22R Bracket 1K0971858AS
- 23Retaining 5N0971858C
- 23Bracket 5Q0971858A
- 24Collar Nut N01508210
- 25Bracket 1H0971615AB
- 30Line 5N0971250P
- 30Line 1K0971250AL
- 31Uthexagon Nut Self-lockinghexagon Nut N90074404
- 32Screw WHT000869
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q3 1.4 | 2012-2016 | 10 | 1 | PR:TN6+0EN | 0EN,TN6 |
| Tiguan 4Motion | 2011-2018 | 10 | 1 | D | |
| Sharan Blue Motion | 2010-2015 | 10 | 1 | CCZA | |
| Alhambra Stylance | 2010-2013 | 10 | 1 | CCZA | |
| TIGUAN 08> | 2007- | 10 | 1 | PR:D2L,D6G | D2L |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan | 2009-2019 | 10 | 1 | D |
Diagrams & fitment data powered by oemdiagrams.com
Wiring Set For Three-Phase Alternator is fitted on: Audi Q3 1.4 2012-2016; Tiguan 4Motion 2011-2018; Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013; TIGUAN 08> 2007-; Tiguan 2009-2019.
