5Q0122291BG Quick Acting Coupling
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

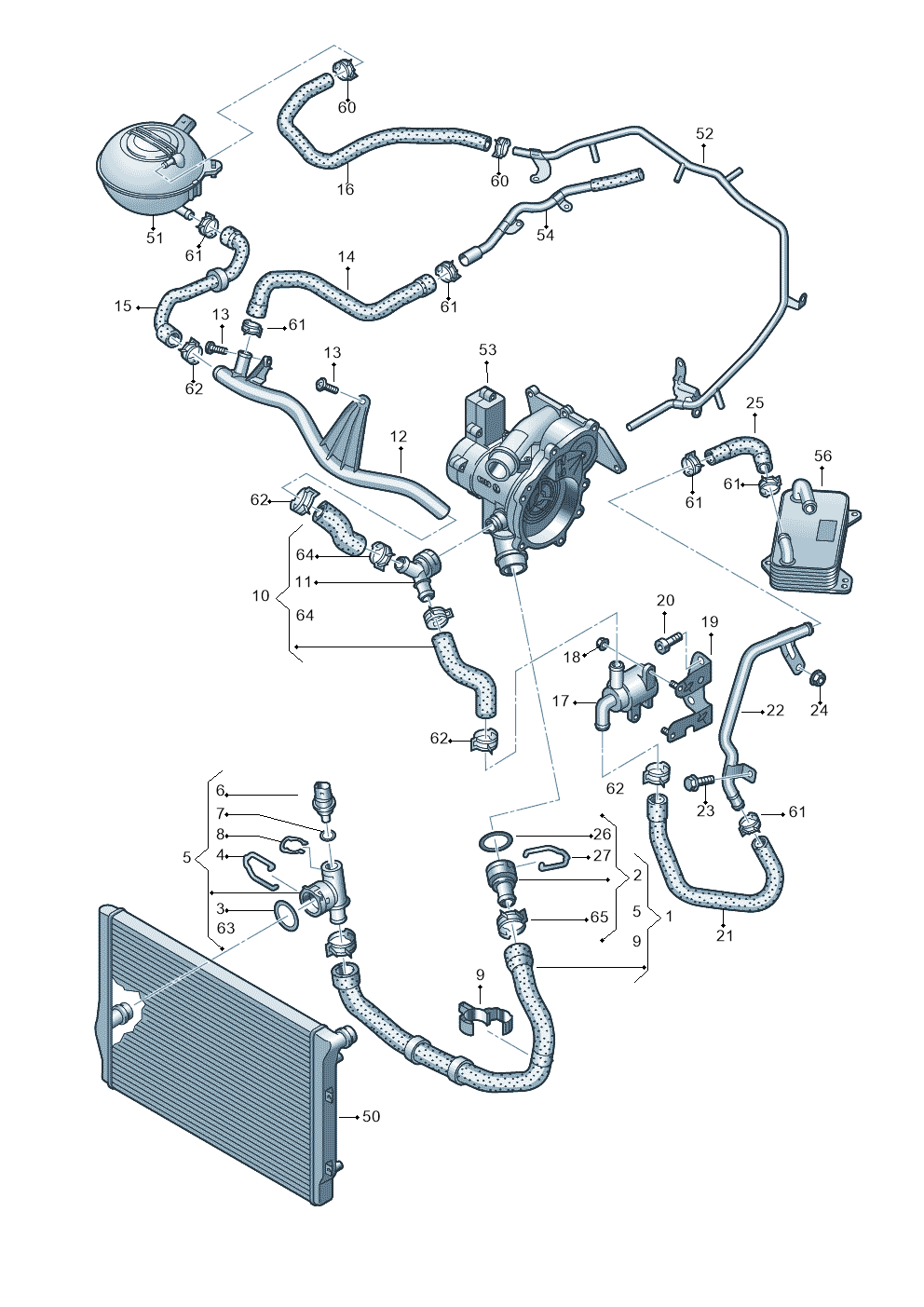

10 vehiclesQuick Acting Coupling — locate Quick Acting Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Hose 5Q0122051CT
- 1Hose 5Q0122051ED
- 2Coupl Piece 7M3122291
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Coupl Piece 5Q0122291T
- 6Sender 05C919501
- 6Sender 06A919501A
- 7Seal Ring N90316801
- 8Spring 032121142
- 9Bracket 5Q0121093T
- 10Hose 5Q0122058K
- 11Coupl Piece 5Q0122291AB
- 12Water Pipe 5Q0121070BR
- 13Screw N10473402
- 14Hose 5QF121058A
- 15Hose 5Q0122109J
- 16Hose 5Q0121447G
- 17Valve 5Q0906457K
- 17Valve 5Q0906457B
- 18Collar Nut N01508210
- 19Bracket 3Q0121093AJ
- 20Screw N10717701
- 21Hose 5Q0121058AC
- 22Water Pipe 5Q0121070BT
- 22Water Pipe 5Q0121070BQ
- 23Bolt N10737101
- 24Collar Nut N10609201
- 25Hose 5Q0121058AD
- 60Clamp N90686701
- 61Clamp N90686902
- 62Clamp N90687001
- 63Clamp N90687101
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2016-2020 | 5, 2 | 1 | PR:TD3+8Z6, | |
| Audi A3 Cabrio | 2016-2020 | 5, 2 | 1 | PR:TD3+8Z6 | 8Z6 |
| golf 2.0 | 2016-2020 | 5 | 1 | ||
| Superb Combi | 2015-2024 | 2 | 1 | ||
| Passat saloon | 2014-2024 | 5 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 5 | |||
| Audi A3 Cab. 1.4 | 2013-2016 | 5 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 5 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 5 | 1 | ||
| Leon ST Stylance | 2012-2016 | 5, 2 | 1 | 8Z6 |
Diagrams & fitment data powered by oemdiagrams.com
Quick Acting Coupling is fitted on: Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; golf 2.0 2016-2020; Superb Combi 2015-2024; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
