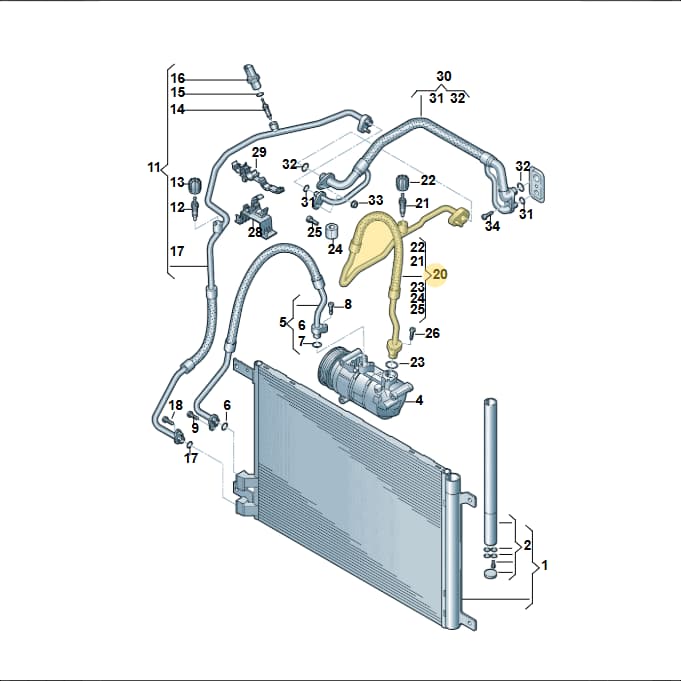

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen A/C Refrigerant Line, part number 5Q0816743G. This critical component is responsible for transporting refrigerant throughout the air conditioning system, enabling effective cooling. It connects various A/C components such as the compressor and condenser. With a length of 0.808m, it is designed for precise routing. Choosing genuine OEM ensures the correct material composition, pressure resistance, and routing geometry for leak-free operation and optimal A/C system performance.
Technical details
- Category
- Heating & A/C
- Country of origin
- Czech Republic
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 80.8 × 41 × 15 cm
- Shipping weight
- 0.44 kg
Parts diagram & fitment
14 vehiclesRefrigerant Line — locate 5Q0816743G Volkswagen A/C Refrigerant Line | HVAC in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 1Condenser 5Q0816411AR
- 1Condenser 5Q0816411BG
- 2Part 5Q0298403C
- 2Part 5Q0298403D
- 2Part 5Q0298403F
- 2Part 5Q0298403A
- 5Line 5Q0816721AD
- 5Line 5Q0816721AH
- 5Line 5Q0816721S
- 5Line 5WA816721A
- 5Line 5Q0816721AA
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 5Q0816741B
- 11Line 5Q0816741C
- 11Line 5Q0816741K
- 12Valve 8E0820855
- 13Part 5Q0816581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Sender 4H0959126B
- 16Sender 4H0959126C
- 17Seal Ring 4D0260749B
- 20Line 5Q0816743H
- 20Line 5WA816743A
- 22Part 5Q0816231
- 23Seal Ring 8E0260749C
- 28Bracket 5Q0820769
- 29Clip 5Q0820774
- 30PartRight5Q2816738D
- 30Part 5WC816738A
- 30Part 5WB816738C
- 32Seal Ring 4E0260749B
- 33Collar Nut N01508210
- 34Bolt N91096801
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
