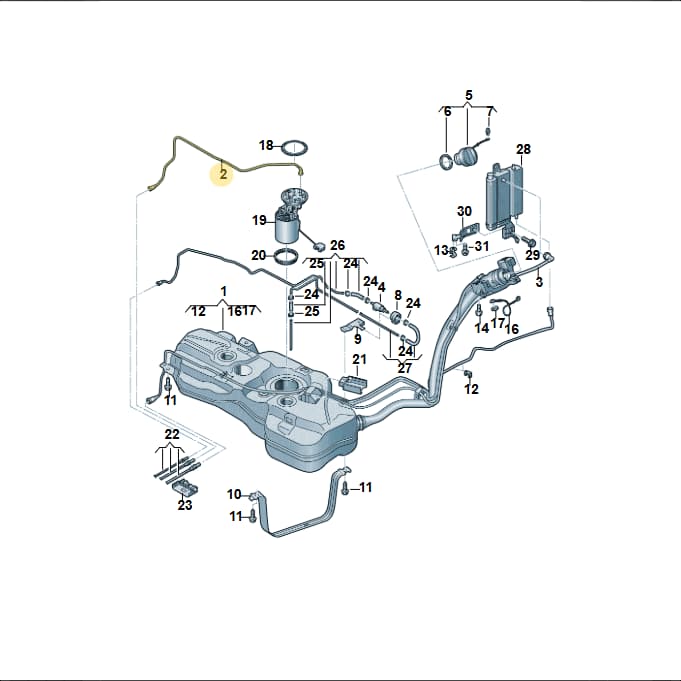

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line, part number 5R3201293D. This essential component is responsible for safely transporting fuel from the fuel tank to the engine, maintaining a consistent supply for combustion. It is routed from the fuel tank assembly towards the engine. Weighing 0.0454 kg, this line is constructed from materials resistant to fuel corrosion and pressure. Using a genuine OEM fuel line ensures precise fitment, leak-free operation, and long-term durability against fuel degradation and environmental factors, critical for fuel system integrity.
Catalogue entry: FUEL LINE.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 64 × 28 × 20.5 cm
- Shipping weight
- 0.05 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1A1
- 1A3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Line — locate 5R3201293D Volkswagen Fuel Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Container 5R3201060AB
- 1Container 5R3201060AD
- 1Container 5R3201060AA
- 1Container 5R3201060AC
- 1Container 5R3201060M
- 2Fuel Line 5R3201293G
- 3Line 5R3201931F
- 3Line 5R3201931H
- 3Line 5R3201931D
- 3Line 5R3201931E
- 3Line 5R3201931G
- 4Pump 7N0963303A
- 8Bracket 7E0813549
- 9Bracket 5R3201938
- 10Strap 5R3201656C
- 11Bolt N91229601
- 13Clip 4KE820055
- 14Bolt N10699802
- 18Part 1K0201375
- 24Clamp N10203501
- 25Clamp N10198301
- 26Fuel Line 5R3201361D
- 27Fuel Line 5R3201361E
- 28Container 5WA201801
- 29Bolt N10240003
- 30Bracket 5R3201809A
- 31Bolt N10668401
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 2 | 1 | 1A1 |
The manufacturer’s catalogue lists this part number as fitted until 18 September 2023; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5R3201293D Volkswagen Fuel Line | Genuine OEM is fitted on: Caddy Maxi Kombi 2020-2024.
