Product overview
Genuine OEM Volkswagen Heat Protection Sleeve, part number 5R3501101M. This sleeve is designed to protect surrounding components from the high temperatures generated by the exhaust system. It is located in the rear axle assembly. Genuine OEM parts ensure exact fit and material integrity, crucial for heat shielding applications where failure can lead to damage of adjacent components.
Catalogue entry: REAR AXLE.
Fitted with: 5R3501101J REAR AXLE, 5R3501101L REAR AXLE, 5R3501101N REAR AXLE, 5R3501101K REAR AXLE, 5R3501101P REAR AXLE, N10770801 BOLT, N10500802 BOLT, N10335304 Hexagon nut, 1K0505193 WASHER, N10831701 SCREW, 8E0407643A SCREW, WHT004835 Ball screw.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 167 × 36 × 33 cm
- Shipping weight
- 29.19 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0K0
- 1JA
- 1X0
- 3NM
- II9
- 3NR
- 3NX
- UC7
- UC5
- UC8
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

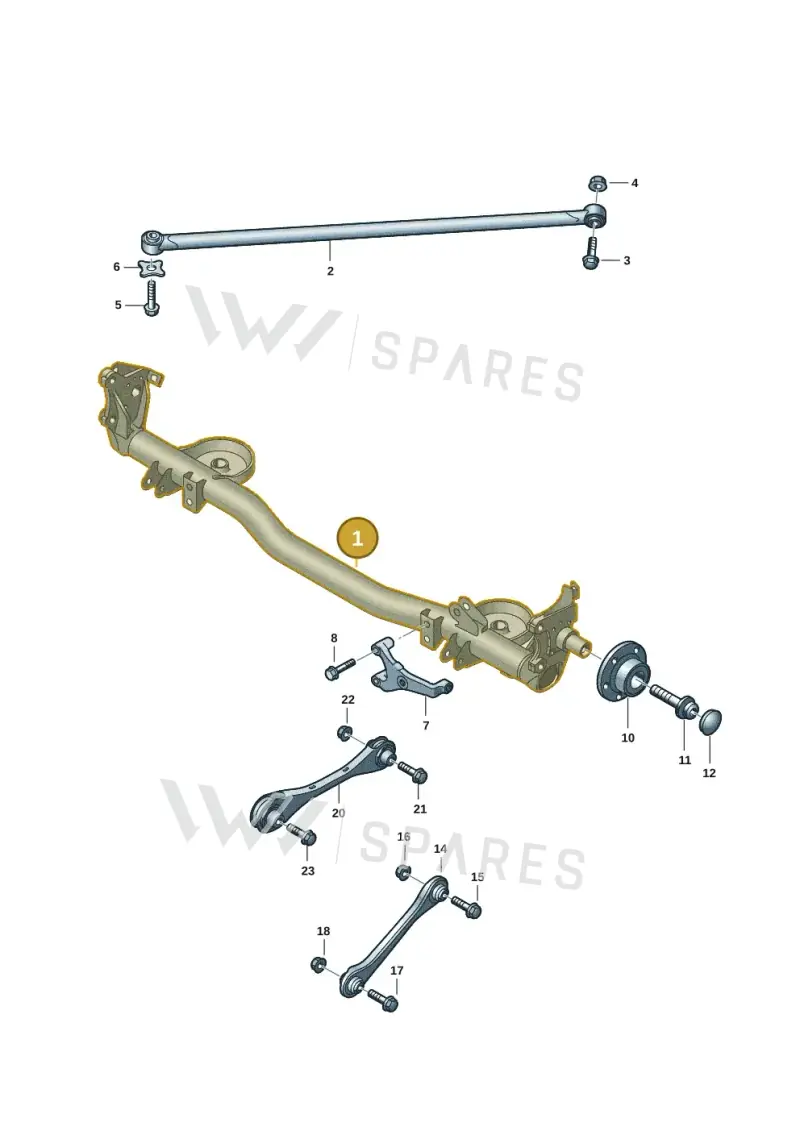

1 vehicleRear Axle Beam — locate 5R3501101M Volkswagen Heat Protection Sleeve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Rear Axle 5R3501101J
- 1Rear Axle 5R3501101K
- 1Rear Axle 5R3501101L
- 1Rear Axle 5R3501101N
- 1Rear Axle 5R3501101P
- 1Rear Axle 5R3501102F
- 1Rear Axle 5R3501102G
- 2Track Rod 5R3501529C
- 3Bolt N10500802
- 3Bolt N10770801
- 4Part N10335304
- 6Washer 1K0505193
- 7Console 2K7501337
- 8Screw N10831701
- 10Wheel Hub 3QF501611E
- 10Wheel Hub 5R3501611
- 10Wheel Hub 5R3501611A
- 10Wheel Hub 5WA501611E
- 10Wheel Hub 5WF501611A
- 11Ball Screw WHT004835
- 11Screw 8E0407643A
- 12Part 1J0501249C
- 14Axle GuideRight5R3505224D
- 14Axle GuideRight5R3505224E
- 14Axle GuideLeft5R3505223D
- 14Axle GuideLeft5R3505223E
- 15Bolt N10628301
- 16Collar Nut N0150816
- 17Bolt N91039802
- 20Axle Guide 5R3505237C
- 20Axle Guide 5R3505237D
- 20Axle Guide 5R3505237B
- 21Bolt N10628601
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 5 August 2024; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5R3501101M Volkswagen Heat Protection Sleeve | Genuine OEM is fitted on: Caddy Maxi Kombi 2020-2024.
