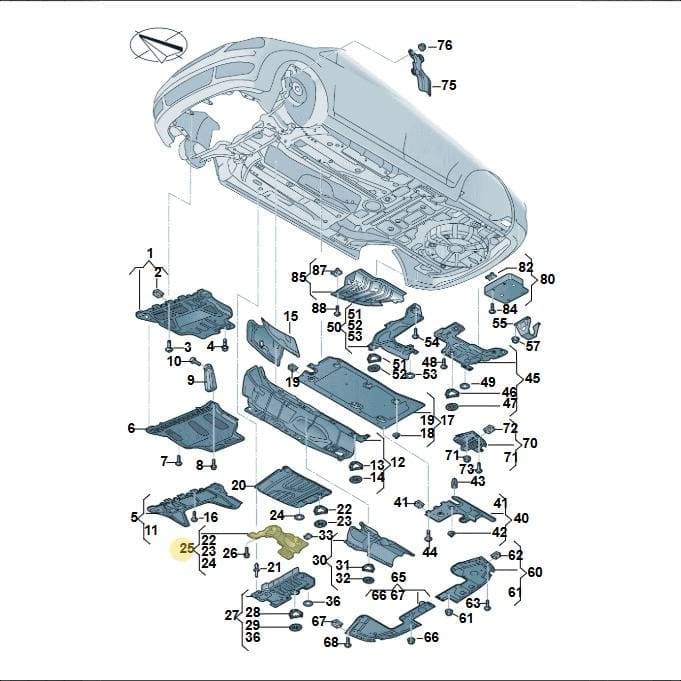

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Center Silencer Heat Shield, part number 5R3825756B. This heat shield protects underbody components from the heat emitted by the center exhaust silencer. It is located in the exhaust system. The part weighs 0.157 kg and has dimensions of 0.535m x 0.29m x 0.08m. Genuine OEM heat shields are precisely shaped to ensure proper fitment and effective heat deflection, maintaining factory-level protection.
Catalogue entry: HEAT SH..
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 53.5 × 29 × 8 cm
- Shipping weight
- 0.16 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1X1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleHeat Shelf For Centre Silencer — locate 5R3825756B Volkswagen Center Silencer Heat Shield | Exhaust in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Insulation 3Q0825236C
- 1Insulation 3Q0825236D
- 2Part N90959101
- 3Bolt N90974701
- 4Bolt WHT000729A
- 5Insulation 3Q0825235A
- 6UnderrunLeft3Q0825901B
- 6UnderrunRight3Q0825902B
- 8Bolt N0195307
- 9Bracket MtLeft5Q0825921
- 9Bracket MtRight5Q0825922A
- 10Bolt N10574702
- 12Heat Sh 5R3825661D
- 12Heat Sh 5R3825661F
- 12Heat Sh 5R3825661G
- 12Heat Sh 5R3825661J
- 12Heat Sh 5R3825661K
- 13Washer WHT007663
- 14Washer N90796502
- 15Insulation 5QA825635
- 17TrimRight5R3825202A
- 17TrimRight5R3825202B
- 17TrimLeft5R3825201B
- 17TrimLeft5R3825201C
- 18Collar Nut WHT000713
- 20Trim 5QA825230
- 21Spring Rivet WHT008023
- 24Washer WHT001156
- 26Screw N10870601
- 27Heat Sh 5R3825611C
- 27Heat Sh 5R3825611D
- 27Heat Sh 5R3825611E
- 30Heat Sh 5R3825613B
- 40TrimLeft5R3825101H
- 40TrimLeft5R3825101L
- 40TrimRight5R3825102F
- 40TrimRight5R3825102G
- 40TrimRight5R3825102H
- 40TrimRight5R3825102J
- 40TrimRight5R3825102M
- 40TrimRight5R3825102N
- 40TrimRight5R3825102P
- 40TrimRight5R3825102Q
- 40TrimLeft5R3825101F
- 43Part WHT004694
- 45Heat Sh 5R3825701C
- 45Heat Sh 5R3825701D
- 45Heat Sh 5R3825701E
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
5R3825756B Volkswagen Center Silencer Heat Shield | Exhaust is fitted on: Caddy Maxi Kombi 2020-2024.
