6Q0820103D Evaporator With Expansion Valve
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 1–6 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 1–6 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

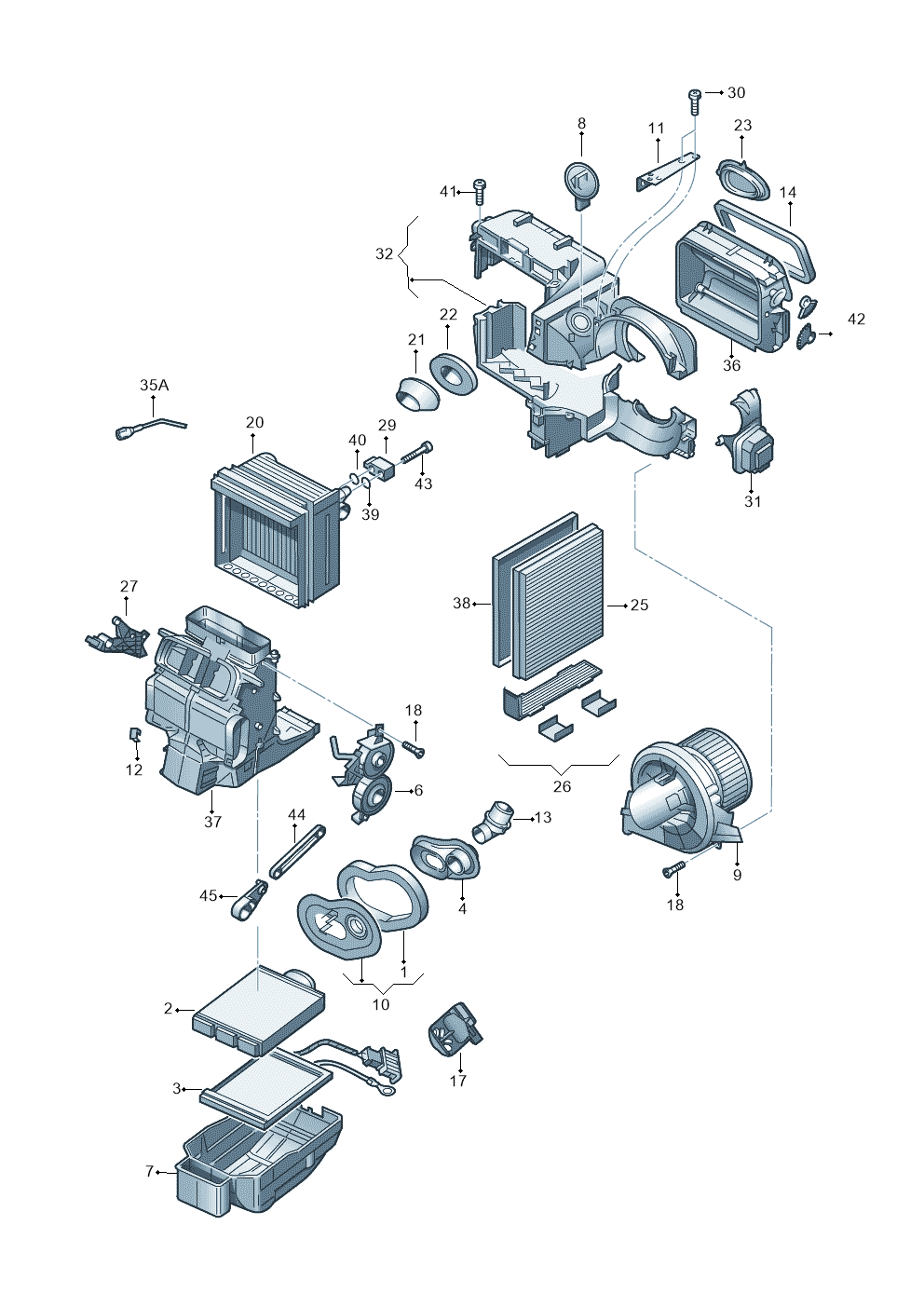

9 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Seal 6Q0820129
- 2Heat Exch 6Q0819031
- 2Heat Exch 6R0819031
- 3Heat Element 6R0963235
- 4Grommet 6Q2820609
- 4Grommet 6Q1820609
- 6Actuator 6Q0819133
- 7Housing 6Q0819875C
- 7Housing 6Q0819875D
- 8Resistance 6Q0959263A
- 9Blower 6Q1819015J
- 9Blower 6Q2819015J
- 10Bracket 6Q2819750
- 10Bracket 6Q1819750
- 11Bracket 6Q2815135A
- 11Bracket 6Q1815135A
- 12Clip 8D1820245
- 13Valve 6Q2820120
- 13Valve 6Q1820120
- 14Seal 6Q0819165A
- 17R Bracket 6Q0819549
- 18Bolt N90732102
- 21Seal 6Q0820139
- 22Seal 6Q1820061
- 22Seal 6Q0820061
- 23Grommet 6Q0820751
- 25Dust Filt 6R0819653
- 25Part JZW819653F
- 25Pollen Fil 6Q0820367B
- 26Cover 6R1819422A
- 26Cover 6R2819422
- 27Element 6Q0819134
- 29Expans Val 6Q0820679F
- 30Screw N90729002
- 31Motor 6Q2819453C
- 31Motor 6Q1819453D
- 32Housing 6R2820007
- 32Housing 6R1820007
- 35ATemperature Sensor 6Q0907543F
- 36Int Duct 6Q2819303A
- 36Int Duct 6Q1819303A
- 37Housing 6Q1819351A
- 37Housing 6Q2819351A
- 39Seal Ring 7H0820749
- 40Seal Ring 7D0820749
- 42Actuator 8Z2819133
- 42Actuator 8Z1819133
- 43Screw N10476301
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Ibiza Reference | 2011-2012 | 20 | 1 | |
| Roomster | 2010-2015 | 20 | 1 | |
| Audi A1 Sportback | 2010-2015 | 20 | 1 | D |
| Fabia Scout | 2010-2014 | 20 | 1 | |
| Polo | 2009-2012 | 20 | 1 | |
| Ibiza Reference | 2008-2011 | 20 | 1 | |
| POLO | 2005- | 20 | 1 | L0L,L0R,2V1,2V5,7E0,7E6,9AP |
| IBIZA 06> | 2005- | 20 | ||
| FABIA/COMBI 05> | 2004- | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: Ibiza Reference 2011-2012; Roomster 2010-2015; Audi A1 Sportback 2010-2015; Fabia Scout 2010-2014; Polo 2009-2012; Ibiza Reference 2008-2011; POLO 2005-; IBIZA 06> 2005-; FABIA/COMBI 05> 2004-.
